DIODESDatasheet (PDF)

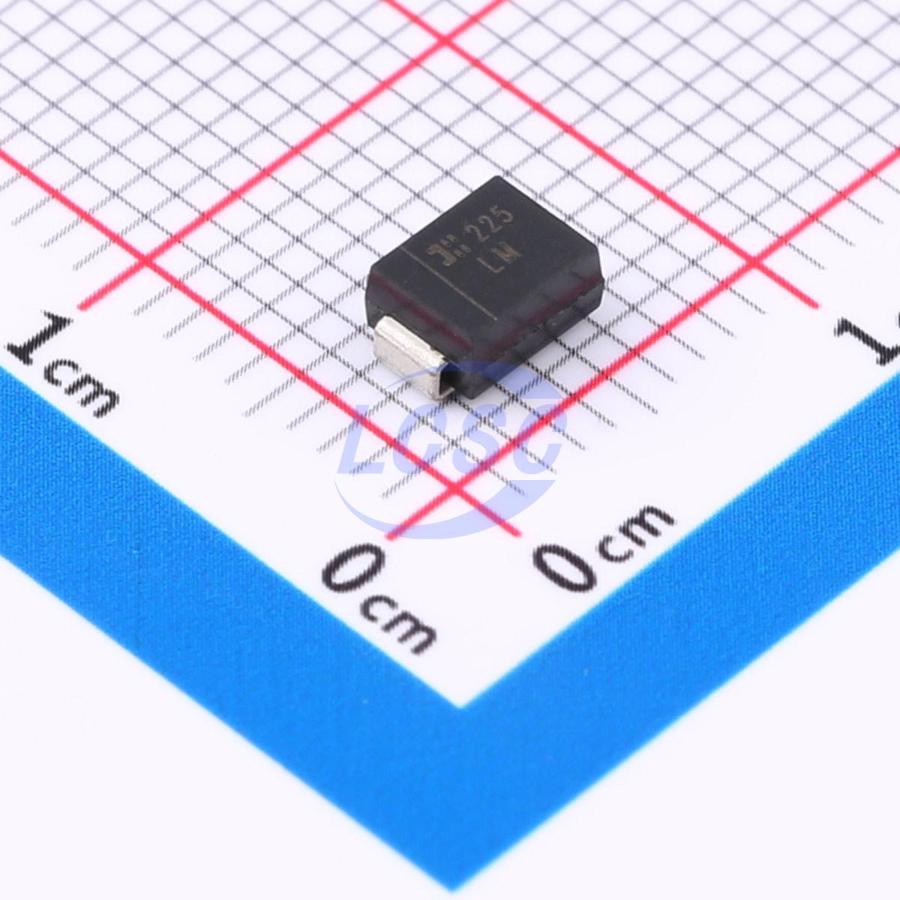

SMBJ15AQ-13-F
24.4VC Clamp 24A Ipp TVS DIODE SMB
SMBROHS3 CompliantActive
TVS DIODE 15VWM 24.4VC SMB
- Manufacturer
- DIODES
- Manufacturer part #
- SMBJ15AQ-13-F
- Store part #
- C1974833
- Package / case
- SMB
- Category
- TVS Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
25 in stock
#C1974833
Stock & price checked 7 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹38.17 | ₹190.85 |
| 50+ | ₹31.57 | ₹1,578.50 |
| 150+ | ₹28.74 | ₹4,311.00 |
| 500+ | ₹25.20 | ₹12,600.00 |
| 3,000+ | ₹23.63 | ₹70,890.00 |
| 6,000+ | ₹22.68 | ₹1,36,080.00 |
5 × ₹38.17
₹190.85
excl. GST
₹225.20 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
SMBJ15AQ-13-F
₹190.85 for 5 + GST
Specifications
- Clamping Voltage
- 24.4V
- Operating Temperature
- -55℃~+150℃
- Peak Pulse Current (Ipp)
- 24A
- Peak Pulse Power Dissipation (Ppp)
- 600W
- Number of Channels
- 1
- Voltage - Breakdown
- 19.2V
- type
- TVS
- Polarity
- Unidirectional
- Reverse Leakage Current (Ir)
- 5uA
- Reverse Stand-Off Voltage (Vrwm)
- 15V
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.168 g
Overview
Suitable to protect sensitive automotive circuits against surges defined in ISO7637 - 2 and against electrostatic discharges according to ISO10605.
Key features
- 600W Peak Pulse Power Dissipation
- 5V to 200V Standoff Voltages
- Glass Passivated Die Construction
- Unidirectional and Bidirectional Versions Available
- Excellent Clamping Capability
- Lead - Free Finish; RoHS Compliant
- Halogen and Antimony Free. "Green" Device
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | SMBJ15A-13-F#C135046DIODES · SMB | DIODES | SMB | 2,985 | ₹30.39 · 2,985 in stock | View |
 | SMBJ15A#C5353261FOSAN · SMB(DO-214AA) | FOSAN | SMB(DO-214AA) | 5,640 | ₹5.13 · 5,640 in stock | View |
 | SZ1SMB15AT3G#C1976386Littelfuse · SMB | Littelfuse | SMB | 200 | ₹46.23 · 200 in stock | View |
 | SMBJ15A#C19077569R+O · DO-214AA(SMB) | R+O | DO-214AA(SMB) | 2,495 | ₹7.34 · 2,495 in stock | View |
 | SMBJ15A#C908796GOODWORK · DO-214AA(SMB) | GOODWORK | DO-214AA(SMB) | 67,220 | ₹5.74 · 67,220 in stock | View |
