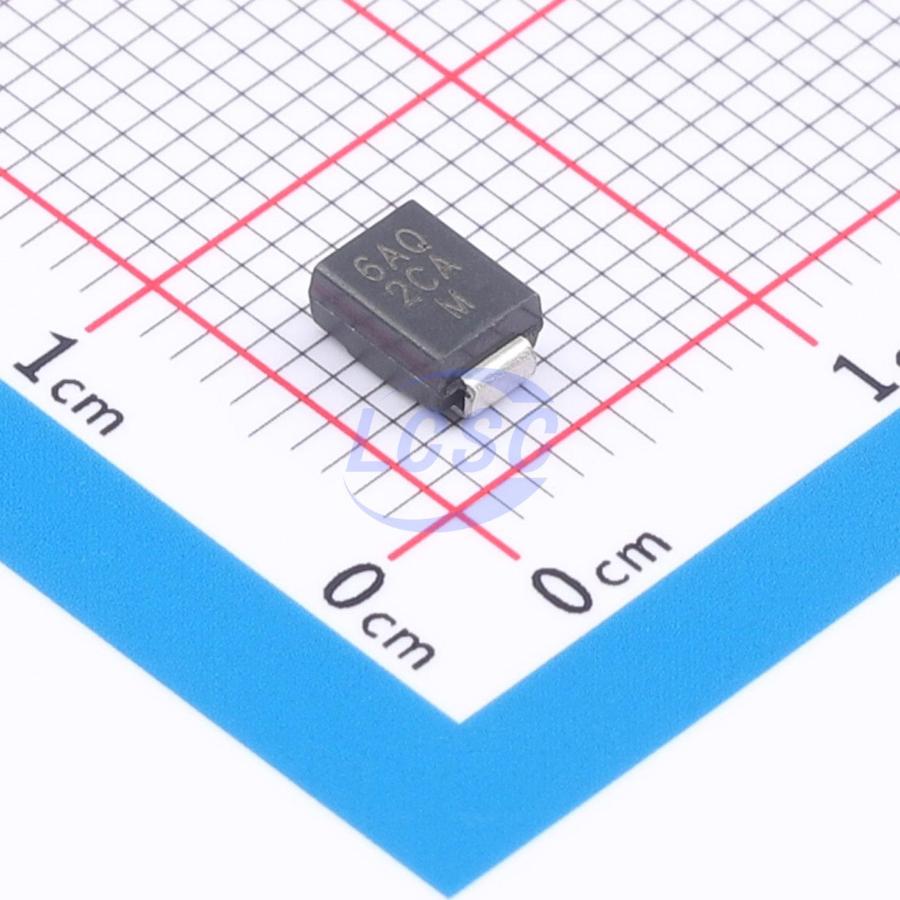

SMBJ15CD-M3/H
24VC Clamp 25A@10/1000us Ipp TVS DIODE DO-214AA(SMBJ)
DO-214AA(SMBJ)ROHS3 CompliantActive
TVS DIODE 15VWM 24VC DO-214AA(SMBJ)
- Manufacturer
- VISHAY
- Manufacturer part #
- SMBJ15CD-M3/H
- Store part #
- C1973750
- Package / case
- DO-214AA(SMBJ)
- Category
- TVS Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
5 in stock
#C1973750
Stock & price checked 4 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹6.18 | ₹30.90 |
| 50+ | ₹6.05 | ₹302.50 |
| 150+ | ₹5.97 | ₹895.50 |
| 750+ | ₹5.87 | ₹4,402.50 |
5 × ₹6.18
₹30.90
excl. GST
₹36.46 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 750 per reel
SMBJ15CD-M3/H
₹30.90 for 5 + GST
Specifications
- Clamping Voltage
- 24V
- Operating Temperature
- -55℃~+150℃
- Peak Pulse Current (Ipp)
- 25A@10/1000us
- Peak Pulse Power Dissipation (Ppp)
- 600W@10/1000us
- Number of Channels
- 1
- Voltage - Breakdown
- 18.2V
- type
- TVS
- Polarity
- Bidirectional
- Reverse Leakage Current (Ir)
- 500nA
- Reverse Stand-Off Voltage (Vrwm)
- 15V
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 750 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.001 g
Overview
Applications
- Use in sensitive electronics protection against voltage transients induced by inductive load switching and lighting on ICs, MOSFETs, signal lines of sensor units for consumer, computer, industrial, and telecommunication.
Key features
- Low profile package
- Ideal for automated placement
- ±3.5%: very tight VBR tolerance
- Low leakage current
- Available in unidirectional and bidirectional
- 600 W peak pulse power capability with a 10/1000 μs waveform, repetitive rate (duty cycle): 0.01%
- Excellent clamping capability
- Very fast response time
- Low incremental surge resistance
- Meets MSL level 1, per J-STD-020, LF maximum peak of 260℃
