TECH PUBLICDatasheet (PDF)

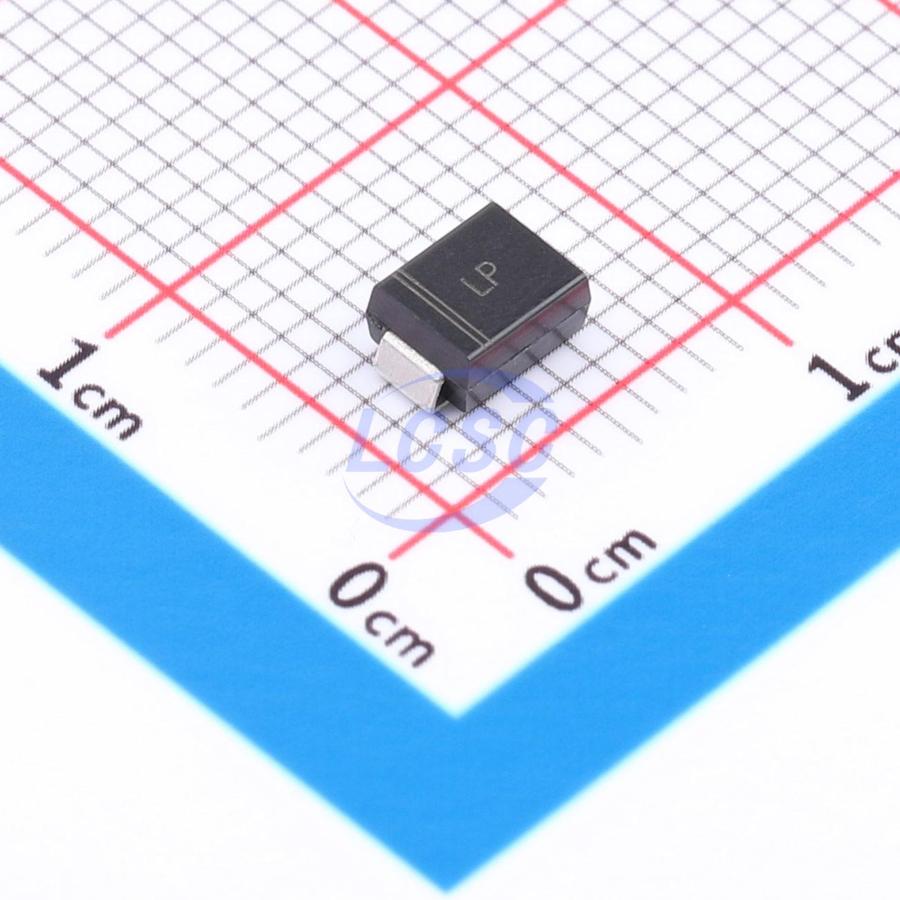

SMBJ16A
26V 23.1A@10/1000us 600W@10/1000us 19.7V Unidirectional 16V SMB TVS Diodes RoHS
SMBROHS CompliantActive
16VWM 26VC SMB
- Manufacturer
- TECH PUBLIC
- Manufacturer part #
- SMBJ16A
- Store part #
- C51939602
- Package / case
- SMB
- Category
- TVS Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
940 in stock
#C51939602
Stock & price checked 8 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 10+ | ₹5.34 | ₹53.40 |
| 100+ | ₹4.21 | ₹421.00 |
| 300+ | ₹3.64 | ₹1,092.00 |
| 3,000+ | ₹3.21 | ₹9,630.00 |
| 6,000+ | ₹2.87 | ₹17,220.00 |
| 9,000+ | ₹2.70 | ₹24,300.00 |
10 × ₹5.34
₹53.40
excl. GST
₹63.01 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
SMBJ16A
₹53.40 for 10 + GST
Specifications
- Clamping Voltage
- 26V
- Operating Temperature
- -55℃~+150℃
- Peak Pulse Current (Ipp)
- 23.1A@10/1000us
- Peak Pulse Power Dissipation (Ppp)
- 600W@10/1000us
- Number of Channels
- 1
- Voltage - Breakdown
- 19.7V
- type
- TVS
- Polarity
- Unidirectional
- Reverse Leakage Current (Ir)
- 1uA
- Reverse Stand-Off Voltage (Vrwm)
- 16V
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 10 (multiples of 10)
- Unit weight
- 0.234 g
Overview
Key features
- Pulse peak power (P_PP) 600W
- Reverse working voltage (V_RWM) 5.0V - 440V
- Glass passivated die
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | TPSMBJ16A#C51939671TECH PUBLIC · SMB | TECH PUBLIC | SMB | 2,980 | ₹5.32 · 2,980 in stock | View |
 | SMBJ17A#C53278467TECH PUBLIC · SMB | TECH PUBLIC | SMB | 5,350 | ₹5.85 · 5,350 in stock | View |
 | SMBJ15A#C42370523TECH PUBLIC · DO-214AA(SMB) | TECH PUBLIC | DO-214AA(SMB) | 1,260 | ₹5.04 · 1,260 in stock | View |
 | TPSMBJ15A#C42370569TECH PUBLIC · SMB | TECH PUBLIC | SMB | 2,780 | ₹6.18 · 2,780 in stock | View |
