DIODESDatasheet (PDF)

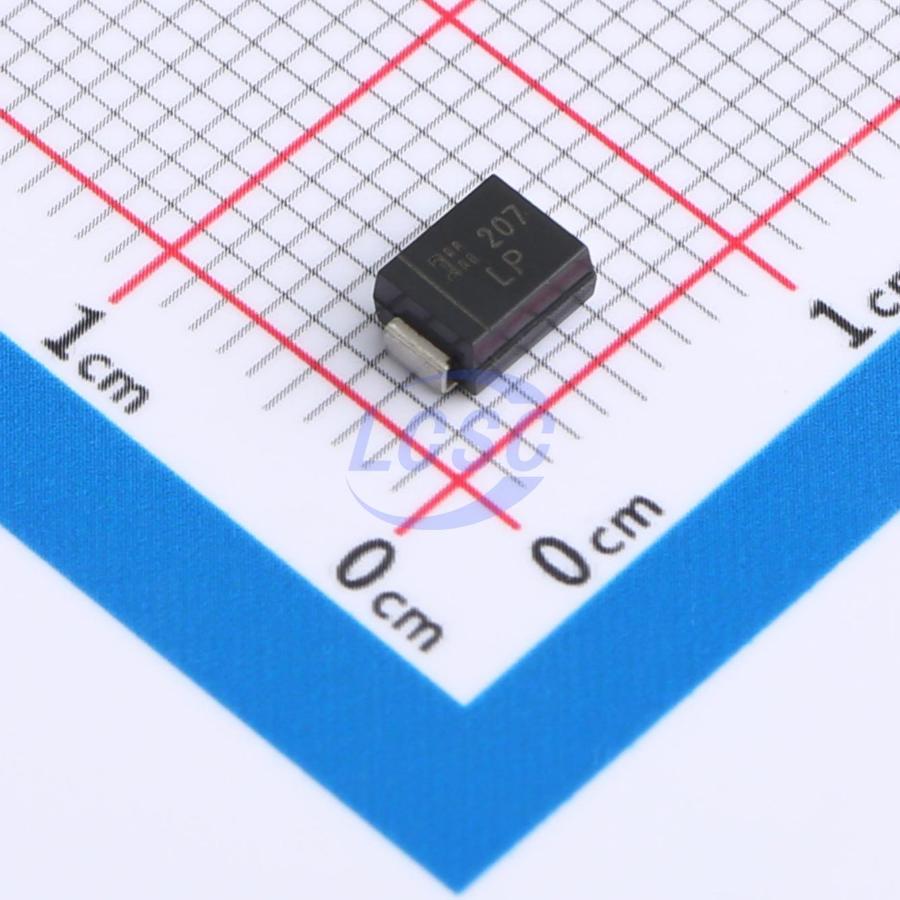

SMBJ16AQ-13-F
26VC Clamp 23.1A@8300us Ipp TVS DIODE SMB
SMBROHS3 CompliantActive
TVS DIODE 16VWM 26VC SMB
- Manufacturer
- DIODES
- Manufacturer part #
- SMBJ16AQ-13-F
- Store part #
- C1974824
- Package / case
- SMB
- Category
- TVS Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
15 in stock
#C1974824
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹33.51 | ₹167.55 |
| 50+ | ₹26.67 | ₹1,333.50 |
| 150+ | ₹23.73 | ₹3,559.50 |
| 500+ | ₹20.07 | ₹10,035.00 |
| 3,000+ | ₹18.44 | ₹55,320.00 |
| 6,000+ | ₹17.46 | ₹1,04,760.00 |
5 × ₹33.51
₹167.55
excl. GST
₹197.71 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
SMBJ16AQ-13-F
₹167.55 for 5 + GST
Specifications
- Clamping Voltage
- 26V
- Operating Temperature
- -55℃~+150℃
- Peak Pulse Current (Ipp)
- 23.1A
- Peak Pulse Power Dissipation (Ppp)
- 600W
- Number of Channels
- 1
- Voltage - Breakdown
- 20.5V
- type
- TVS
- Polarity
- Unidirectional
- Reverse Leakage Current (Ir)
- 5uA
- Reverse Stand-Off Voltage (Vrwm)
- 16V
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.165 g
Overview
Suitable to protect sensitive automotive circuits against surges defined in ISO7637 - 2 and against electrostatic discharges according to ISO10605.
Key features
- 600W Peak Pulse Power Dissipation
- 5V to 200V Standoff Voltages
- Glass Passivated Die Construction
- Unidirectional and Bidirectional Versions Available
- Excellent Clamping Capability
- Lead - Free Finish; RoHS Compliant
- Halogen and Antimony Free. "Green" Device
