DIODESDatasheet (PDF)

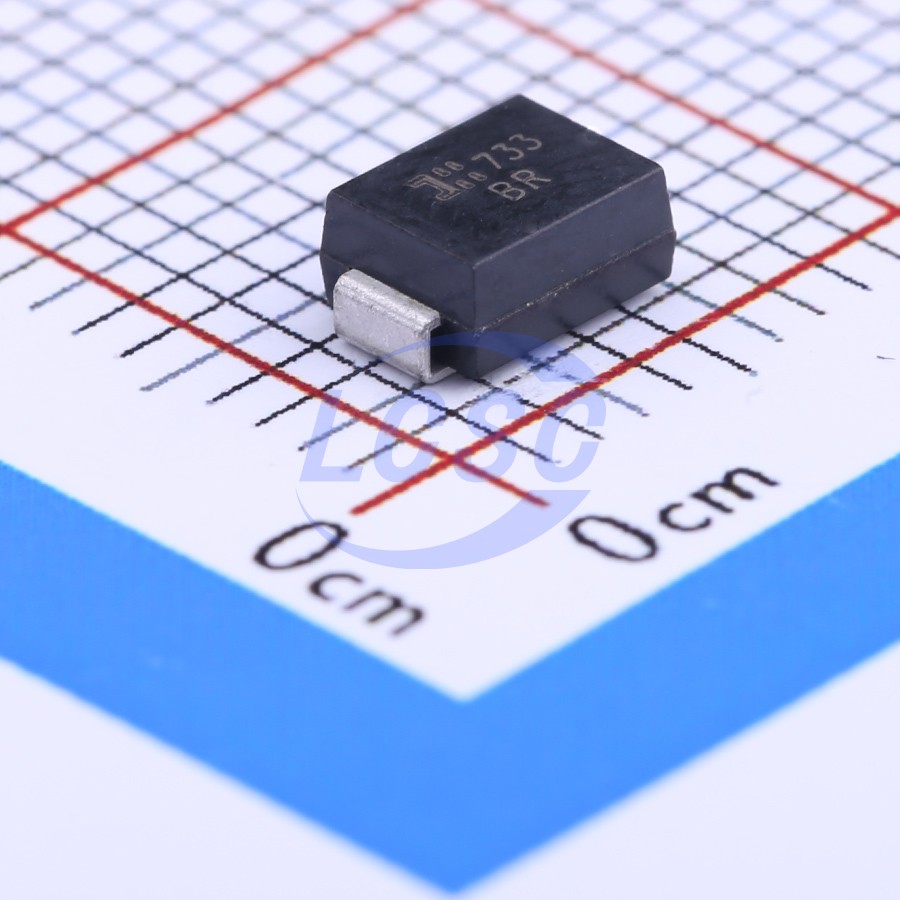

SMBJ17CA-13-F
27.6VC Clamp 21.7A Ipp TVS DIODE SMB
SMBROHS3 CompliantActive
TVS DIODE 17VWM 27.6VC SMB
- Manufacturer
- DIODES
- Manufacturer part #
- SMBJ17CA-13-F
- Store part #
- C135054
- Package / case
- SMB
- Category
- TVS Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
165 in stock
#C135054
Stock & price checked 10 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹21.14 | ₹105.70 |
| 50+ | ₹17.25 | ₹862.50 |
| 150+ | ₹15.31 | ₹2,296.50 |
| 500+ | ₹13.84 | ₹6,920.00 |
| 3,000+ | ₹12.67 | ₹38,010.00 |
| 6,000+ | ₹12.09 | ₹72,540.00 |
5 × ₹21.14
₹105.70
excl. GST
₹124.73 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
SMBJ17CA-13-F
₹105.70 for 5 + GST
Specifications
- Clamping Voltage
- 27.6V
- Operating Temperature
- -55℃~+150℃
- Peak Pulse Current (Ipp)
- 21.7A
- Peak Pulse Power Dissipation (Ppp)
- 600W
- Number of Channels
- 1
- Voltage - Breakdown
- 21.7V
- type
- TVS
- Polarity
- Bidirectional
- Reverse Leakage Current (Ir)
- 5uA
- Reverse Stand-Off Voltage (Vrwm)
- 17V
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.207 g
Overview
Key features
- 600W Peak Pulse Power Dissipation
- 5.0V to 200V Standoff Voltages
- Glass Passivated Die Construction
- Uni- and Bi- Directional Versions Available
- Excellent Clamping Capability
- Lead-Free Finish; RoHS Compliant
- Halogen and Antimony Free. "Green" Device
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | SMBJ17CA#C2943759GOODWORK · DO-214AA(SMB) | GOODWORK | DO-214AA(SMB) | 4,220 | ₹5.36 · 4,220 in stock | View |
 | SMBJ17CA#C9021RUILON · DO-214AA(SMB) | RUILON | DO-214AA(SMB) | 115 | ₹15.21 · 115 in stock | View |
 | SMBJ17CA#C3720411Littelfuse · DO-214AA | Littelfuse | DO-214AA | 665 | ₹18.10 · 665 in stock | View |
 | SMBJ17CA#C1973082BOURNS · SMB(DO-214AA) | BOURNS | SMB(DO-214AA) | 23 | ₹58.46 · 23 in stock | View |
 | SMBJ17CA#C5353212FOSAN · SMB(DO-214AA) | FOSAN | SMB(DO-214AA) | 2,120 | ₹5.17 · 2,120 in stock | View |
