DIODESDatasheet (PDF)

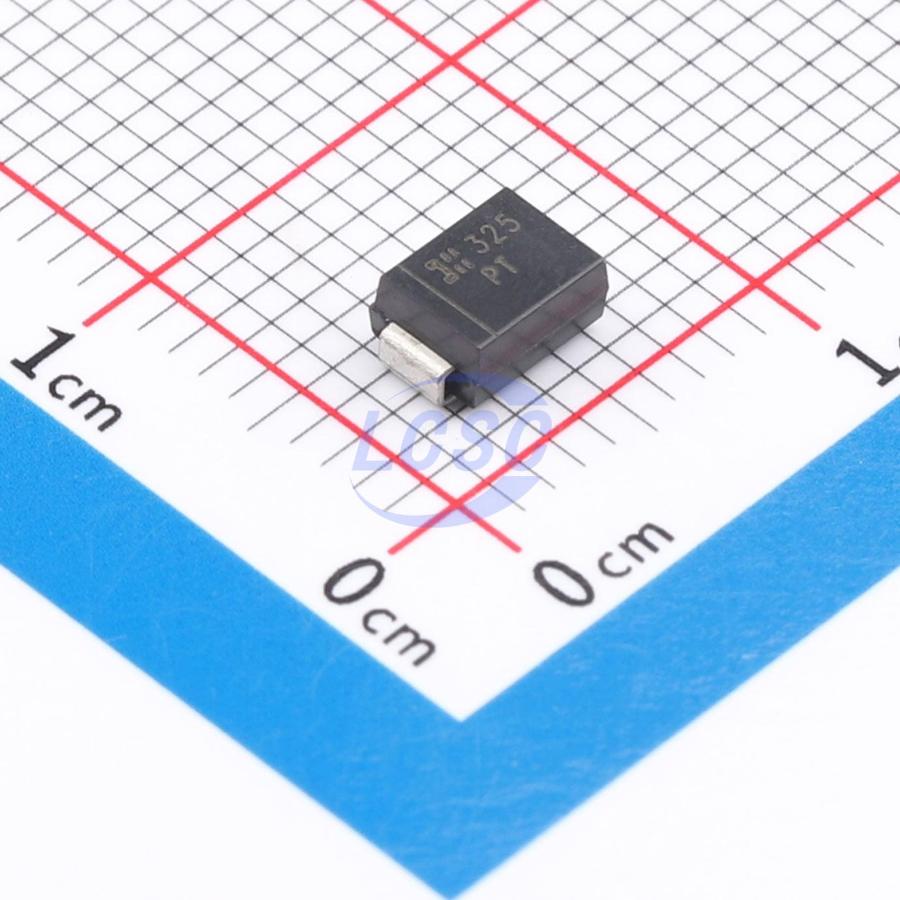

SMBJ180A-13-F
291.6VC Clamp 2.06A Ipp TVS DIODE SMB
SMBROHS3 CompliantActive
TVS DIODE 180VWM 291.6VC SMB
- Manufacturer
- DIODES
- Manufacturer part #
- SMBJ180A-13-F
- Store part #
- C1979168
- Package / case
- SMB
- Category
- TVS Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
230 in stock
#C1979168
Stock & price checked 9 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹131.12 | ₹131.12 |
| 10+ | ₹114.35 | ₹1,143.50 |
| 30+ | ₹106.18 | ₹3,185.40 |
| 100+ | ₹97.81 | ₹9,781.00 |
| 500+ | ₹92.86 | ₹46,430.00 |
| 1,000+ | ₹90.28 | ₹90,280.00 |
1 × ₹131.12
₹131.12
excl. GST
₹154.72 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
SMBJ180A-13-F
₹131.12 for 1 + GST
Specifications
- Clamping Voltage
- 291.6V
- Operating Temperature
- -55℃~+150℃
- Peak Pulse Current (Ipp)
- 2.06A
- Peak Pulse Power Dissipation (Ppp)
- 600W@8/20us
- Number of Channels
- 1
- Voltage - Breakdown
- 200V
- type
- TVS
- Polarity
- Unidirectional
- Reverse Leakage Current (Ir)
- 1uA
- Reverse Stand-Off Voltage (Vrwm)
- 180V
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.28 g
Overview
Key features
- 600W Peak Pulse Power Dissipation
- 5.0V to 200V Standoff Voltages
- Glass Passivated Die Construction
- Uni- and Bi- Directional Versions Available
- Excellent Clamping Capability
- Lead-Free Finish; RoHS Compliant
- Halogen and Antimony Free. "Green" Device
