DIODESDatasheet (PDF)

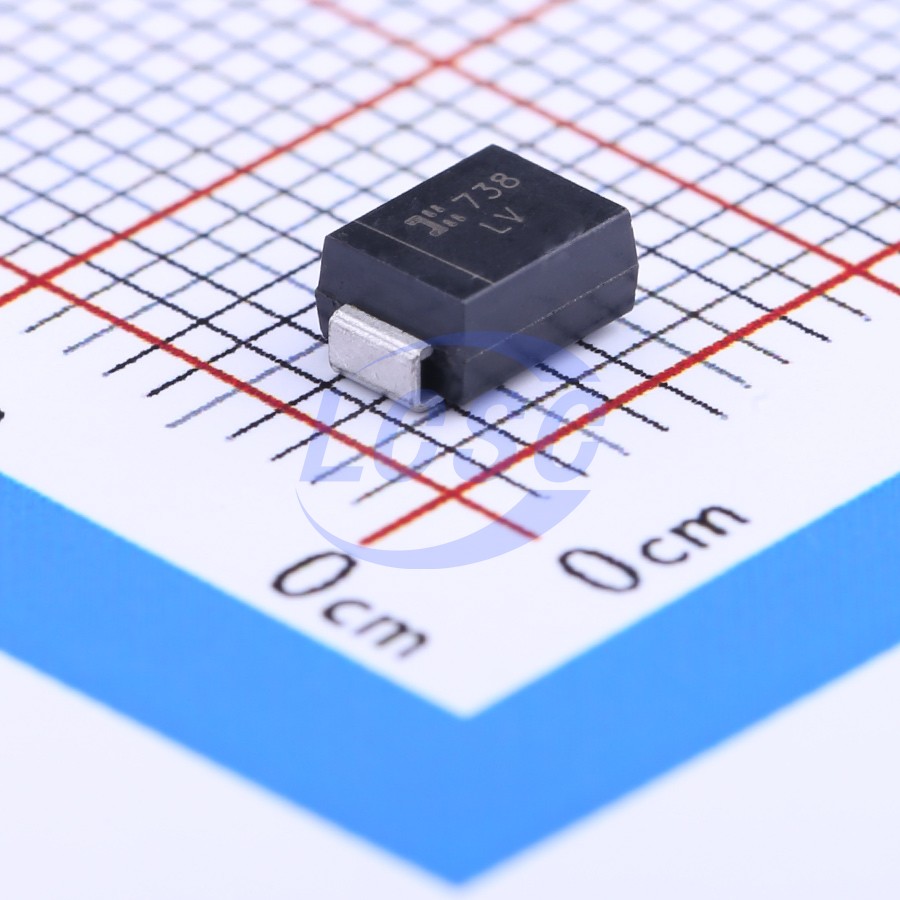

SMBJ20A-13-F
32.4VC Clamp 18.5A Ipp TVS DIODE SMB
SMBROHS3 CompliantActive
TVS DIODE 20VWM 32.4VC SMB
- Manufacturer
- DIODES
- Manufacturer part #
- SMBJ20A-13-F
- Store part #
- C135056
- Package / case
- SMB
- Category
- TVS Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
744 in stock
#C135056
Stock & price checked 8 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹82.52 | ₹82.52 |
| 10+ | ₹67.92 | ₹679.20 |
| 30+ | ₹61.84 | ₹1,855.20 |
| 100+ | ₹53.99 | ₹5,399.00 |
| 500+ | ₹50.51 | ₹25,255.00 |
| 1,000+ | ₹48.55 | ₹48,550.00 |
1 × ₹82.52
₹82.52
excl. GST
₹97.37 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
SMBJ20A-13-F
₹82.52 for 1 + GST
Specifications
- Clamping Voltage
- 32.4V
- Operating Temperature
- -55℃~+150℃
- Peak Pulse Current (Ipp)
- 18.5A
- Peak Pulse Power Dissipation (Ppp)
- 600W
- Number of Channels
- 1
- Voltage - Breakdown
- 25.5V
- type
- TVS
- Reverse Leakage Current (Ir)
- 5uA
- Polarity
- Unidirectional
- Reverse Stand-Off Voltage (Vrwm)
- 20V
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.207 g
Overview
Key features
- 600W Peak Pulse Power Dissipation
- 5.0V to 200V Standoff Voltages
- Glass Passivated Die Construction
- Uni- and Bi- Directional Versions Available
- Excellent Clamping Capability
- Lead-Free Finish; RoHS Compliant
- Halogen and Antimony Free. "Green" Device
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | SMBJ20A#C5353265FOSAN · SMB(DO-214AA) | FOSAN | SMB(DO-214AA) | 2,720 | ₹5.15 · 2,720 in stock | View |
 | SMBJ20A#C19077575R+O · DO-214AA(SMB) | R+O | DO-214AA(SMB) | 20,190 | ₹6.58 · 20,190 in stock | View |
 | SMBJ20A-E3/52#C1973207VISHAY · SMB(DO-214AA) | VISHAY | SMB(DO-214AA) | 855 | ₹19.16 · 855 in stock | View |
 | SMBJ20A#C2760886Slkor · SMB(DO-214AA) | Slkor | SMB(DO-214AA) | 680 | ₹6.97 · 680 in stock | View |
 | SMBJ20A#C2803672SUNMATE Elec · SMB(DO-214AA) | SUNMATE Elec | SMB(DO-214AA) | 1,590 | ₹8.20 · 1,590 in stock | View |
