DIODESDatasheet (PDF)

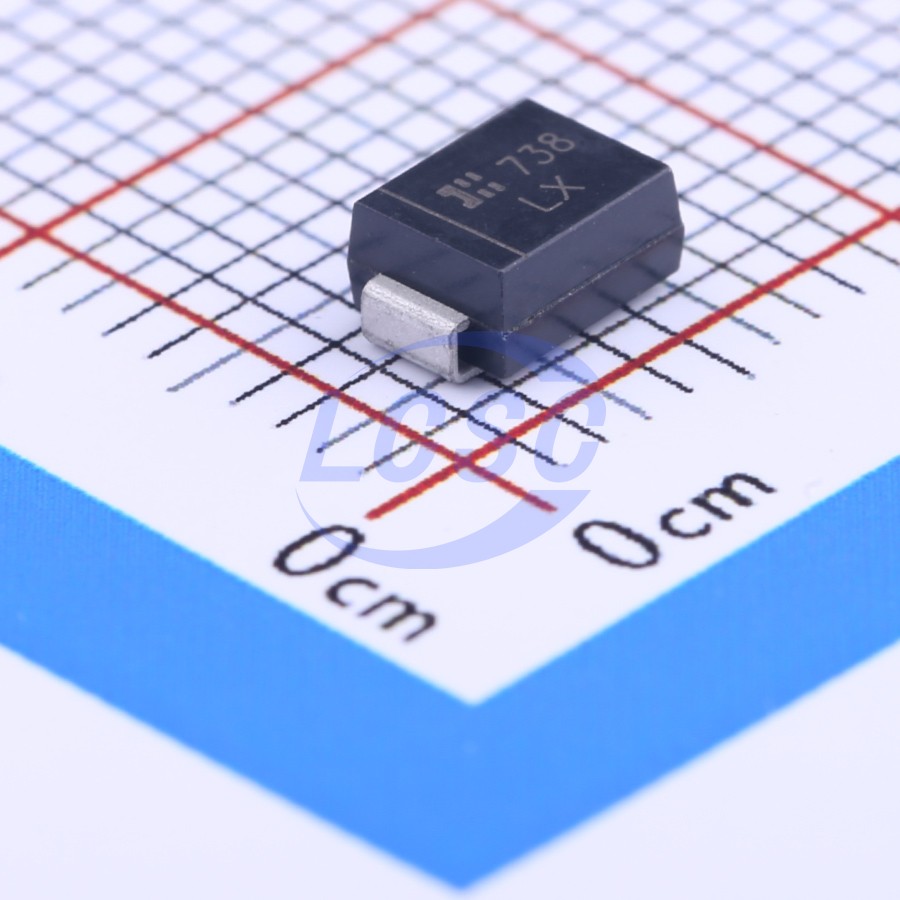

SMBJ22A-13-F
35.5VC Clamp 16.9A@8.3ms Ipp TVS DIODE SMB
SMBROHS3 CompliantActive
TVS DIODE 22VWM 35.5VC SMB
- Manufacturer
- DIODES
- Manufacturer part #
- SMBJ22A-13-F
- Store part #
- C135058
- Package / case
- SMB
- Category
- TVS Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
390 in stock
#C135058
Stock & price checked 9 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹18.92 | ₹94.60 |
| 50+ | ₹18.51 | ₹925.50 |
| 150+ | ₹18.24 | ₹2,736.00 |
| 500+ | ₹17.97 | ₹8,985.00 |
5 × ₹18.92
₹94.60
excl. GST
₹111.63 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
SMBJ22A-13-F
₹94.60 for 5 + GST
Specifications
- Clamping Voltage
- 35.5V
- Operating Temperature
- -55℃~+150℃
- Peak Pulse Current (Ipp)
- 16.9A
- Peak Pulse Power Dissipation (Ppp)
- 600W
- Number of Channels
- 1
- Voltage - Breakdown
- 28V
- type
- TVS
- Polarity
- Unidirectional
- Reverse Leakage Current (Ir)
- 5uA
- Reverse Stand-Off Voltage (Vrwm)
- 22V
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.207 g
Overview
Key features
- 600W Peak Pulse Power Dissipation
- 5.0V to 200V Standoff Voltages
- Glass Passivated Die Construction
- Uni- and Bi- Directional Versions Available
- Excellent Clamping Capability
- Lead-Free Finish; RoHS Compliant
- Halogen and Antimony Free. "Green" Device
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | SMBJ22A#C5353266FOSAN · SMB(DO-214AA) | FOSAN | SMB(DO-214AA) | 3,420 | ₹5.13 · 3,420 in stock | View |
 | SMBJ22A#C49066946R+O · SMB(DO-214AA) | R+O | SMB(DO-214AA) | 10,100 | ₹6.65 · 10,100 in stock | View |
| SZ1SMB22AT3G#C1976383Littelfuse · SMB | Littelfuse | SMB | 1,450 | ₹49.68 · 1,450 in stock | View | |
 | SMBJ22A#C10214RUILON · DO-214AA(SMB) | RUILON | DO-214AA(SMB) | 490 | ₹10.27 · 490 in stock | View |
 | SMBJ22A#C151920BORN · DO-214AA(SMB) | BORN | DO-214AA(SMB) | 8,830 | ₹9.10 · 8,830 in stock | View |
