DIODESDatasheet (PDF)

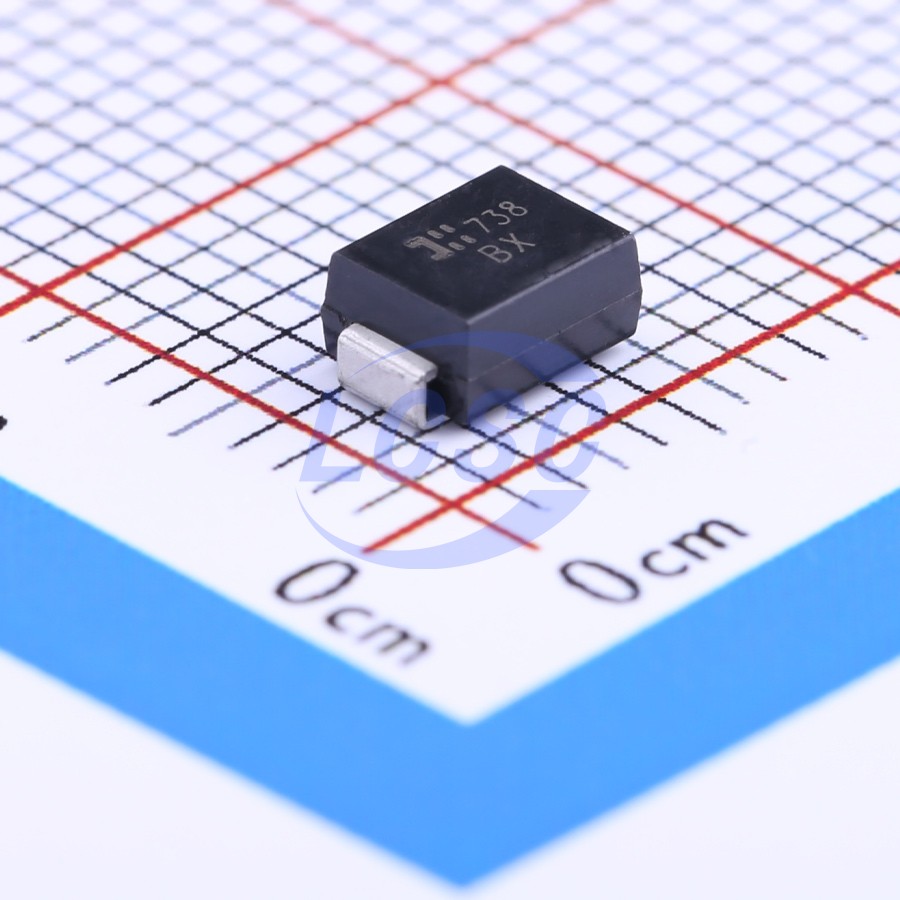

SMBJ22CA-13-F
35.5VC Clamp 16.9A Ipp TVS DIODE SMB
SMBROHS CompliantActive
TVS DIODE 22VWM 35.5VC SMB
- Manufacturer
- DIODES
- Manufacturer part #
- SMBJ22CA-13-F
- Store part #
- C135059
- Package / case
- SMB
- Category
- TVS Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
210 in stock
#C135059
Stock & price checked 7 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹49.71 | ₹248.55 |
| 50+ | ₹40.18 | ₹2,009.00 |
| 150+ | ₹36.10 | ₹5,415.00 |
| 500+ | ₹31.01 | ₹15,505.00 |
| 3,000+ | ₹28.75 | ₹86,250.00 |
| 6,000+ | ₹27.39 | ₹1,64,340.00 |
5 × ₹49.71
₹248.55
excl. GST
₹293.29 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
SMBJ22CA-13-F
₹248.55 for 5 + GST
Specifications
- Clamping Voltage
- 35.5V
- Operating Temperature
- -55℃~+150℃
- Peak Pulse Current (Ipp)
- 16.9A
- Peak Pulse Power Dissipation (Ppp)
- 600W
- Number of Channels
- 1
- Voltage - Breakdown
- 28V
- type
- TVS
- Reverse Leakage Current (Ir)
- 5uA
- Polarity
- Bidirectional
- Reverse Stand-Off Voltage (Vrwm)
- 22V
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.207 g
Overview
Key features
- 600W Peak Pulse Power Dissipation
- 5.0V to 200V Standoff Voltages
- Glass Passivated Die Construction
- Uni- and Bi- Directional Versions Available
- Excellent Clamping Capability
- Lead-Free Finish; RoHS Compliant
- Halogen and Antimony Free. "Green" Device
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | SMBJ22CAQ-13-F#C1975329DIODES · SMB | DIODES | SMB | 1,345 | ₹35.13 · 1,345 in stock | View |
 | SMBJ22CA#C5353215FOSAN · SMB(DO-214AA) | FOSAN | SMB(DO-214AA) | 4,760 | ₹5.23 · 4,760 in stock | View |
 | SMBJ22CA#C143155FMS(Formosa Microsemi) · SMB(DO-214AA) | FMS(Formosa Microsemi) | SMB(DO-214AA) | 10 | ₹9.01 · 10 in stock | View |
 | SMBJ22CA#C19077577R+O · DO-214AA(SMB) | R+O | DO-214AA(SMB) | 2,730 | ₹6.63 · 2,730 in stock | View |
 | SMBJ24CA#C42440470TECH PUBLIC · DO-214AA(SMB) | TECH PUBLIC | DO-214AA(SMB) | 7,810 | ₹5.56 · 7,810 in stock | View |
