SMBJ26AHE3_B/H

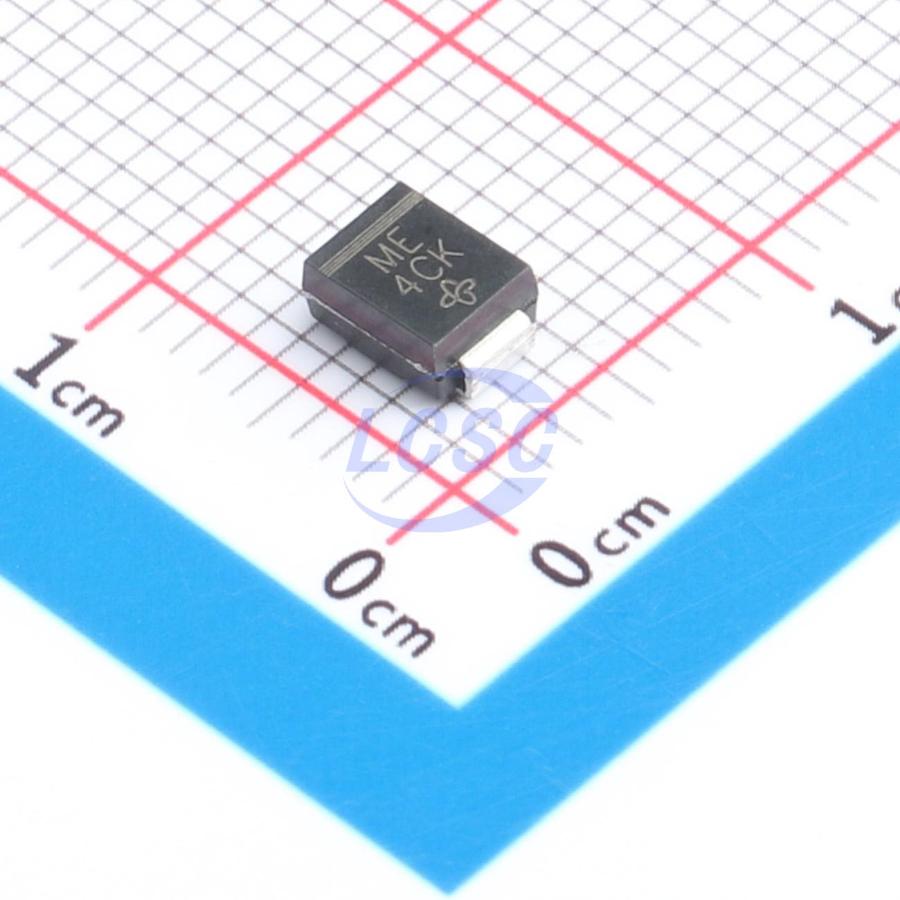

42.1V 14.3A@10/1000us 600W@10/1000us 31.9V Unidirectional 26V DO-214AA(SMB) TVS Diodes RoHS
DO-214AA(SMB)ROHS CompliantActive
- Manufacturer
- VISHAY
- Manufacturer part #
- SMBJ26AHE3_B/H
- Store part #
- C20037731
- Package / case
- DO-214AA(SMB)
- Category
- TVS Diodes
- Packaging
- Bag-packed
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
88 in stock
#C20037731
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹75.45 | ₹75.45 |
| 10+ | ₹74.59 | ₹745.90 |
| 30+ | ₹73.94 | ₹2,218.20 |
| 100+ | ₹73.29 | ₹7,329.00 |
1 × ₹75.45
₹75.45
excl. GST
₹89.03 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 750 per bag
SMBJ26AHE3_B/H
₹75.45 for 1 + GST
Specifications
- Clamping Voltage
- 42.1V
- Operating Temperature
- -55℃~+150℃
- Peak Pulse Current (Ipp)
- 14.3A@10/1000us
- Peak Pulse Power Dissipation (Ppp)
- 600W@10/1000us
- Number of Channels
- 1
- Voltage - Breakdown
- 31.9V
- type
- TVS
- Polarity
- Unidirectional
- Reverse Leakage Current (Ir)
- 1uA
- Reverse Stand-Off Voltage (Vrwm)
- 26V
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Bag-packed
- Standard pack
- 750 / Bag
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 1 g
Overview
Applications
- Use in sensitive electronics protection against voltage transients induced by inductive load switching and lighting on ICs, MOSFET, signal lines of sensor units for consumer, computer, industrial, and telecommunication.
Key features
- Low profile package
- Ideal for automated placement
- Glass passivated chip junction
- Available in unidirectional and bidirectional
- 600 W peak pulse power capability with a 10/1000 μs waveform, repetitive rate (duty cycle): 0.01%
- Excellent clamping capability
- Very fast response time
- Low incremental surge resistance
- Meets MSL level 1, per J-STD-020, LF maximum peak of 260 ℃
- AEC-Q101 qualified available
