DIODESDatasheet (PDF)

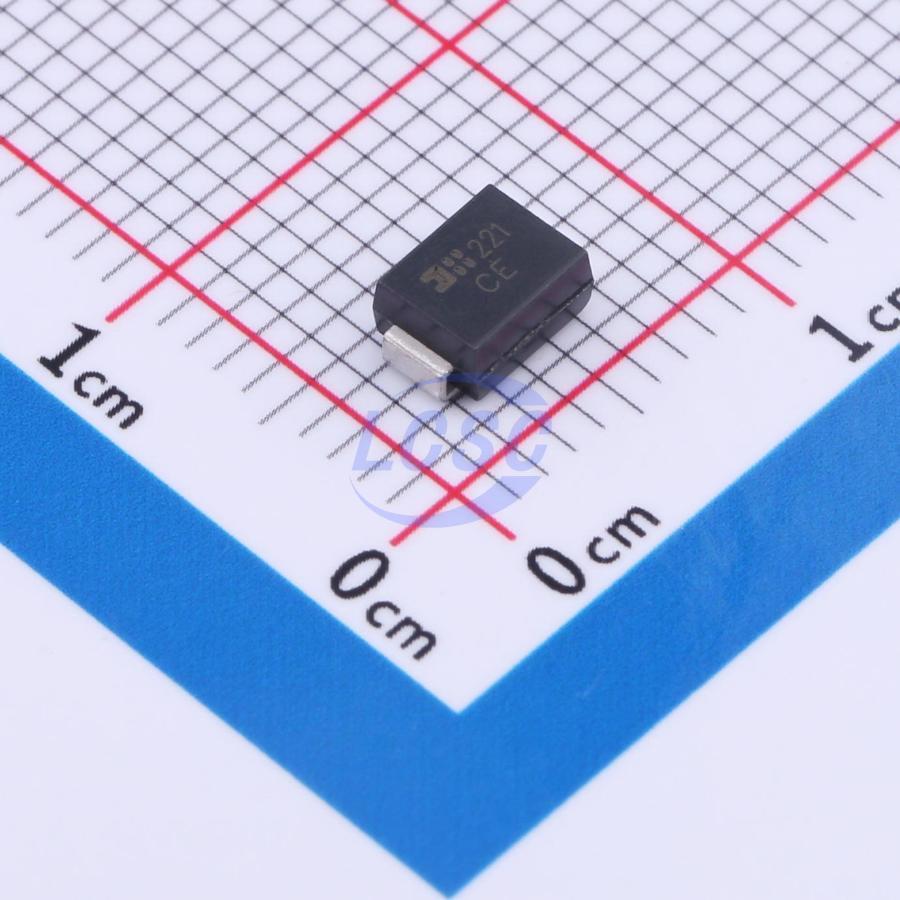

SMBJ26CAQ-13-F
42.1VC Clamp 14.2A Ipp TVS DIODE SMB
SMBROHS3 CompliantActive
TVS DIODE 26VWM 42.1VC SMB
- Manufacturer
- DIODES
- Manufacturer part #
- SMBJ26CAQ-13-F
- Store part #
- C1975327
- Package / case
- SMB
- Category
- TVS Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
210 in stock
#C1975327
Stock & price checked 9 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹39.39 | ₹196.95 |
| 50+ | ₹31.58 | ₹1,579.00 |
| 150+ | ₹28.25 | ₹4,237.50 |
| 500+ | ₹24.08 | ₹12,040.00 |
| 3,000+ | ₹22.21 | ₹66,630.00 |
| 6,000+ | ₹21.10 | ₹1,26,600.00 |
5 × ₹39.39
₹196.95
excl. GST
₹232.40 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
SMBJ26CAQ-13-F
₹196.95 for 5 + GST
Specifications
- Clamping Voltage
- 42.1V
- Operating Temperature
- -55℃~+150℃
- Peak Pulse Current (Ipp)
- 14.2A
- Peak Pulse Power Dissipation (Ppp)
- 600W
- Number of Channels
- 1
- Voltage - Breakdown
- 33.2V
- type
- TVS
- Reverse Leakage Current (Ir)
- 5uA
- Polarity
- Bidirectional
- Reverse Stand-Off Voltage (Vrwm)
- 26V
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.2 g
Overview
Suitable to protect sensitive automotive circuits against surges defined in ISO7637 - 2 and against electrostatic discharges according to ISO10605.
Key features
- 600W Peak Pulse Power Dissipation
- 5V to 200V Standoff Voltages
- Glass Passivated Die Construction
- Unidirectional and Bidirectional Versions Available
- Excellent Clamping Capability
- Lead - Free Finish; RoHS Compliant
- Halogen and Antimony Free. "Green" Device
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | SMBJ26CA-13-F#C135063DIODES · SMB | DIODES | SMB | 5 | ₹55.02 · 5 in stock | View |
 | SMBJ26CA#C5353217FOSAN · SMB(DO-214AA) | FOSAN | SMB(DO-214AA) | 5,420 | ₹5.09 · 5,420 in stock | View |
 | SMBJ26CA#C19077581R+O · DO-214AA(SMB) | R+O | DO-214AA(SMB) | 6,67,930 | ₹7.59 · 6,67,930 in stock | View |
 | SMBJ26CA#C7470963SURGING · DO-214AA | SURGING | DO-214AA | 5,710 | ₹6.18 · 5,710 in stock | View |
 | SMBJ26CA#C908854GOODWORK · DO-214AA(SMB) | GOODWORK | DO-214AA(SMB) | 88,580 | ₹5.37 · 88,580 in stock | View |
