DIODESDatasheet (PDF)

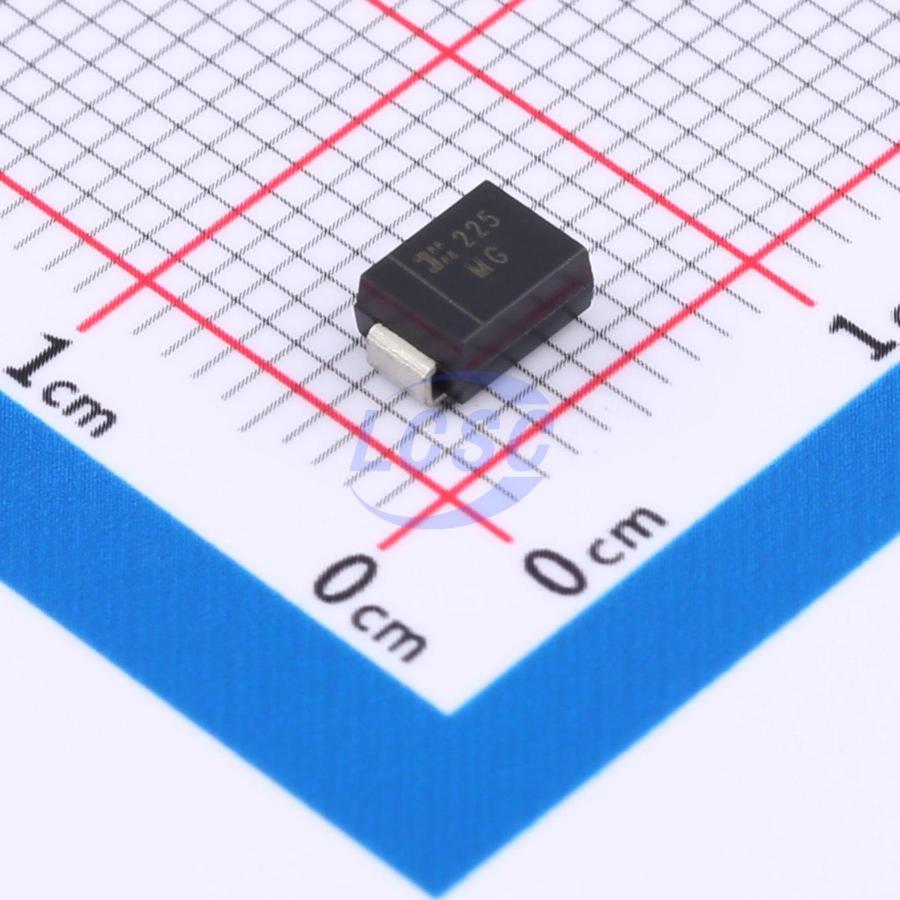

SMBJ28AQ-13-F
45.4VC Clamp 13.2A Ipp TVS DIODE SMB
SMBROHS3 CompliantActive
TVS DIODE 28VWM 45.4VC SMB
- Manufacturer
- DIODES
- Manufacturer part #
- SMBJ28AQ-13-F
- Store part #
- C1974791
- Package / case
- SMB
- Category
- TVS Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
10 in stock
#C1974791
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹17.30 | ₹86.50 |
| 50+ | ₹16.93 | ₹846.50 |
| 150+ | ₹16.68 | ₹2,502.00 |
| 500+ | ₹16.43 | ₹8,215.00 |
5 × ₹17.30
₹86.50
excl. GST
₹102.07 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
SMBJ28AQ-13-F
₹86.50 for 5 + GST
Specifications
- Clamping Voltage
- 45.4V
- Operating Temperature
- -55℃~+150℃
- Peak Pulse Current (Ipp)
- 13.2A
- Peak Pulse Power Dissipation (Ppp)
- 600W
- Number of Channels
- 1
- Voltage - Breakdown
- 35.8V
- type
- TVS
- Polarity
- Unidirectional
- Reverse Leakage Current (Ir)
- 5uA
- Reverse Stand-Off Voltage (Vrwm)
- 28V
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.154 g
Overview
Suitable to protect sensitive automotive circuits against surges defined in ISO7637 - 2 and against electrostatic discharges according to ISO10605.
Key features
- 600W Peak Pulse Power Dissipation
- 5V to 200V Standoff Voltages
- Glass Passivated Die Construction
- Unidirectional and Bidirectional Versions Available
- Excellent Clamping Capability
- Lead - Free Finish; RoHS Compliant
- Halogen and Antimony Free. "Green" Device
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | SMBJ28A#C5353269FOSAN · SMB(DO-214AA) | FOSAN | SMB(DO-214AA) | 1,720 | ₹5.09 · 1,720 in stock | View |
 | SMBJ28A#C19077582R+O · DO-214AA(SMB) | R+O | DO-214AA(SMB) | 25,635 | ₹6.24 · 25,635 in stock | View |
 | P6SMB33A#C7436540FUXINSEMI · DO-214AA(SMB) | FUXINSEMI | DO-214AA(SMB) | 4,710 | ₹6.62 · 4,710 in stock | View |
 | P6SMB33A#C49066967R+O · SMB | R+O | SMB | 1,390 | ₹7.54 · 1,390 in stock | View |
 | SMBJ28A#C41410910DIYI Elec Tech · SMB(DO-214AA) | DIYI Elec Tech | SMB(DO-214AA) | 120 | ₹4.52 · 120 in stock | View |
