DIODESDatasheet (PDF)

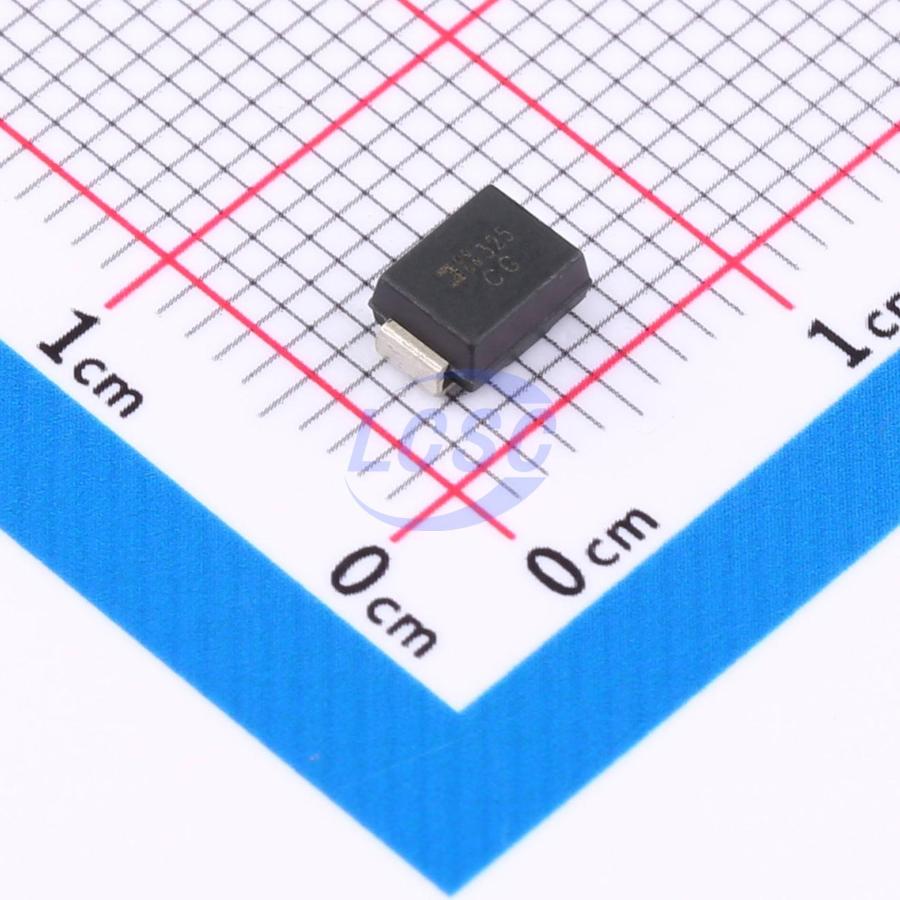

SMBJ28CA-13-F
45.4VC Clamp 13.2A Ipp TVS DIODE SMB
SMBROHS3 CompliantActive
TVS DIODE 28VWM 45.4VC SMB
- Manufacturer
- DIODES
- Manufacturer part #
- SMBJ28CA-13-F
- Store part #
- C135064
- Package / case
- SMB
- Category
- TVS Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,565 in stock
#C135064
Stock & price checked 10 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹36.34 | ₹181.70 |
| 50+ | ₹28.39 | ₹1,419.50 |
| 150+ | ₹24.99 | ₹3,748.50 |
| 500+ | ₹20.73 | ₹10,365.00 |
| 3,000+ | ₹17.87 | ₹53,610.00 |
| 6,000+ | ₹16.74 | ₹1,00,440.00 |
5 × ₹36.34
₹181.70
excl. GST
₹214.41 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
SMBJ28CA-13-F
₹181.70 for 5 + GST
Specifications
- Clamping Voltage
- 45.4V
- Operating Temperature
- -55℃~+150℃
- Peak Pulse Current (Ipp)
- 13.2A
- Peak Pulse Power Dissipation (Ppp)
- 600W
- Number of Channels
- 1
- Voltage - Breakdown
- 35.8V
- type
- TVS
- Polarity
- Bidirectional
- Reverse Leakage Current (Ir)
- 5uA
- Reverse Stand-Off Voltage (Vrwm)
- 28V
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.207 g
Overview
Key features
- 600W Peak Pulse Power Dissipation
- 5.0V to 200V Standoff Voltages
- Glass Passivated Die Construction
- Uni- and Bi- Directional Versions Available
- Excellent Clamping Capability
- Lead-Free Finish; RoHS Compliant
- Halogen and Antimony Free. "Green" Device
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | SMBJ28CA#C151259Littelfuse · DO-214AA | Littelfuse | DO-214AA | 6,825 | ₹23.22 · 6,825 in stock | View |
 | SMBJ28CA#C2976674RUILON · DO-214AA(SMB) | RUILON | DO-214AA(SMB) | 3,585 | ₹11.11 · 3,585 in stock | View |
 | SMBJ28CA#C115825MDD(Microdiode Semiconductor) · DO-214AA(SMB) | MDD(Microdiode Semiconductor) | DO-214AA(SMB) | 50,230 | ₹7.25 · 50,230 in stock | View |
 | SMBJ28CA#C2760885Slkor · SMB(DO-214AA) | Slkor | SMB(DO-214AA) | 10 | ₹6.79 · 10 in stock | View |
| SMBJ28CA#C3719525Taiwan Semiconductor · DO-214AA(SMB) | Taiwan Semiconductor | DO-214AA(SMB) | 521 | ₹67.94 · 521 in stock | View | |
