DIODESDatasheet (PDF)

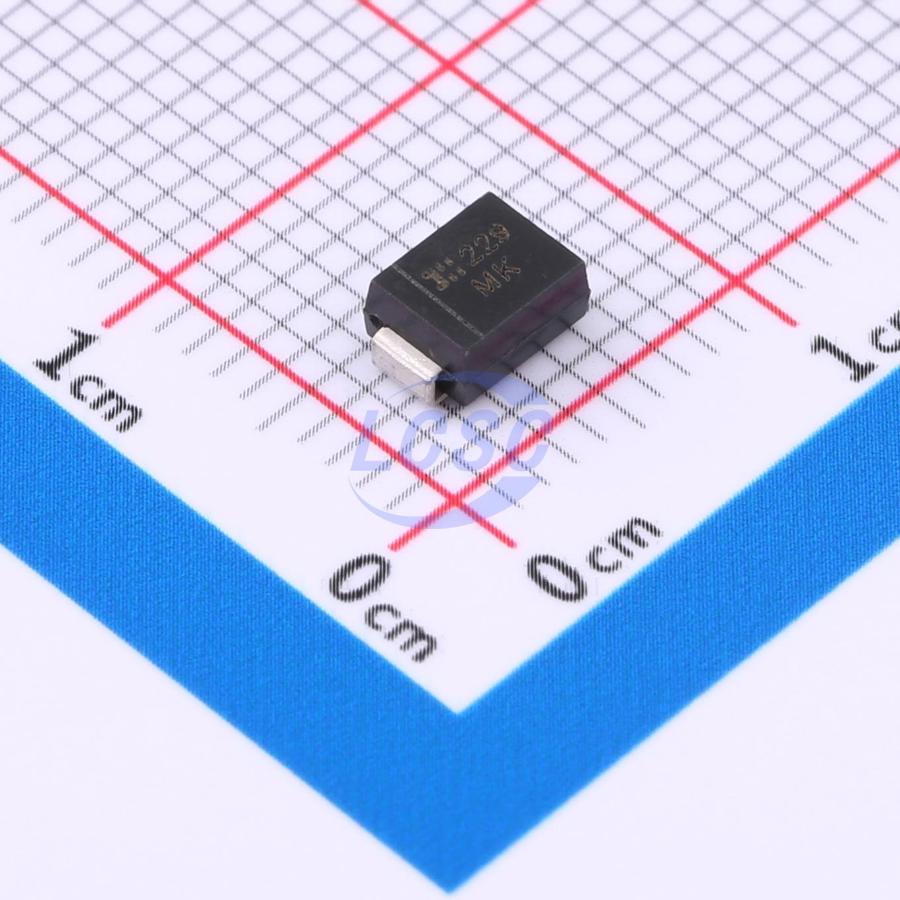

SMBJ30AQ-13-F
48.4VC Clamp 12.4A Ipp TVS DIODE SMB
SMBROHS3 CompliantActive
TVS DIODE 30VWM 48.4VC SMB
- Manufacturer
- DIODES
- Manufacturer part #
- SMBJ30AQ-13-F
- Store part #
- C1976461
- Package / case
- SMB
- Category
- TVS Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
50 in stock
#C1976461
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹58.68 | ₹58.68 |
| 10+ | ₹46.73 | ₹467.30 |
| 30+ | ₹41.52 | ₹1,245.60 |
| 100+ | ₹34.99 | ₹3,499.00 |
| 500+ | ₹32.16 | ₹16,080.00 |
| 1,000+ | ₹30.43 | ₹30,430.00 |
1 × ₹58.68
₹58.68
excl. GST
₹69.24 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
SMBJ30AQ-13-F
₹58.68 for 1 + GST
Specifications
- Clamping Voltage
- 48.4V
- Operating Temperature
- -55℃~+150℃
- Peak Pulse Current (Ipp)
- 12.4A
- Peak Pulse Power Dissipation (Ppp)
- 600W
- Number of Channels
- 1
- Voltage - Breakdown
- 38.3V
- type
- TVS
- Reverse Leakage Current (Ir)
- 5uA
- Polarity
- Unidirectional
- Reverse Stand-Off Voltage (Vrwm)
- 30V
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.173 g
Overview
Suitable to protect sensitive automotive circuits against surges defined in ISO7637 - 2 and against electrostatic discharges according to ISO10605.
Key features
- 600W Peak Pulse Power Dissipation
- 5V to 200V Standoff Voltages
- Glass Passivated Die Construction
- Unidirectional and Bidirectional Versions Available
- Excellent Clamping Capability
- Lead - Free Finish; RoHS Compliant
- Halogen and Antimony Free. "Green" Device
