DIODESDatasheet (PDF)

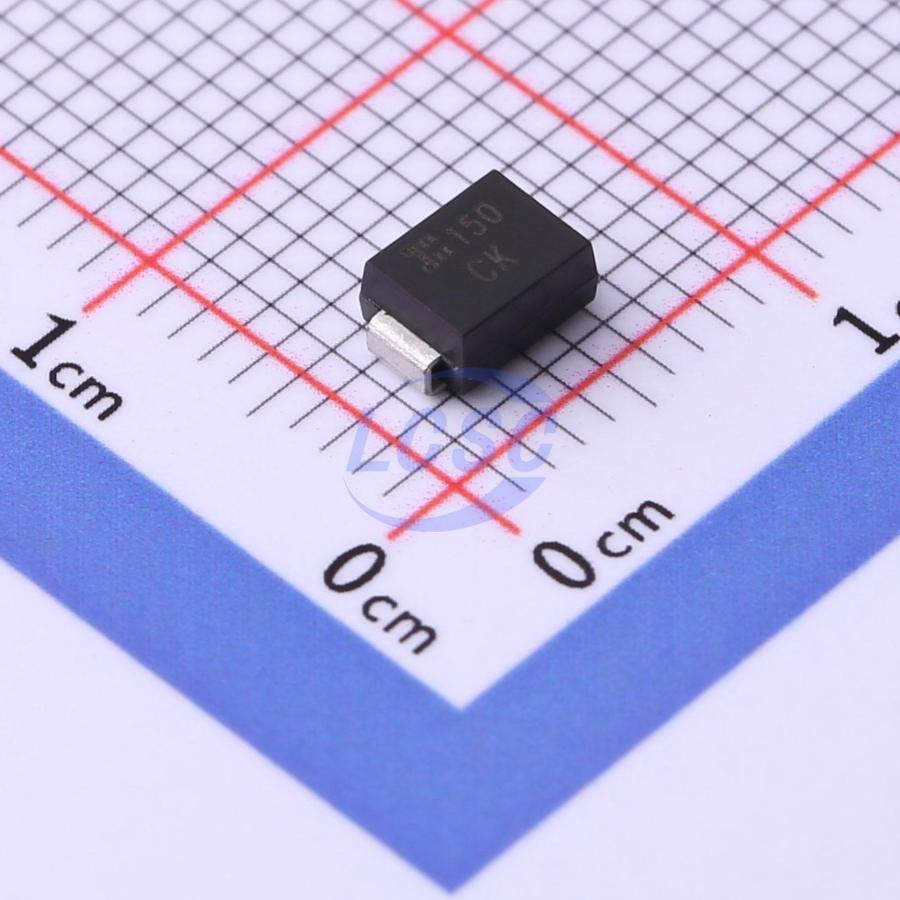

SMBJ30CAQ-13-F
48.4VC Clamp 12.4A Ipp TVS DIODE SMB
SMBROHS3 CompliantActive
TVS DIODE 30VWM 48.4VC SMB
- Manufacturer
- DIODES
- Manufacturer part #
- SMBJ30CAQ-13-F
- Store part #
- C3001606
- Package / case
- SMB
- Category
- TVS Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
47 in stock
#C3001606
Stock & price checked 9 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹58.33 | ₹58.33 |
| 10+ | ₹46.41 | ₹464.10 |
| 30+ | ₹41.20 | ₹1,236.00 |
| 100+ | ₹34.91 | ₹3,491.00 |
| 500+ | ₹31.88 | ₹15,940.00 |
| 1,000+ | ₹30.14 | ₹30,140.00 |
1 × ₹58.33
₹58.33
excl. GST
₹68.83 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
SMBJ30CAQ-13-F
₹58.33 for 1 + GST
Specifications
- Clamping Voltage
- 48.4V
- Operating Temperature
- -55℃~+150℃
- Peak Pulse Current (Ipp)
- 12.4A
- Peak Pulse Power Dissipation (Ppp)
- 600W
- Number of Channels
- 1
- Voltage - Breakdown
- 33.3V
- type
- TVS
- Polarity
- Bidirectional
- Reverse Leakage Current (Ir)
- 5uA
- Reverse Stand-Off Voltage (Vrwm)
- 30V
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.202 g
Overview
Suitable to protect sensitive automotive circuits against surges defined in ISO7637 - 2 and against electrostatic discharges according to ISO10605.
Key features
- 600W Peak Pulse Power Dissipation
- 5V to 200V Standoff Voltages
- Glass Passivated Die Construction
- Unidirectional and Bidirectional Versions Available
- Excellent Clamping Capability
- Lead - Free Finish; RoHS Compliant
- Halogen and Antimony Free. "Green" Device
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | SMBJ30CA#C2803680SUNMATE Elec · SMB(DO-214AA) | SUNMATE Elec | SMB(DO-214AA) | 290 | ₹8.43 · 290 in stock | View |
 | SMBJ30CA#C440295AnBon · SMB(DO-214AA) | AnBon | SMB(DO-214AA) | 690 | ₹6.85 · 690 in stock | View |
 | SMBJ30CA#C499720SMC · SMB(DO-214AA) | SMC | SMB(DO-214AA) | 5 | ₹15.27 · 5 in stock | View |
 | SMBJ30CA#C556187Slkor · SMB(DO-214AA) | Slkor | SMB(DO-214AA) | 390 | ₹6.23 · 390 in stock | View |
 | SMBJ30CA#C908205FUXINSEMI · DO-214AA(SMB) | FUXINSEMI | DO-214AA(SMB) | 13,620 | ₹5.73 · 13,620 in stock | View |
