DIODESDatasheet (PDF)

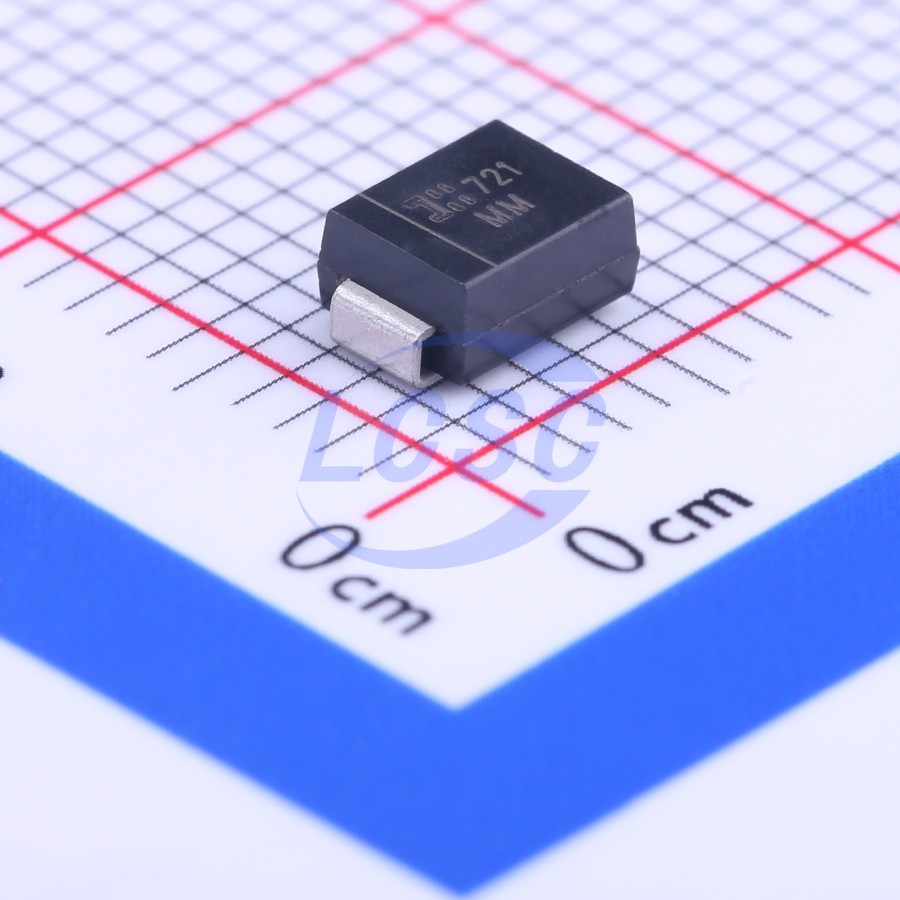

SMBJ33A-13-F
53.3VC Clamp 11.3A Ipp TVS DIODE SMB
SMBROHS CompliantActive
TVS DIODE 33VWM 53.3VC SMB
- Manufacturer
- DIODES
- Manufacturer part #
- SMBJ33A-13-F
- Store part #
- C135067
- Package / case
- SMB
- Category
- TVS Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
480 in stock
#C135067
Stock & price checked 9 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹45.88 | ₹229.40 |
| 50+ | ₹36.09 | ₹1,804.50 |
| 150+ | ₹31.90 | ₹4,785.00 |
| 500+ | ₹26.66 | ₹13,330.00 |
| 3,000+ | ₹24.33 | ₹72,990.00 |
| 6,000+ | ₹22.93 | ₹1,37,580.00 |
5 × ₹45.88
₹229.40
excl. GST
₹270.69 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
SMBJ33A-13-F
₹229.40 for 5 + GST
Specifications
- Clamping Voltage
- 53.3V
- Operating Temperature
- -55℃~+150℃
- Peak Pulse Current (Ipp)
- 11.3A
- Peak Pulse Power Dissipation (Ppp)
- 600W
- Number of Channels
- 1
- Voltage - Breakdown
- 42.2V
- type
- TVS
- Polarity
- Unidirectional
- Reverse Leakage Current (Ir)
- 5uA
- Reverse Stand-Off Voltage (Vrwm)
- 33V
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.207 g
Overview
Key features
- 600W Peak Pulse Power Dissipation
- 5.0V to 200V Standoff Voltages
- Glass Passivated Die Construction
- Uni- and Bi- Directional Versions Available
- Excellent Clamping Capability
- Lead-Free Finish; RoHS Compliant
- Halogen and Antimony Free. "Green" Device
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | SMBJ33AQ-13-F#C1974845DIODES · SMB | DIODES | SMB | 105 | ₹49.10 · 105 in stock | View |
 | SMBJ33A#C5353271FOSAN · SMB(DO-214AA) | FOSAN | SMB(DO-214AA) | 2,160 | ₹5.17 · 2,160 in stock | View |
 | SMBJ33A#C19077586R+O · DO-214AA(SMB) | R+O | DO-214AA(SMB) | 69,870 | ₹6.71 · 69,870 in stock | View |
 | SMBJ33A#C10219RUILON · DO-214AA(SMB) | RUILON | DO-214AA(SMB) | 5,470 | ₹12.56 · 5,470 in stock | View |
 | P6SMB39A#C42394410R+O · SMB | R+O | SMB | 11,320 | ₹6.14 · 11,320 in stock | View |
