VISHAYDatasheet (PDF)

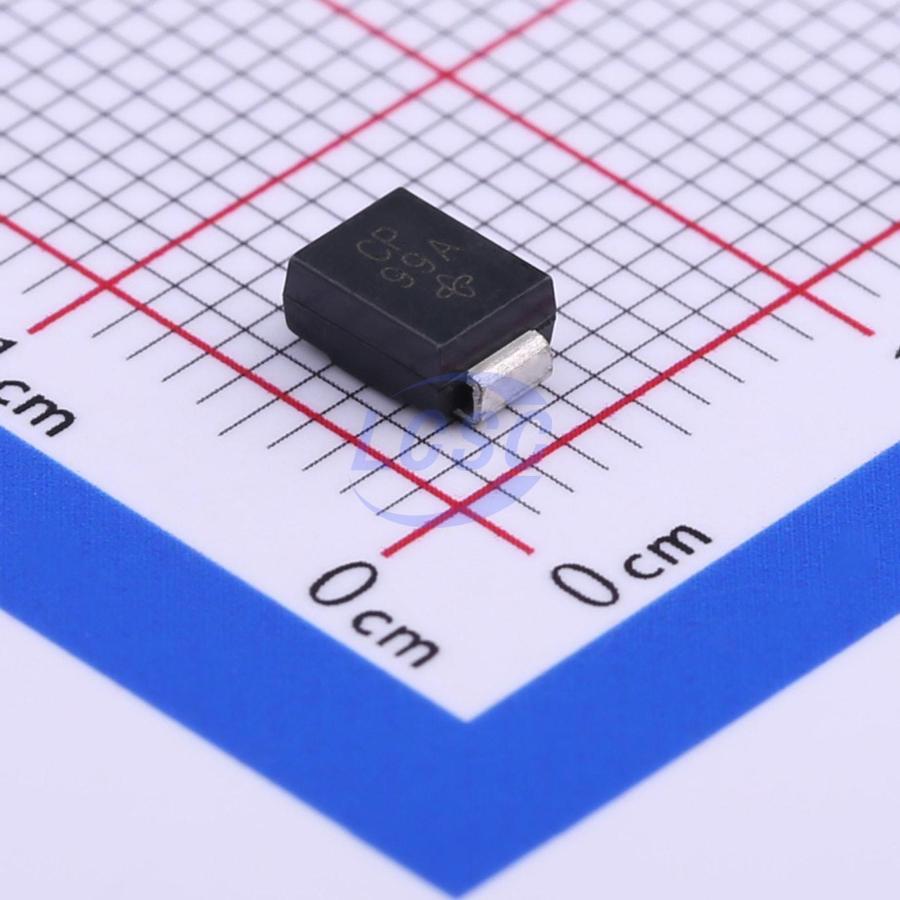

SMBJ36CA-E3/52
58.1VC Clamp 10.3A Ipp TVS DIODE SMB(DO-214AA)
SMB(DO-214AA)ROHS3 CompliantActive
TVS DIODE 36VWM 58.1VC SMB(DO-214AA)
- Manufacturer
- VISHAY
- Manufacturer part #
- SMBJ36CA-E3/52
- Store part #
- C435937
- Package / case
- SMB(DO-214AA)
- Category
- TVS Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
3,295 in stock
#C435937
Stock & price checked 12 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹24.04 | ₹120.20 |
| 50+ | ₹19.14 | ₹957.00 |
| 150+ | ₹17.04 | ₹2,556.00 |
| 750+ | ₹13.14 | ₹9,855.00 |
| 2,250+ | ₹11.97 | ₹26,932.50 |
| 5,250+ | ₹11.27 | ₹59,167.50 |
5 × ₹24.04
₹120.20
excl. GST
₹141.84 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 750 per reel
SMBJ36CA-E3/52
₹120.20 for 5 + GST
Specifications
- Clamping Voltage
- 58.1V
- Operating Temperature
- -55℃~+150℃
- Peak Pulse Current (Ipp)
- 10.3A
- Peak Pulse Power Dissipation (Ppp)
- 600W
- Number of Channels
- 1
- Voltage - Breakdown
- 40V
- type
- TVS
- Reverse Leakage Current (Ir)
- 1uA
- Polarity
- Bidirectional
- Reverse Stand-Off Voltage (Vrwm)
- 36V
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 750 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.217 g
Overview
Applications
- Use in sensitive electronics protection against voltage transients induced by inductive load switching and lighting on ICs, MOSFET, signal lines of sensor units for consumer, computer, industrial, and telecommunication
Key features
- For bi-directional devices use CA suffix (e.g. SMBJ10CA)
- Electrical characteristics apply in both directions
- Low profile package
- Ideal for automated placement
- Glass passivated chip junction
- Available in uni-directional and bi-directional
- 600 W peak pulse power capability with a 10/1000 μs waveform, repetitive rate (duty cycle): 0.01%
- Excellent clamping capability
- Very fast response time
- Low incremental surge resistance
- Meets MSL level 1, per J-STD-020, LF maximum peak of 260 °C
- AEC-Q101 qualified available - Automotive ordering code: base P/NHE3 or P/NHM3
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | SMBJ36CA#C19077589R+O · DO-214AA(SMB) | R+O | DO-214AA(SMB) | 5,98,325 | ₹7.18 · 5,98,325 in stock | View |
 | TPSMBJ36CA#C41425669TECH PUBLIC · SMB | TECH PUBLIC | SMB | 1,250 | ₹6.62 · 1,250 in stock | View |
 | SMBJ36CA#C5331119MSKSEMI · DO-214AA(SMB) | MSKSEMI | DO-214AA(SMB) | 1,23,320 | ₹4.10 · 1,23,320 in stock | View |
 | SMBJ36CA#C5353221FOSAN · SMB(DO-214AA) | FOSAN | SMB(DO-214AA) | 4,840 | ₹5.09 · 4,840 in stock | View |
 | SMBJ36CA#C726875TWGMC · DO-214AA(SMB) | TWGMC | DO-214AA(SMB) | 37,260 | ₹5.38 · 37,260 in stock | View |
