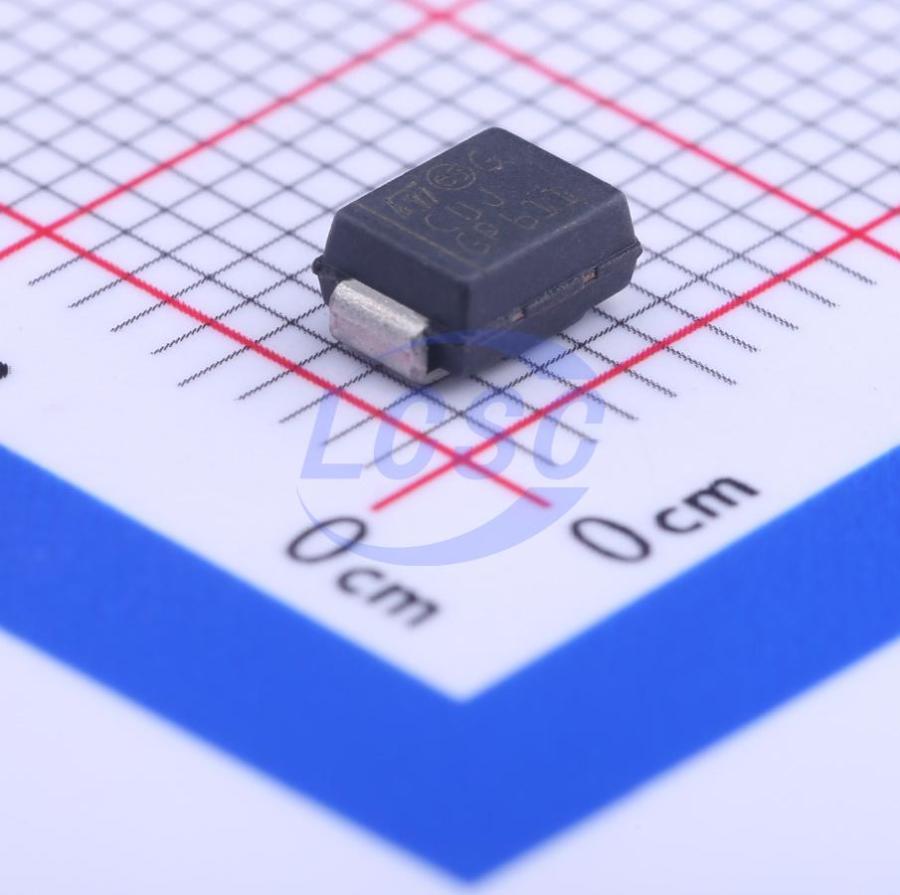

SMBJ40A-TR
64.5VC Clamp 9.7A Ipp TVS DIODE SMB(DO-214AA)
SMB(DO-214AA)ROHS3 CompliantActive
TVS DIODE 40VWM 64.5VC SMB(DO-214AA)
- Manufacturer
- ST
- Manufacturer part #
- SMBJ40A-TR
- Store part #
- C86597
- Package / case
- SMB(DO-214AA)
- Category
- TVS Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
70 in stock
#C86597
Stock & price checked 7 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹26.01 | ₹130.05 |
| 50+ | ₹20.77 | ₹1,038.50 |
| 150+ | ₹18.15 | ₹2,722.50 |
| 500+ | ₹16.18 | ₹8,090.00 |
| 2,500+ | ₹14.61 | ₹36,525.00 |
| 5,000+ | ₹13.83 | ₹69,150.00 |
5 × ₹26.01
₹130.05
excl. GST
₹153.46 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
SMBJ40A-TR
₹130.05 for 5 + GST
Specifications
- Clamping Voltage
- 64.5V
- Operating Temperature
- -55℃~+150℃
- Peak Pulse Current (Ipp)
- 9.7A
- Peak Pulse Power Dissipation (Ppp)
- 600W
- Number of Channels
- 1
- Voltage - Breakdown
- 44.4V
- type
- TVS
- Reverse Leakage Current (Ir)
- 1uA
- Polarity
- Unidirectional
- Reverse Stand-Off Voltage (Vrwm)
- 40V
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.224 g
Overview
SMBJ are packaged in SMB (SMB footprint in accordance with IPC 7531 standard).
Key features
- The SMBJ Transil series has been designed to protect sensitive equipment against electrostatic discharges according to IEC 61000 - 4 - 2, and MIL STD 883, method 3015, and electrical over stress according to IEC 61000 - 4 - 4 and 5. These devices are more generally used against surges below 600 W (10/1000 μs).
- Peak pulse power: 600 W (10/1000 μs) 4 kW (8/20 μs)
- Stand - off voltage range: from 5 V to 188 V
- Unidirectional and bidirectional types
- Low leakage current: 0.2 μA at 25 °C, 1 μA at 85 °C
- Operating Tj max: 150 °C
- High power capability at Tj max: 515 W (10/1000 μs)
- JEDEC registered package outline
- Planar technology makes these devices suitable for high - end equipment and SMPS where low leakage current and high junction temperature are required to provide reliability and stability over time.
