DIODESDatasheet (PDF)

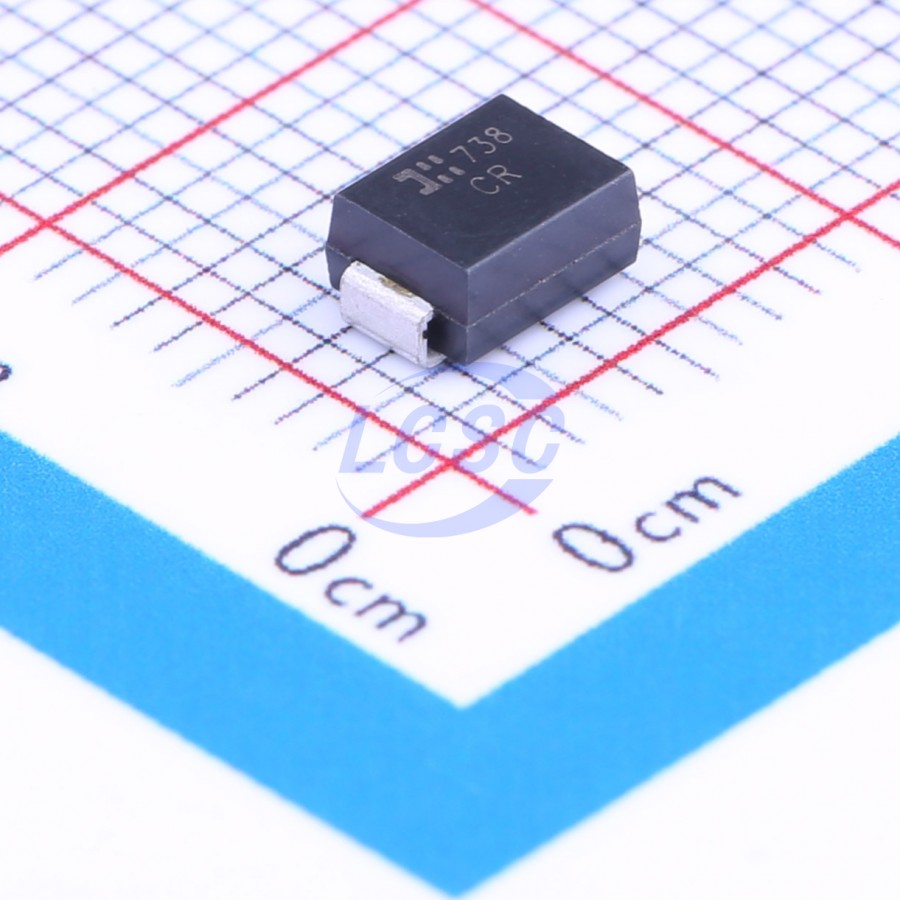

SMBJ40CA-13-F
64.5VC Clamp 9.3A Ipp TVS DIODE SMB
SMBROHS CompliantActive
TVS DIODE 40VWM 64.5VC SMB
- Manufacturer
- DIODES
- Manufacturer part #
- SMBJ40CA-13-F
- Store part #
- C135073
- Package / case
- SMB
- Category
- TVS Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
230 in stock
#C135073
Stock & price checked 9 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹35.10 | ₹175.50 |
| 50+ | ₹30.01 | ₹1,500.50 |
| 150+ | ₹27.81 | ₹4,171.50 |
| 500+ | ₹25.08 | ₹12,540.00 |
| 3,000+ | ₹23.88 | ₹71,640.00 |
| 6,000+ | ₹23.15 | ₹1,38,900.00 |
5 × ₹35.10
₹175.50
excl. GST
₹207.09 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
SMBJ40CA-13-F
₹175.50 for 5 + GST
Specifications
- Clamping Voltage
- 64.5V
- Operating Temperature
- -55℃~+150℃
- Peak Pulse Current (Ipp)
- 9.3A
- Peak Pulse Power Dissipation (Ppp)
- 600W
- Number of Channels
- 1
- Voltage - Breakdown
- 51.1V
- type
- TVS
- Reverse Leakage Current (Ir)
- 5uA
- Polarity
- Bidirectional
- Reverse Stand-Off Voltage (Vrwm)
- 40V
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.207 g
Overview
Key features
- 600W Peak Pulse Power Dissipation
- 5.0V to 200V Standoff Voltages
- Glass Passivated Die Construction
- Uni- and Bi- Directional Versions Available
- Excellent Clamping Capability
- Lead-Free Finish; RoHS Compliant
- Halogen and Antimony Free. "Green" Device
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | SMBJ40CA#C2891336GOODWORK · DO-214AA(SMB) | GOODWORK | DO-214AA(SMB) | 8,840 | ₹5.66 · 8,840 in stock | View |
 | SMBJ40CA#C556190Slkor · SMB(DO-214AA) | Slkor | SMB(DO-214AA) | 30 | ₹6.96 · 30 in stock | View |
 | SMBJ40CA#C114004MDD(Microdiode Semiconductor) · DO-214AA(SMB) | MDD(Microdiode Semiconductor) | DO-214AA(SMB) | 42,380 | ₹7.41 · 42,380 in stock | View |
 | SMBJ40CA#C151262Littelfuse · DO-214AA | Littelfuse | DO-214AA | 28,310 | ₹16.19 · 28,310 in stock | View |
 | SMBJ40CA#C3720704BOURNS · SMB(DO-214AA) | BOURNS | SMB(DO-214AA) | 97 | ₹76.18 · 97 in stock | View |
