DIODESDatasheet (PDF)

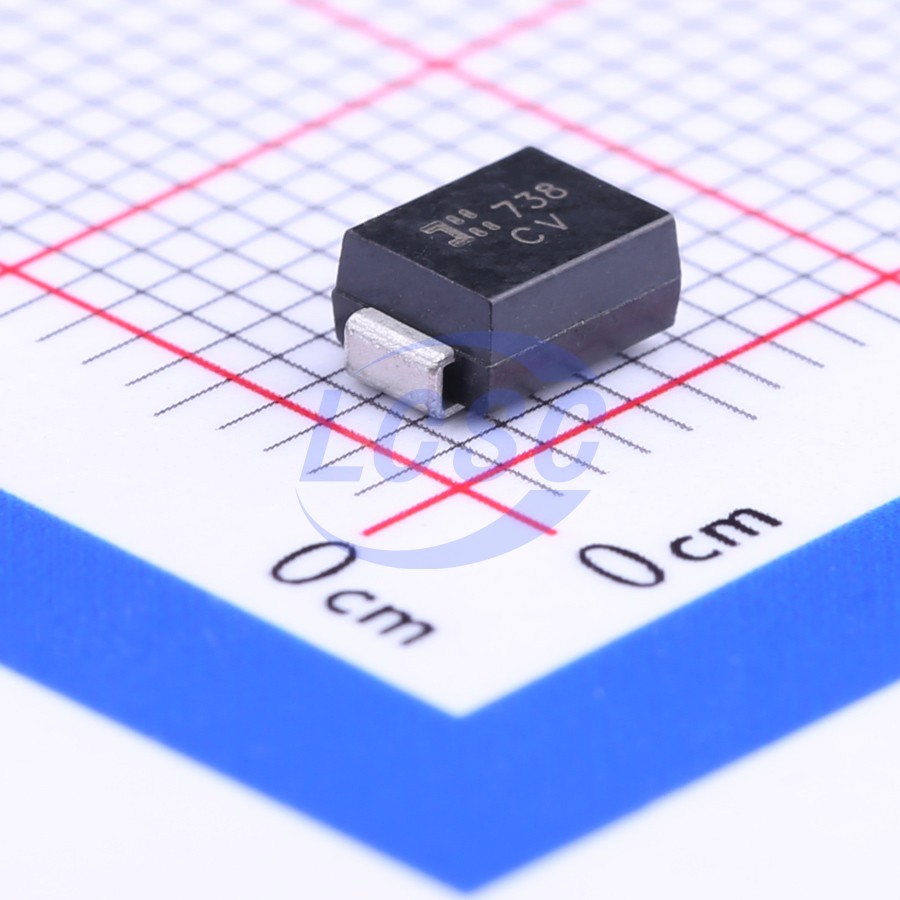

SMBJ45CA-13-F
72.7VC Clamp 8.3A Ipp TVS DIODE SMB
SMBROHS3 CompliantActive
TVS DIODE 45VWM 72.7VC SMB
- Manufacturer
- DIODES
- Manufacturer part #
- SMBJ45CA-13-F
- Store part #
- C135077
- Package / case
- SMB
- Category
- TVS Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
255 in stock
#C135077
Stock & price checked 9 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹25.02 | ₹125.10 |
| 50+ | ₹20.65 | ₹1,032.50 |
| 150+ | ₹18.77 | ₹2,815.50 |
| 500+ | ₹16.44 | ₹8,220.00 |
| 3,000+ | ₹15.41 | ₹46,230.00 |
| 6,000+ | ₹14.78 | ₹88,680.00 |
5 × ₹25.02
₹125.10
excl. GST
₹147.62 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
SMBJ45CA-13-F
₹125.10 for 5 + GST
Specifications
- Clamping Voltage
- 72.7V
- Operating Temperature
- -55℃~+150℃
- Peak Pulse Current (Ipp)
- 8.3A
- Peak Pulse Power Dissipation (Ppp)
- 600W
- Number of Channels
- 1
- Voltage - Breakdown
- 57.5V
- type
- TVS
- Polarity
- Bidirectional
- Reverse Leakage Current (Ir)
- 5uA
- Reverse Stand-Off Voltage (Vrwm)
- 45V
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.207 g
Overview
Key features
- 600W Peak Pulse Power Dissipation
- 5.0V to 200V Standoff Voltages
- Glass Passivated Die Construction
- Uni- and Bi- Directional Versions Available
- Excellent Clamping Capability
- Lead-Free Finish; RoHS Compliant
- Halogen and Antimony Free. "Green" Device
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | SMBJ45CA-E3/52#C1973528VISHAY · SMB(DO-214AA) | VISHAY | SMB(DO-214AA) | 115 | ₹37.65 · 115 in stock | View |
 | SMBJ45CA#C5353224FOSAN · SMB(DO-214AA) | FOSAN | SMB(DO-214AA) | 720 | ₹5.31 · 720 in stock | View |
 | SMBJ45CA#C49066949R+O · SMB(DO-214AA) | R+O | SMB(DO-214AA) | 840 | ₹6.13 · 840 in stock | View |
 | SMBJ45CA#C49242964PDW · SMB(DO-214AA) | PDW | SMB(DO-214AA) | 2,890 | ₹5.45 · 2,890 in stock | View |
 | SMBJ45CA#C5119561KUU · SMB | KUU | SMB | 550 | ₹5.15 · 550 in stock | View |
