DIODESDatasheet (PDF)

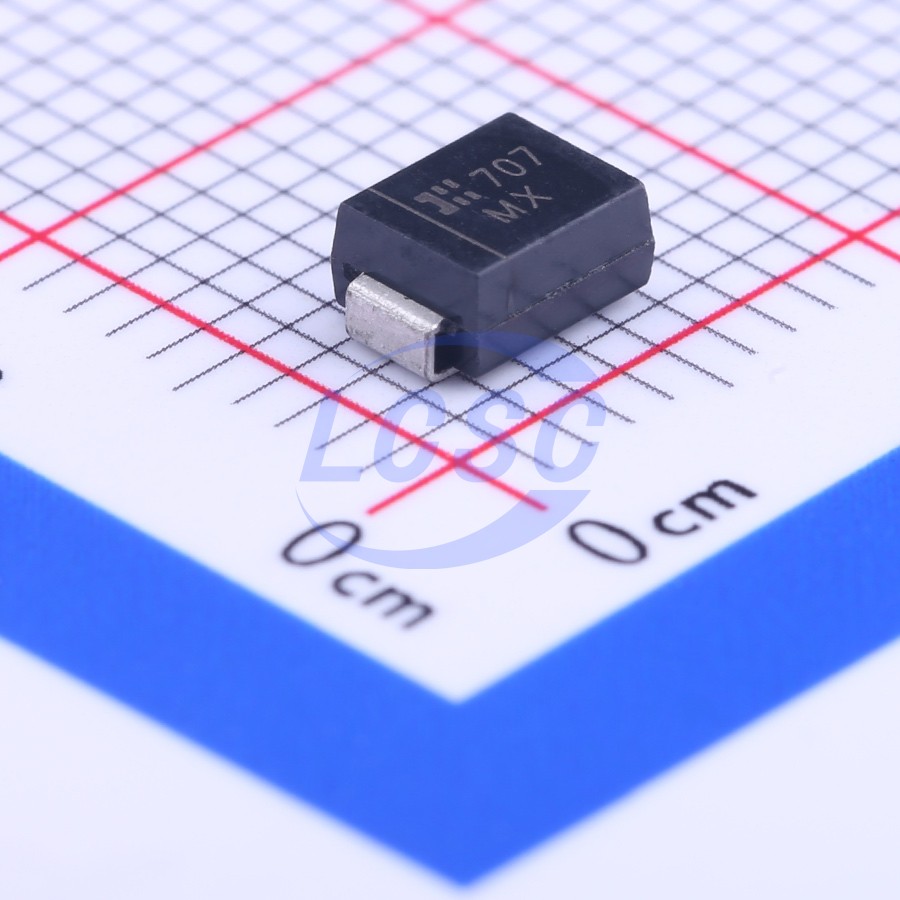

SMBJ48A-13-F
77.4VC Clamp 7.7A@8/20us Ipp TVS DIODE SMB
SMBROHS CompliantActive
TVS DIODE 48VWM 77.4VC SMB
- Manufacturer
- DIODES
- Manufacturer part #
- SMBJ48A-13-F
- Store part #
- C135078
- Package / case
- SMB
- Category
- TVS Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
175 in stock
#C135078
Stock & price checked 9 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹31.82 | ₹159.10 |
| 50+ | ₹25.16 | ₹1,258.00 |
| 150+ | ₹22.32 | ₹3,348.00 |
| 500+ | ₹18.76 | ₹9,380.00 |
| 3,000+ | ₹17.17 | ₹51,510.00 |
| 6,000+ | ₹16.22 | ₹97,320.00 |
5 × ₹31.82
₹159.10
excl. GST
₹187.74 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
SMBJ48A-13-F
₹159.10 for 5 + GST
Specifications
- Clamping Voltage
- 77.4V
- Operating Temperature
- -55℃~+150℃
- Peak Pulse Current (Ipp)
- 7.7A@8/20us
- Peak Pulse Power Dissipation (Ppp)
- 600W
- Number of Channels
- 1
- Voltage - Breakdown
- 61.3V
- type
- TVS
- Reverse Leakage Current (Ir)
- 5uA
- Polarity
- Unidirectional
- Reverse Stand-Off Voltage (Vrwm)
- 48V
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.207 g
Overview
Key features
- 600W Peak Pulse Power Dissipation
- 5.0V to 200V Standoff Voltages
- Glass Passivated Die Construction
- Uni- and Bi- Directional Versions Available
- Excellent Clamping Capability
- Lead-Free Finish; RoHS Compliant
- Halogen and Antimony Free. "Green" Device
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | SMBJ48A#C5353276FOSAN · SMB(DO-214AA) | FOSAN | SMB(DO-214AA) | 4,940 | ₹5.17 · 4,940 in stock | View |
 | SMBJ48A#C10224RUILON · DO-214AA(SMB) | RUILON | DO-214AA(SMB) | 120 | ₹9.60 · 120 in stock | View |
 | SZ1SMB48AT3G#C1975907Littelfuse · SMB | Littelfuse | SMB | 34 | ₹135.30 · 34 in stock | View |
 | SMBJ48A#C2848705GOODWORK · DO-214AA(SMB) | GOODWORK | DO-214AA(SMB) | 7,120 | ₹5.36 · 7,120 in stock | View |
 | SMBJ48A#C20604638YANGJIE · DO-214AA(SMB) | YANGJIE | DO-214AA(SMB) | 1,060 | ₹13.67 · 1,060 in stock | View |
