DIODESDatasheet (PDF)

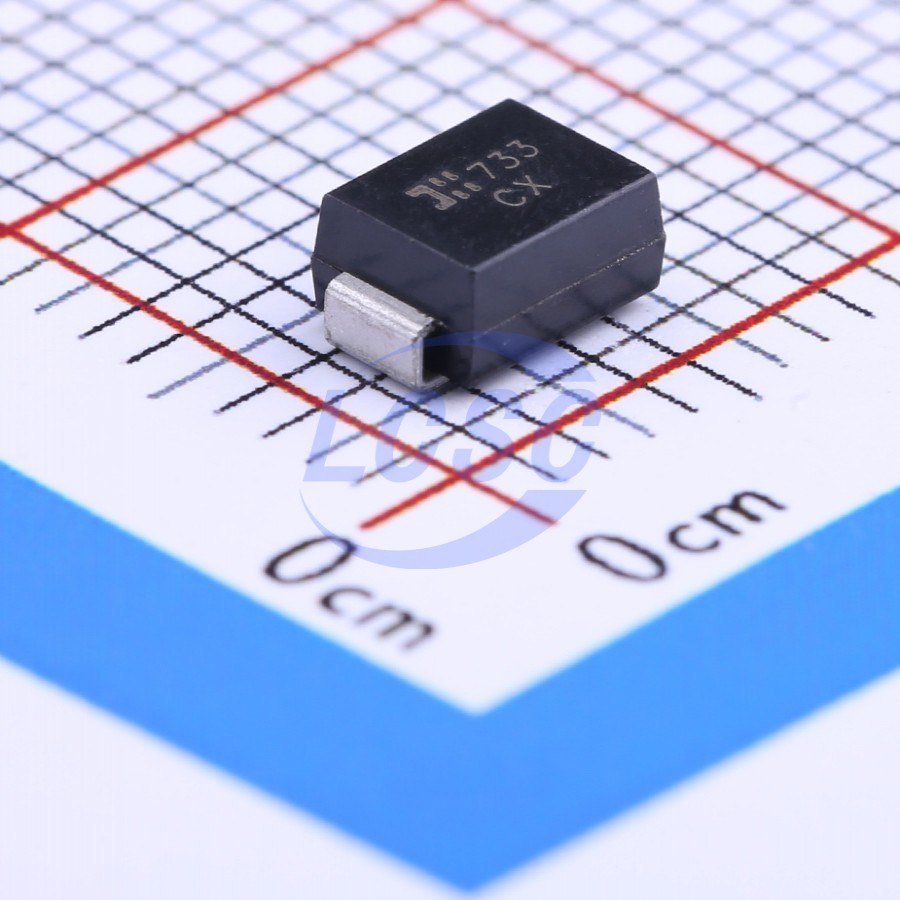

SMBJ48CA-13-F
77.4VC Clamp 7.7A@8/20us Ipp TVS DIODE SMB
SMBROHS3 CompliantActive
TVS DIODE 48VWM 77.4VC SMB
- Manufacturer
- DIODES
- Manufacturer part #
- SMBJ48CA-13-F
- Store part #
- C135079
- Package / case
- SMB
- Category
- TVS Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
565 in stock
#C135079
Stock & price checked 9 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹33.51 | ₹167.55 |
| 50+ | ₹26.42 | ₹1,321.00 |
| 150+ | ₹23.39 | ₹3,508.50 |
| 500+ | ₹19.61 | ₹9,805.00 |
| 3,000+ | ₹17.91 | ₹53,730.00 |
| 6,000+ | ₹16.91 | ₹1,01,460.00 |
5 × ₹33.51
₹167.55
excl. GST
₹197.71 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
SMBJ48CA-13-F
₹167.55 for 5 + GST
Specifications
- Clamping Voltage
- 77.4V
- Operating Temperature
- -55℃~+150℃
- Peak Pulse Current (Ipp)
- 7.7A@8/20us
- Peak Pulse Power Dissipation (Ppp)
- 600W
- Number of Channels
- 1
- Voltage - Breakdown
- 61.3V
- type
- TVS
- Reverse Leakage Current (Ir)
- 5uA
- Polarity
- Bidirectional
- Reverse Stand-Off Voltage (Vrwm)
- 48V
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.207 g
Overview
Key features
- 600W Peak Pulse Power Dissipation
- 5.0V to 200V Standoff Voltages
- Glass Passivated Die Construction
- Uni- and Bi- Directional Versions Available
- Excellent Clamping Capability
- Lead-Free Finish; RoHS Compliant
- Halogen and Antimony Free. "Green" Device
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | SMBJ48CA#C5353225FOSAN · SMB(DO-214AA) | FOSAN | SMB(DO-214AA) | 3,260 | ₹5.17 · 3,260 in stock | View |
 | SMBJ48CA#C19077591R+O · DO-214AA(SMB) | R+O | DO-214AA(SMB) | 10,030 | ₹6.54 · 10,030 in stock | View |
 | SMBJ48CA#C143169FMS(Formosa Microsemi) · SMB(DO-214AA) | FMS(Formosa Microsemi) | SMB(DO-214AA) | 5 | ₹9.83 · 5 in stock | View |
 | SMBJ48CA#C2891338GOODWORK · DO-214AA(SMB) | GOODWORK | DO-214AA(SMB) | 2,940 | ₹5.29 · 2,940 in stock | View |
 | SMBJ48CA#C7470968SURGING · DO-214AA | SURGING | DO-214AA | 3,730 | ₹6.76 · 3,730 in stock | View |
