DIODESDatasheet (PDF)

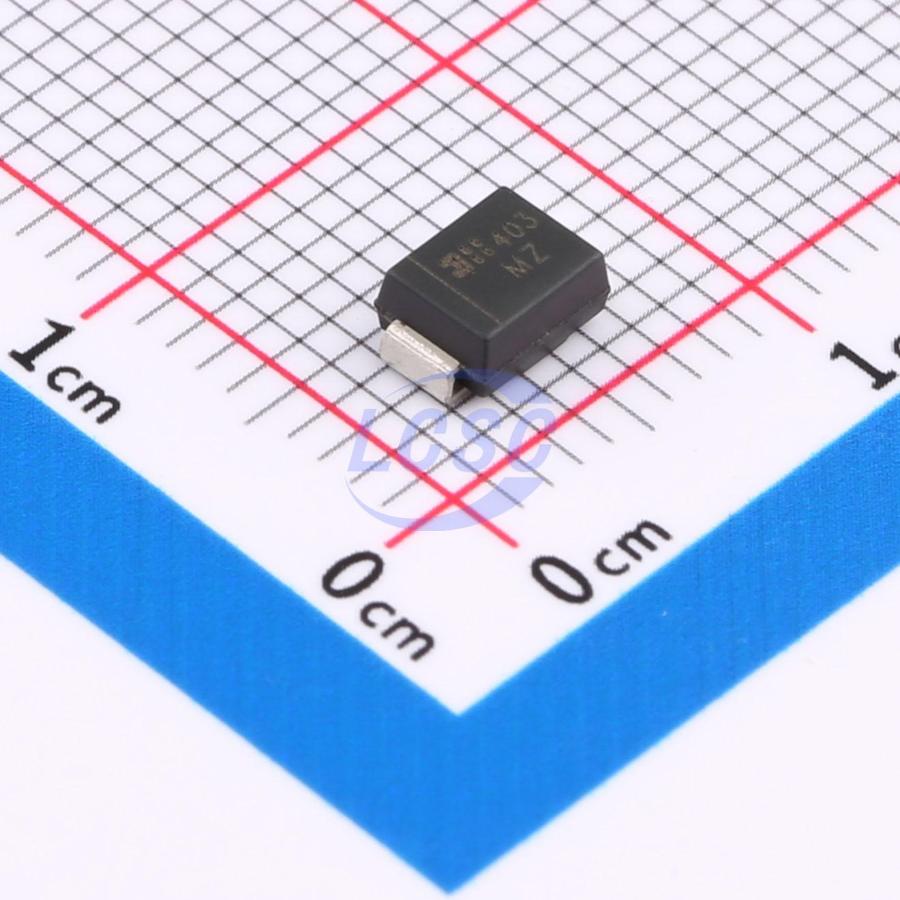

SMBJ51A-13-F
82.4VC Clamp 7.3A@8.3ms Ipp TVS DIODE SMB
SMBROHS3 CompliantActive
TVS DIODE 51VWM 82.4VC SMB
- Manufacturer
- DIODES
- Manufacturer part #
- SMBJ51A-13-F
- Store part #
- C135081
- Package / case
- SMB
- Category
- TVS Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,410 in stock
#C135081
Stock & price checked 8 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹25.34 | ₹126.70 |
| 50+ | ₹20.16 | ₹1,008.00 |
| 150+ | ₹17.94 | ₹2,691.00 |
| 500+ | ₹15.17 | ₹7,585.00 |
| 3,000+ | ₹13.94 | ₹41,820.00 |
| 6,000+ | ₹13.20 | ₹79,200.00 |
5 × ₹25.34
₹126.70
excl. GST
₹149.51 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
SMBJ51A-13-F
₹126.70 for 5 + GST
Specifications
- Clamping Voltage
- 82.4V
- Operating Temperature
- -55℃~+150℃
- Peak Pulse Current (Ipp)
- 7.3A
- Peak Pulse Power Dissipation (Ppp)
- 600W
- Number of Channels
- 1
- Voltage - Breakdown
- 65.2V
- type
- TVS
- Polarity
- Unidirectional
- Reverse Leakage Current (Ir)
- 5uA
- Reverse Stand-Off Voltage (Vrwm)
- 51V
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.207 g
Overview
Key features
- 600W Peak Pulse Power Dissipation
- 5.0V to 200V Standoff Voltages
- Glass Passivated Die Construction
- Uni- and Bi- Directional Versions Available
- Excellent Clamping Capability
- Lead-Free Finish; RoHS Compliant
- Halogen and Antimony Free. "Green" Device
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | SMBJ51A#C5353277FOSAN · SMB(DO-214AA) | FOSAN | SMB(DO-214AA) | 820 | ₹5.17 · 820 in stock | View |
 | SMBJ51A#C698968YANGJIE · DO-214AA(SMB) | YANGJIE | DO-214AA(SMB) | 2,970 | ₹9.72 · 2,970 in stock | View |
 | SMBJ51A#C49066950R+O · SMB(DO-214AA) | R+O | SMB(DO-214AA) | 1,380 | ₹6.60 · 1,380 in stock | View |
 | SMBJ51A#C10225RUILON · DO-214AA(SMB) | RUILON | DO-214AA(SMB) | 2,665 | ₹12.34 · 2,665 in stock | View |
 | SMBJ51A#C163658PTTC(Polytronics Tech) · SMB(DO-214AA) | PTTC(Polytronics Tech) | SMB(DO-214AA) | 25 | ₹12.75 · 25 in stock | View |
