DIODESDatasheet (PDF)

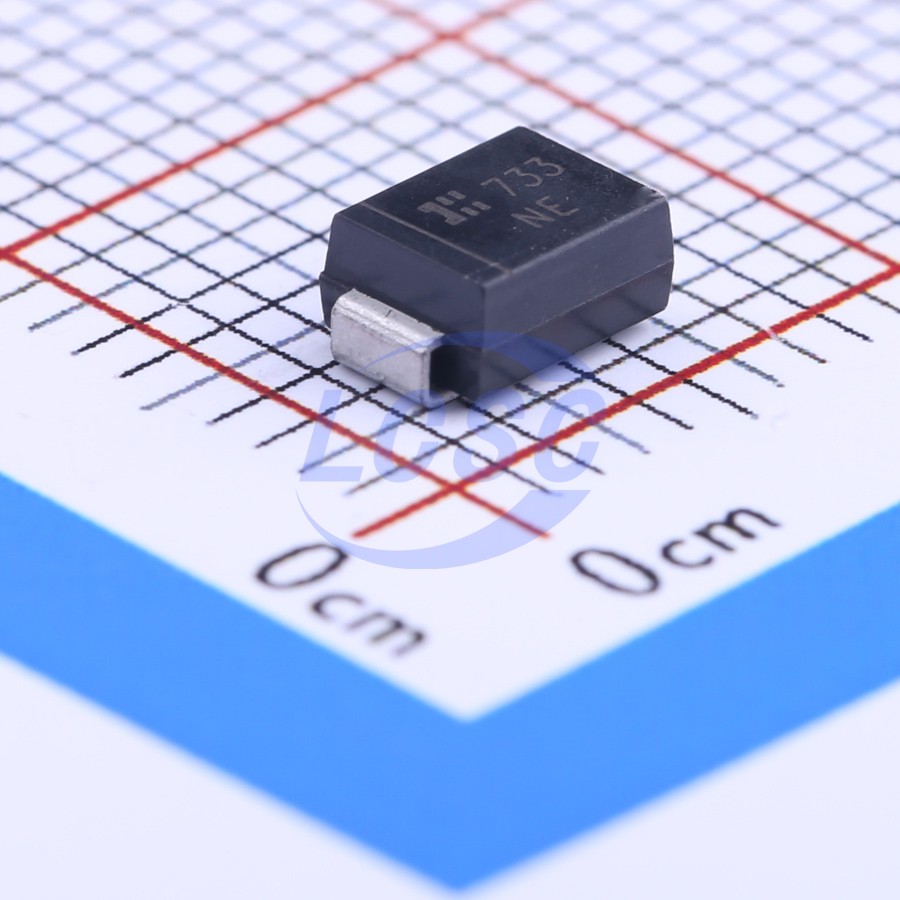

SMBJ54A-13-F
87.1VC Clamp 6.9A Ipp TVS DIODE SMB
SMBROHS CompliantActive
TVS DIODE 54VWM 87.1VC SMB
- Manufacturer
- DIODES
- Manufacturer part #
- SMBJ54A-13-F
- Store part #
- C135083
- Package / case
- SMB
- Category
- TVS Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,120 in stock
#C135083
Stock & price checked 8 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹24.63 | ₹123.15 |
| 50+ | ₹19.61 | ₹980.50 |
| 150+ | ₹17.45 | ₹2,617.50 |
| 500+ | ₹14.76 | ₹7,380.00 |
| 3,000+ | ₹13.56 | ₹40,680.00 |
| 6,000+ | ₹12.85 | ₹77,100.00 |
5 × ₹24.63
₹123.15
excl. GST
₹145.32 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
SMBJ54A-13-F
₹123.15 for 5 + GST
Specifications
- Clamping Voltage
- 87.1V
- Operating Temperature
- -55℃~+150℃
- Peak Pulse Current (Ipp)
- 6.9A
- Peak Pulse Power Dissipation (Ppp)
- 600W
- Number of Channels
- 1
- Voltage - Breakdown
- 69V
- type
- TVS
- Polarity
- Unidirectional
- Reverse Leakage Current (Ir)
- 5uA
- Reverse Stand-Off Voltage (Vrwm)
- 54V
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.207 g
Overview
Key features
- 600W Peak Pulse Power Dissipation
- 5.0V to 200V Standoff Voltages
- Glass Passivated Die Construction
- Uni- and Bi- Directional Versions Available
- Excellent Clamping Capability
- Lead-Free Finish; RoHS Compliant
- Halogen and Antimony Free. "Green" Device
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | SMBJ54A#C5353278FOSAN · SMB(DO-214AA) | FOSAN | SMB(DO-214AA) | 2,300 | ₹5.17 · 2,300 in stock | View |
 | SMBJ54A#C49066951R+O · SMB(DO-214AA) | R+O | SMB(DO-214AA) | 8,500 | ₹7.05 · 8,500 in stock | View |
 | SMBJ54A#C163660PTTC(Polytronics Tech) · SMB(DO-214AA) | PTTC(Polytronics Tech) | SMB(DO-214AA) | 10 | ₹14.76 · 10 in stock | View |
 | SMBJ54A#C49242968PDW · SMB(DO-214AA) | PDW | SMB(DO-214AA) | 1,000 | ₹5.19 · 1,000 in stock | View |
 | SMBJ54A#C5161391ZHIDE · DO-214AA(SMB) | ZHIDE | DO-214AA(SMB) | 170 | ₹9.84 · 170 in stock | View |
