DIODESDatasheet (PDF)

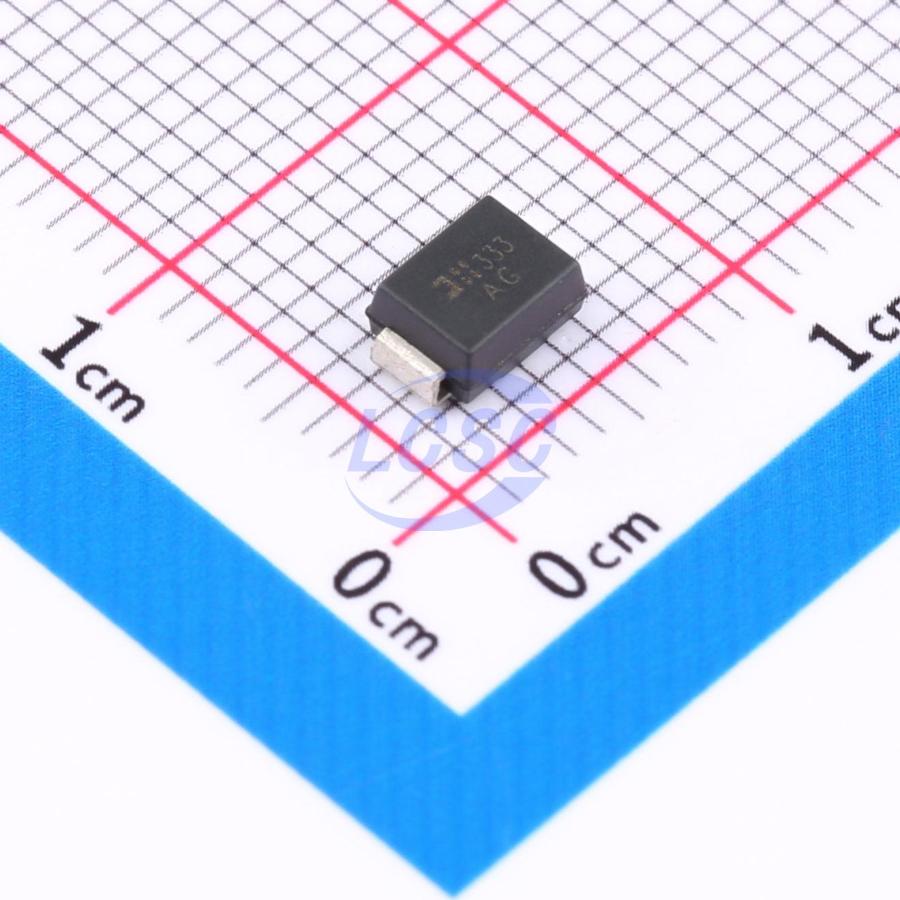

SMBJ6.0CA-13-F
10.3VC Clamp 58.3A Ipp TVS DIODE SMB
SMBROHS3 CompliantActive
TVS DIODE 6VWM 10.3VC SMB
- Manufacturer
- DIODES
- Manufacturer part #
- SMBJ6.0CA-13-F
- Store part #
- C135088
- Package / case
- SMB
- Category
- TVS Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,864 in stock
#C135088
Stock & price checked 8 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 2+ | ₹52.79 | ₹105.58 |
| 20+ | ₹42.14 | ₹842.80 |
| 60+ | ₹37.59 | ₹2,255.40 |
| 200+ | ₹31.94 | ₹6,388.00 |
| 1,000+ | ₹29.54 | ₹29,540.00 |
| 3,000+ | ₹28.02 | ₹84,060.00 |
2 × ₹52.79
₹105.58
excl. GST
₹124.58 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
SMBJ6.0CA-13-F
₹105.58 for 2 + GST
Specifications
- Clamping Voltage
- 10.3V
- Operating Temperature
- -55℃~+150℃
- Peak Pulse Current (Ipp)
- 58.3A
- Peak Pulse Power Dissipation (Ppp)
- 600W
- Number of Channels
- 1
- Voltage - Breakdown
- 7.67V
- type
- TVS
- Reverse Leakage Current (Ir)
- 800uA
- Polarity
- Bidirectional
- Reverse Stand-Off Voltage (Vrwm)
- 6V
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 2 (multiples of 2)
- Unit weight
- 0.207 g
Overview
Key features
- 600W Peak Pulse Power Dissipation
- 5.0V to 200V Standoff Voltages
- Glass Passivated Die Construction
- Uni- and Bi- Directional Versions Available
- Excellent Clamping Capability
- Lead-Free Finish; RoHS Compliant
- Halogen and Antimony Free. "Green" Device
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | SMBJ6.0CA#C113977MDD(Microdiode Semiconductor) · DO-214AA(SMB) | MDD(Microdiode Semiconductor) | DO-214AA(SMB) | 7,97,420 | ₹6.28 · 7,97,420 in stock | View |
 | SMBJ6.0CA#C260408SMC · SMB(DO-214AA) | SMC | SMB(DO-214AA) | 2,950 | ₹12.91 · 2,950 in stock | View |
 | SMBJ6.0CA#C266341Suzhou Good-Ark Elec · DO-214AA(SMB) | Suzhou Good-Ark Elec | DO-214AA(SMB) | 2,765 | ₹14.80 · 2,765 in stock | View |
 | SMBJ6.0CA#C2897626RUILON · DO-214AA(SMB) | RUILON | DO-214AA(SMB) | 3,340 | ₹12.09 · 3,340 in stock | View |
 | SMBJ6.0CA#C440265AnBon · SMB(DO-214AA) | AnBon | SMB(DO-214AA) | 2,700 | ₹8.02 · 2,700 in stock | View |
