DIODESDatasheet (PDF)

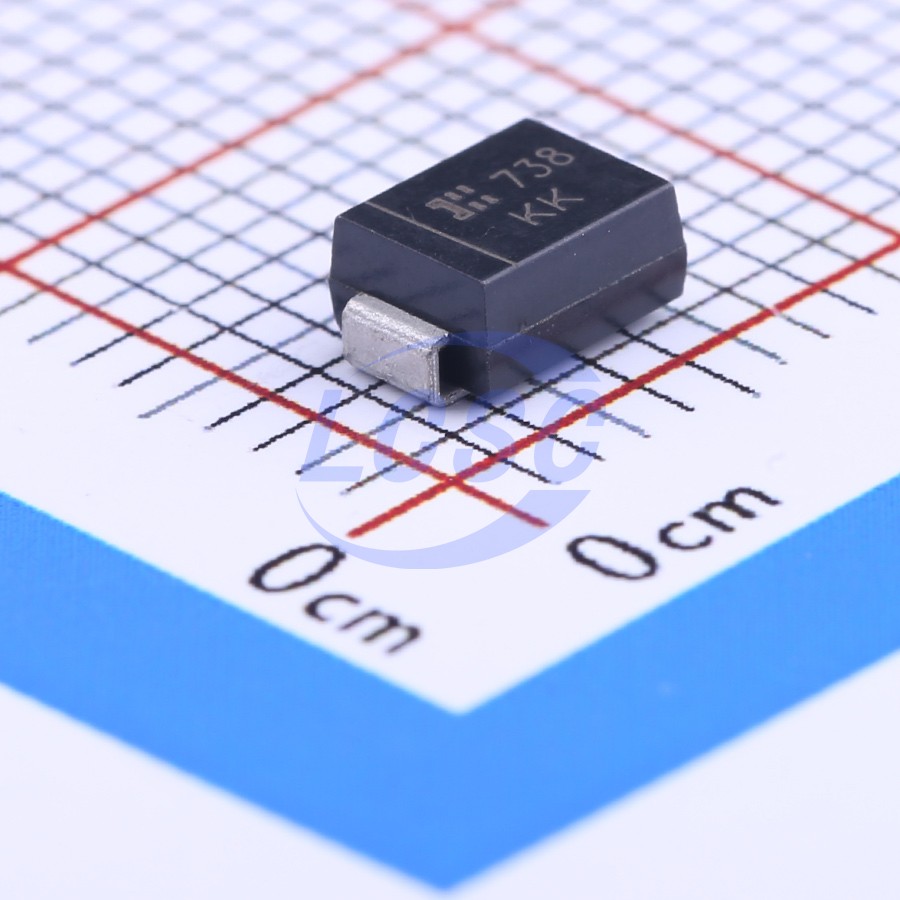

SMBJ6.5A-13-F
11.2VC Clamp 53.6A Ipp TVS DIODE SMB
SMBROHS3 CompliantActive
TVS DIODE 6.5VWM 11.2VC SMB
- Manufacturer
- DIODES
- Manufacturer part #
- SMBJ6.5A-13-F
- Store part #
- C135089
- Package / case
- SMB
- Category
- TVS Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
40 in stock
#C135089
Stock & price checked 9 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹44.17 | ₹220.85 |
| 50+ | ₹36.53 | ₹1,826.50 |
| 150+ | ₹33.26 | ₹4,989.00 |
| 500+ | ₹29.17 | ₹14,585.00 |
| 3,000+ | ₹27.35 | ₹82,050.00 |
| 6,000+ | ₹26.25 | ₹1,57,500.00 |
5 × ₹44.17
₹220.85
excl. GST
₹260.60 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
SMBJ6.5A-13-F
₹220.85 for 5 + GST
Specifications
- Clamping Voltage
- 11.2V
- Operating Temperature
- -55℃~+150℃
- Peak Pulse Current (Ipp)
- 53.6A
- Peak Pulse Power Dissipation (Ppp)
- 600W
- Number of Channels
- 1
- Voltage - Breakdown
- 8.3V
- type
- TVS
- Reverse Leakage Current (Ir)
- 500uA
- Polarity
- Unidirectional
- Reverse Stand-Off Voltage (Vrwm)
- 6.5V
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.207 g
Overview
Key features
- 600W Peak Pulse Power Dissipation
- 5.0V to 200V Standoff Voltages
- Glass Passivated Die Construction
- Uni- and Bi- Directional Versions Available
- Excellent Clamping Capability
- Lead-Free Finish; RoHS Compliant
- Halogen and Antimony Free. "Green" Device
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | SMBJ6.5A#C20539696Slkor · SMB(DO-214AA) | Slkor | SMB(DO-214AA) | 10 | ₹6.67 · 10 in stock | View |
 | SMBJ6.5A#C5353250FOSAN · SMB(DO-214AA) | FOSAN | SMB(DO-214AA) | 9,400 | ₹5.24 · 9,400 in stock | View |
 | SMBJ6.5A-E3/52#C1974348VISHAY · SMB(DO-214AA) | VISHAY | SMB(DO-214AA) | 25 | ₹21.59 · 25 in stock | View |
| SMBJ6.5A#C20883314OTW · SMB(DO-214AA) | OTW | SMB(DO-214AA) | 40 | ₹4.95 · 40 in stock | View | |
 | SMBJ6.5A#C2944160KUU · SMB | KUU | SMB | 4,280 | ₹4.83 · 4,280 in stock | View |
