DIODESDatasheet (PDF)

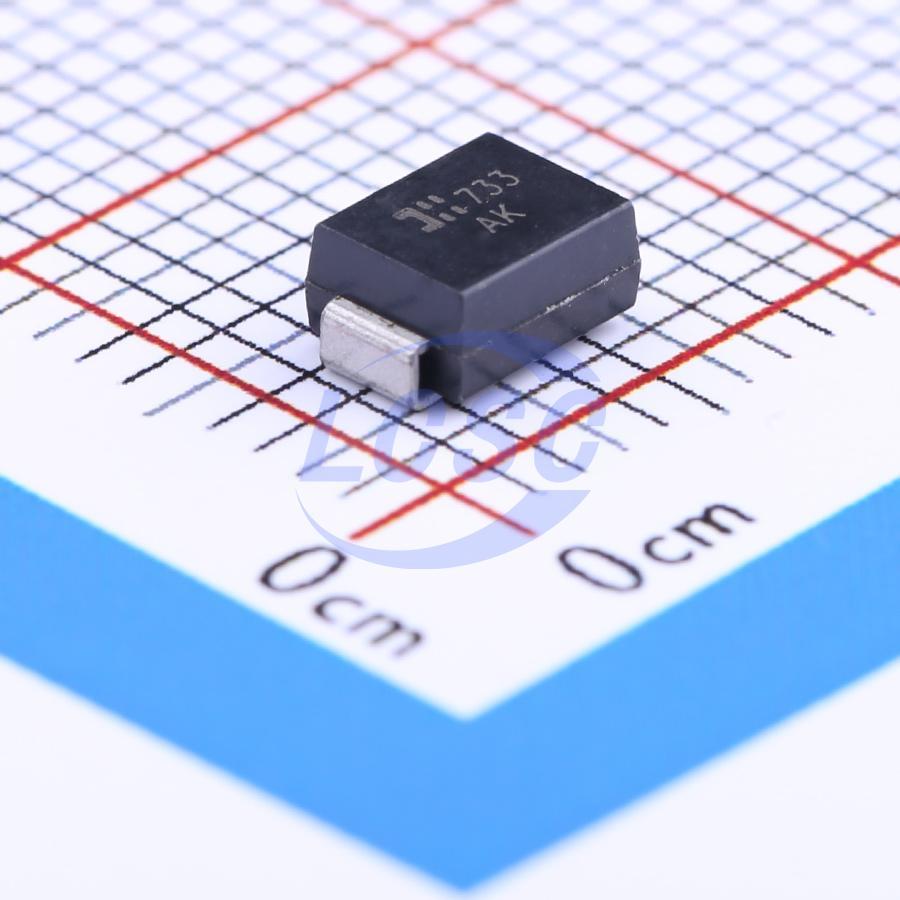

SMBJ6.5CA-13-F
11.2VC Clamp 53.6A Ipp TVS DIODE SMB
SMBROHS CompliantActive
TVS DIODE 6.5VWM 11.2VC SMB
- Manufacturer
- DIODES
- Manufacturer part #
- SMBJ6.5CA-13-F
- Store part #
- C129586
- Package / case
- SMB
- Category
- TVS Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
50 in stock
#C129586
Stock & price checked 13 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹30.63 | ₹153.15 |
| 50+ | ₹24.41 | ₹1,220.50 |
| 150+ | ₹21.74 | ₹3,261.00 |
| 500+ | ₹18.42 | ₹9,210.00 |
| 3,000+ | ₹16.93 | ₹50,790.00 |
| 6,000+ | ₹16.05 | ₹96,300.00 |
5 × ₹30.63
₹153.15
excl. GST
₹180.72 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
SMBJ6.5CA-13-F
₹153.15 for 5 + GST
Specifications
- Clamping Voltage
- 11.2V
- Operating Temperature
- -55℃~+150℃
- Peak Pulse Current (Ipp)
- 53.6A
- Peak Pulse Power Dissipation (Ppp)
- 600W
- Number of Channels
- 1
- Voltage - Breakdown
- 8.3V
- type
- TVS
- Reverse Leakage Current (Ir)
- 500uA
- Polarity
- Bidirectional
- Reverse Stand-Off Voltage (Vrwm)
- 6.5V
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.207 g
Overview
Key features
- 600W Peak Pulse Power Dissipation
- 5.0V to 200V Standoff Voltages
- Glass Passivated Die Construction
- Uni- and Bi- Directional Versions Available
- Excellent Clamping Capability
- Lead-Free Finish; RoHS Compliant
- Halogen and Antimony Free. "Green" Device
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | SMBJ6.5CA-E3/52#C68335VISHAY · SMB(DO-214AA) | VISHAY | SMB(DO-214AA) | 3,780 | ₹22.12 · 3,780 in stock | View |
 | SMBJ6.5CA-TP#C721401MCC · SMB(DO-214AA) | MCC | SMB(DO-214AA) | 330 | ₹12.94 · 330 in stock | View |
 | SMBJ6.5CA#C140900LRC · SMB(DO-214AA) | LRC | SMB(DO-214AA) | 2,525 | ₹14.26 · 2,525 in stock | View |
 | SMBJ6.5CA#C20623830Brightking · SMB(DO-214AA) | Brightking | SMB(DO-214AA) | 10,650 | ₹8.71 · 10,650 in stock | View |
| SMBJ6.5CA#C20883174OTW · SMB(DO-214AA) | OTW | SMB(DO-214AA) | 2,840 | ₹4.96 · 2,840 in stock | View | |
