DIODESDatasheet (PDF)

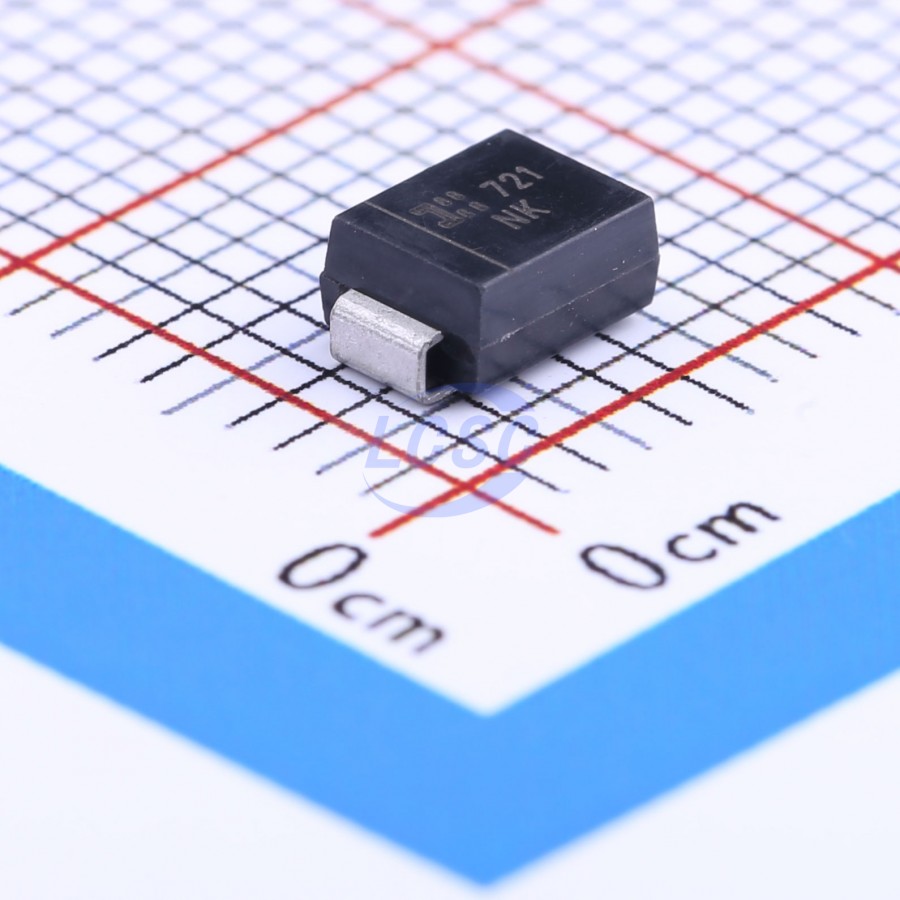

SMBJ60A-13-F
96.8VC Clamp 6.2A Ipp TVS DIODE SMB
SMBROHS CompliantActive
TVS DIODE 60VWM 96.8VC SMB
- Manufacturer
- DIODES
- Manufacturer part #
- SMBJ60A-13-F
- Store part #
- C135090
- Package / case
- SMB
- Category
- TVS Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
930 in stock
#C135090
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹18.88 | ₹94.40 |
| 50+ | ₹15.08 | ₹754.00 |
| 150+ | ₹13.18 | ₹1,977.00 |
| 500+ | ₹11.75 | ₹5,875.00 |
| 3,000+ | ₹10.61 | ₹31,830.00 |
| 6,000+ | ₹10.04 | ₹60,240.00 |
5 × ₹18.88
₹94.40
excl. GST
₹111.39 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
SMBJ60A-13-F
₹94.40 for 5 + GST
Specifications
- Clamping Voltage
- 96.8V
- Operating Temperature
- -55℃~+150℃
- Peak Pulse Current (Ipp)
- 6.2A
- Peak Pulse Power Dissipation (Ppp)
- 600W
- Number of Channels
- 1
- Voltage - Breakdown
- 76.7V
- type
- TVS
- Polarity
- Unidirectional
- Reverse Leakage Current (Ir)
- 5uA
- Reverse Stand-Off Voltage (Vrwm)
- 60V
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.207 g
Overview
Key features
- 600W Peak Pulse Power Dissipation
- 5.0V to 200V Standoff Voltages
- Glass Passivated Die Construction
- Uni- and Bi- Directional Versions Available
- Excellent Clamping Capability
- Lead-Free Finish; RoHS Compliant
- Halogen and Antimony Free. "Green" Device
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | SMBJ60A#C5353280FOSAN · SMB(DO-214AA) | FOSAN | SMB(DO-214AA) | 2,900 | ₹5.13 · 2,900 in stock | View |
 | SMBJ60A#C49066953R+O · SMB(DO-214AA) | R+O | SMB(DO-214AA) | 51,710 | ₹8.16 · 51,710 in stock | View |
 | SMBJ60A#C163661PTTC(Polytronics Tech) · SMB(DO-214AA) | PTTC(Polytronics Tech) | SMB(DO-214AA) | 2,965 | ₹11.01 · 2,965 in stock | View |
 | SMBJ60A#C20623825Brightking · SMB(DO-214AA) | Brightking | SMB(DO-214AA) | 6,190 | ₹7.21 · 6,190 in stock | View |
 | SMBJ60A#C20883340OTW · SMB(DO-214AA) | OTW | SMB(DO-214AA) | 2,900 | ₹3.84 · 2,900 in stock | View |
