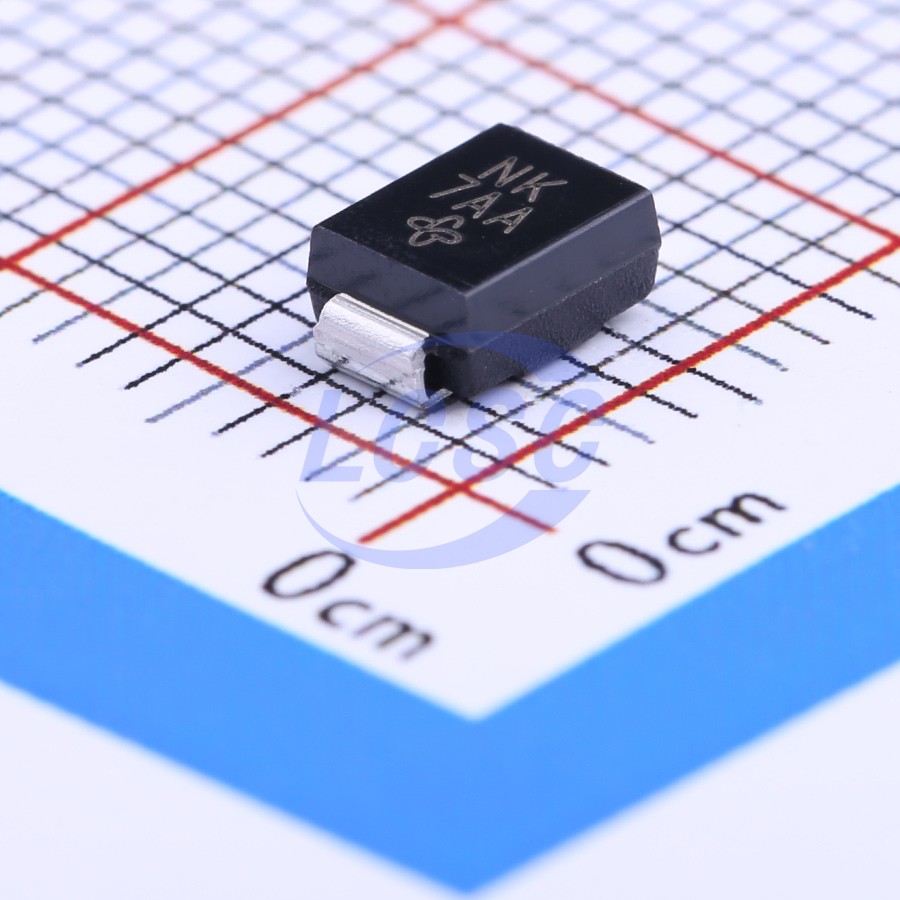

SMBJ60CA-E3/52 VISHAY

SMBJ60CA-E3/52

96.8VC Clamp 6.2A@10/1000us Ipp TVS DIODE SMB(DO-214AA)

SMB(DO-214AA)ROHS CompliantActive

TVS DIODE 60VWM 96.8VC SMB(DO-214AA)

Manufacturer: VISHAY
Manufacturer part #: SMBJ60CA-E3/52
Store part #: C145196
Package / case: SMB(DO-214AA)
Category: TVS Diodes
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

3,555 in stock

#C145196

Stock & price checked 12 days ago

Quantity	Unit price	Pack price
5+	₹12.65	₹63.25
50+	₹9.94	₹497.00
150+	₹8.57	₹1,285.50
750+	₹7.55	₹5,662.50
2,250+	₹6.73	₹15,142.50
5,250+	₹6.32	₹33,180.00

Quantity (min 5, multiples of 5)

5 × ₹12.65

₹63.25

excl. GST

₹74.63 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 15-18 working days
GST invoice with every order
Standard pack: 750 per reel

SMBJ60CA-E3/52

₹63.25 for 5 + GST

Need this with the rest of your board? Upload the BOM — we price every line.Upload BOM

Specifications

Clamping Voltage: 96.8V
Peak Pulse Current (Ipp): 6.2A@10/1000us
Peak Pulse Power Dissipation (Ppp): 600W@10/1000us
Number of Channels: 1
Voltage - Breakdown: 73.7V
type: TVS
Reverse Leakage Current (Ir): 1uA
Polarity: Bidirectional
Reverse Stand-Off Voltage (Vrwm): 60V

Packaging & compliance

RoHS: ROHS Compliant
Lifecycle: Active
ECCN: EAR99
Packaging: Tape & Reel (TR)
Standard pack: 750 / Reel
Sold per: Piece
Minimum order: 5 (multiples of 5)
Unit weight: 0.217 g

Overview

Applications

Use in sensitive electronics protection against voltage transients induced by inductive load switching and lighting on ICs, MOSFET, signal lines of sensor units for consumer, computer, industrial, and telecommunication.

Key features

DO-214AA (SMB J-Bend)
Low profile package
Ideal for automated placement
Glass passivated chip junction
Available in uni- directional and bi- directional
600 w peak pulse power capability with a 10/1000 us waveform, repetitive rate (duty cycle): 0.01%
Excellent clamping capability
Very fast response time
Low incremental surge resistance
Meets MSL level 1, per J- STD- 020, LF maximum peak of 260℃
AEC- Q101 qualified

Alternatives

Similar parts — check the datasheet before substituting.

Part		Manufacturer	Package	Stock	Price from (excl. GST)	Action
	SMBJ60CA#C5353229FOSAN · SMB(DO-214AA)	FOSAN	SMB(DO-214AA)	2,760	₹5.15 · 2,760 in stock	View
	SMBJ60CA#C726883TWGMC · DO-214AA(SMB)	TWGMC	DO-214AA(SMB)	2,560	₹5.27 · 2,560 in stock	View
