DIODESDatasheet (PDF)

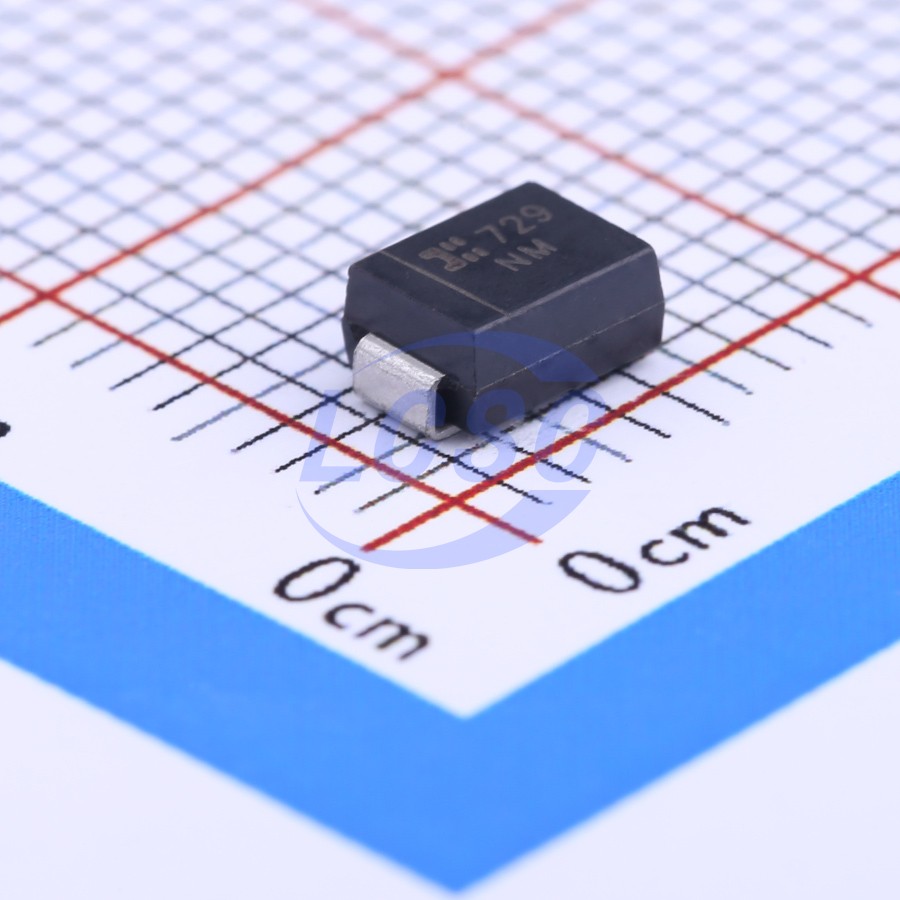

SMBJ64A-13-F
103VC Clamp 5.8A Ipp TVS DIODE SMB
SMBROHS3 CompliantActive
TVS DIODE 64VWM 103VC SMB
- Manufacturer
- DIODES
- Manufacturer part #
- SMBJ64A-13-F
- Store part #
- C135092
- Package / case
- SMB
- Category
- TVS Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
400 in stock
#C135092
Stock & price checked 9 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹24.89 | ₹124.45 |
| 50+ | ₹24.36 | ₹1,218.00 |
| 150+ | ₹24.00 | ₹3,600.00 |
| 500+ | ₹23.64 | ₹11,820.00 |
5 × ₹24.89
₹124.45
excl. GST
₹146.85 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
SMBJ64A-13-F
₹124.45 for 5 + GST
Specifications
- Clamping Voltage
- 103V
- Operating Temperature
- -55℃~+150℃
- Peak Pulse Current (Ipp)
- 5.8A
- Peak Pulse Power Dissipation (Ppp)
- 600W
- Number of Channels
- 1
- Voltage - Breakdown
- 81.8V
- type
- TVS
- Polarity
- Unidirectional
- Reverse Leakage Current (Ir)
- 5uA
- Reverse Stand-Off Voltage (Vrwm)
- 64V
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.207 g
Overview
Key features
- 600W Peak Pulse Power Dissipation
- 5.0V to 200V Standoff Voltages
- Glass Passivated Die Construction
- Uni- and Bi- Directional Versions Available
- Excellent Clamping Capability
- Lead-Free Finish; RoHS Compliant
- Halogen and Antimony Free. "Green" Device
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | SMBJ64A#C5353281FOSAN · SMB(DO-214AA) | FOSAN | SMB(DO-214AA) | 1,860 | ₹5.19 · 1,860 in stock | View |
 | SMBJ64A#C19077594R+O · DO-214AA(SMB) | R+O | DO-214AA(SMB) | 27,550 | ₹5.65 · 27,550 in stock | View |
 | SMBJ64A#C41410896DIYI Elec Tech · SMB(DO-214AA) | DIYI Elec Tech | SMB(DO-214AA) | 80 | ₹4.52 · 80 in stock | View |
 | SMBJ64A#C52817001TECH PUBLIC · SMB | TECH PUBLIC | SMB | 3,990 | ₹5.90 · 3,990 in stock | View |
 | SMBJ64A#C7527426Jiangsu JieJie Microelectronics · DO-214AA(SMB) | Jiangsu JieJie Microelectronics | DO-214AA(SMB) | 2,260 | ₹6.23 · 2,260 in stock | View |
