DIODESDatasheet (PDF)

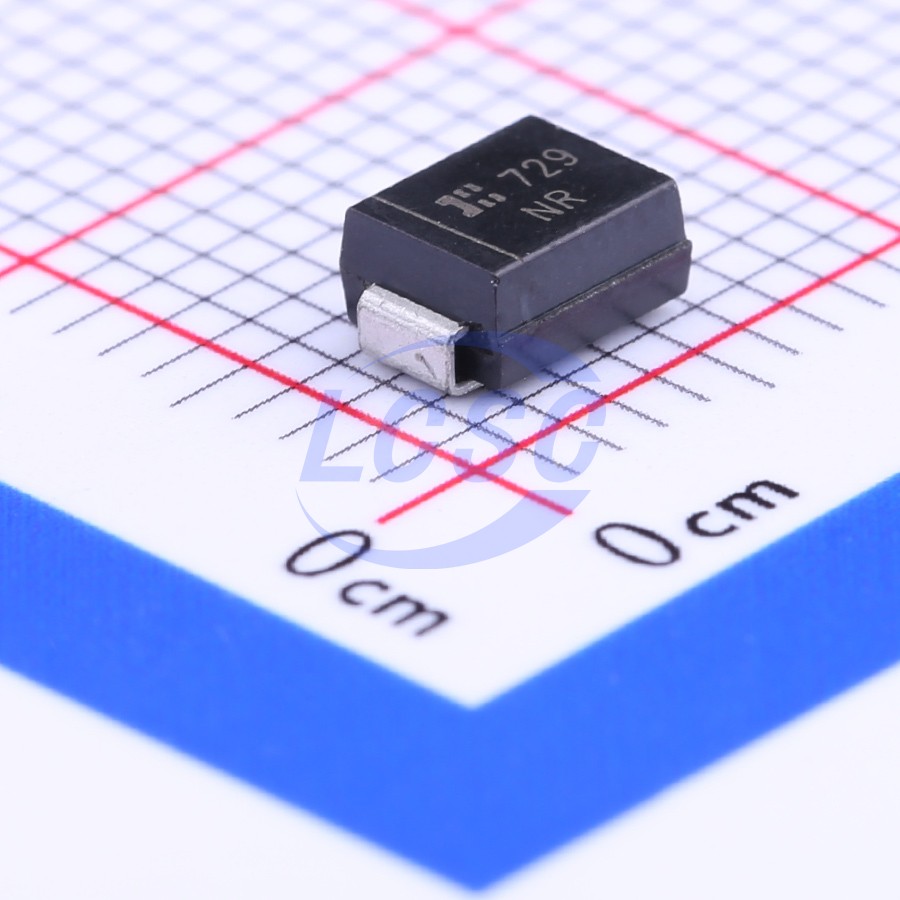

SMBJ75A-13-F
121VC Clamp 4.9A Ipp TVS DIODE SMB
SMBROHS3 CompliantActive
TVS DIODE 75VWM 121VC SMB
- Manufacturer
- DIODES
- Manufacturer part #
- SMBJ75A-13-F
- Store part #
- C135100
- Package / case
- SMB
- Category
- TVS Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,115 in stock
#C135100
Stock & price checked 8 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹38.47 | ₹192.35 |
| 50+ | ₹30.55 | ₹1,527.50 |
| 150+ | ₹27.15 | ₹4,072.50 |
| 500+ | ₹22.90 | ₹11,450.00 |
| 3,000+ | ₹21.02 | ₹63,060.00 |
| 6,000+ | ₹19.88 | ₹1,19,280.00 |
5 × ₹38.47
₹192.35
excl. GST
₹226.97 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
SMBJ75A-13-F
₹192.35 for 5 + GST
Specifications
- Clamping Voltage
- 121V
- Operating Temperature
- -55℃~+150℃
- Peak Pulse Current (Ipp)
- 4.9A
- Peak Pulse Power Dissipation (Ppp)
- 600W
- Number of Channels
- 1
- Voltage - Breakdown
- 95.8V
- type
- TVS
- Reverse Leakage Current (Ir)
- 5uA
- Polarity
- Unidirectional
- Reverse Stand-Off Voltage (Vrwm)
- 75V
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.207 g
Overview
Key features
- 600W Peak Pulse Power Dissipation
- 5.0V to 200V Standoff Voltages
- Glass Passivated Die Construction
- Uni- and Bi- Directional Versions Available
- Excellent Clamping Capability
- Lead-Free Finish; RoHS Compliant
- Halogen and Antimony Free. "Green" Device
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | SMBJ75A#C5353283FOSAN · SMB | FOSAN | SMB | 3,000 | ₹5.00 · 3,000 in stock | View |
 | SMBJ75A#C49066956R+O · SMB(DO-214AA) | R+O | SMB(DO-214AA) | 8,110 | ₹9.10 · 8,110 in stock | View |
 | SMBJ75A#C2848706GOODWORK · DO-214AA(SMB) | GOODWORK | DO-214AA(SMB) | 4,750 | ₹5.65 · 4,750 in stock | View |
 | SMBJ75A#C698986YANGJIE · DO-214AA(SMB) | YANGJIE | DO-214AA(SMB) | 1,380 | ₹7.49 · 1,380 in stock | View |
 | SMBJ75A#C10228RUILON · DO-214AA(SMB) | RUILON | DO-214AA(SMB) | 2,230 | ₹12.13 · 2,230 in stock | View |
