DIODESDatasheet (PDF)

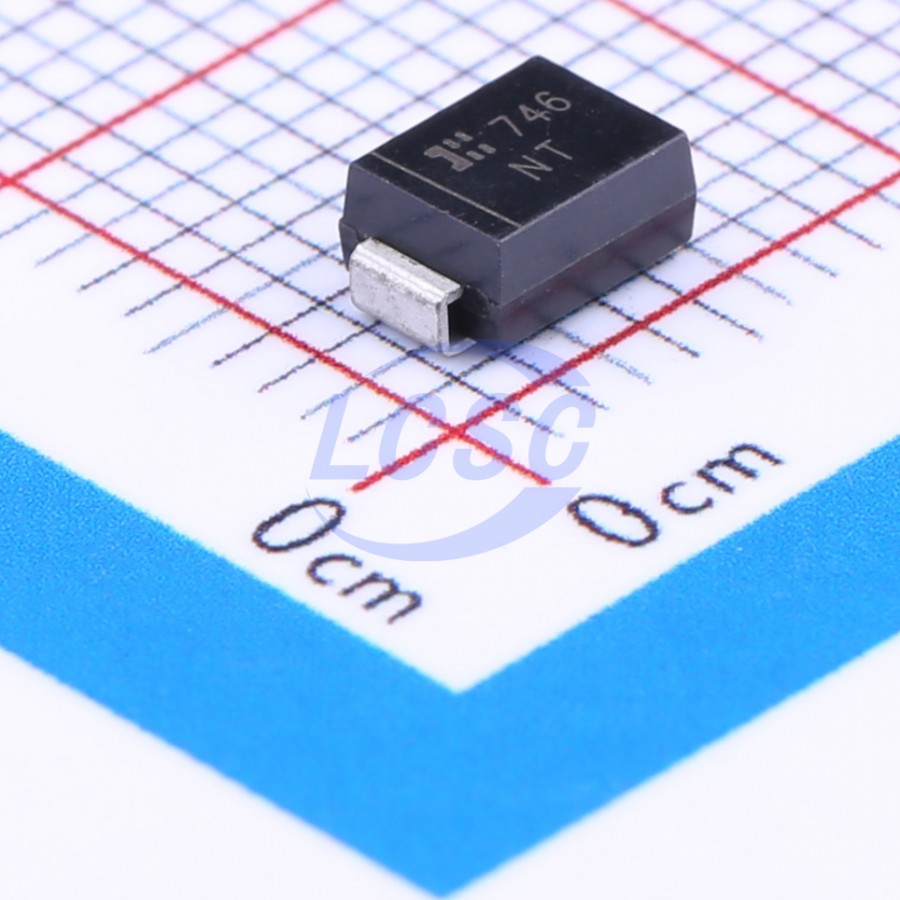

SMBJ78A-13-F
126VC Clamp 4.7A Ipp TVS DIODE SMB
SMBROHS3 CompliantActive
TVS DIODE 78VWM 126VC SMB
- Manufacturer
- DIODES
- Manufacturer part #
- SMBJ78A-13-F
- Store part #
- C135102
- Package / case
- SMB
- Category
- TVS Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
210 in stock
#C135102
Stock & price checked 9 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹22.46 | ₹112.30 |
| 50+ | ₹17.83 | ₹891.50 |
| 150+ | ₹15.85 | ₹2,377.50 |
| 500+ | ₹13.38 | ₹6,690.00 |
| 3,000+ | ₹12.28 | ₹36,840.00 |
| 6,000+ | ₹11.62 | ₹69,720.00 |
5 × ₹22.46
₹112.30
excl. GST
₹132.51 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
SMBJ78A-13-F
₹112.30 for 5 + GST
Specifications
- Clamping Voltage
- 126V
- Operating Temperature
- -55℃~+150℃
- Peak Pulse Current (Ipp)
- 4.7A
- Peak Pulse Power Dissipation (Ppp)
- 600W
- Number of Channels
- 1
- Voltage - Breakdown
- 99.7V
- type
- TVS
- Polarity
- Unidirectional
- Reverse Leakage Current (Ir)
- 5uA
- Reverse Stand-Off Voltage (Vrwm)
- 78V
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.207 g
Overview
Key features
- 600W Peak Pulse Power Dissipation
- 5.0V to 200V Standoff Voltages
- Glass Passivated Die Construction
- Uni- and Bi- Directional Versions Available
- Excellent Clamping Capability
- Lead-Free Finish; RoHS Compliant
- Halogen and Antimony Free. "Green" Device
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | SMBJ78A#C5353284FOSAN · SMB(DO-214AA) | FOSAN | SMB(DO-214AA) | 3,780 | ₹5.13 · 3,780 in stock | View |
 | SMBJ78A#C2922201GOODWORK · DO-214AA(SMB) | GOODWORK | DO-214AA(SMB) | 3,260 | ₹5.34 · 3,260 in stock | View |
 | SMBJ78A#C50325431R+O · SMB | R+O | SMB | 8,170 | ₹6.27 · 8,170 in stock | View |
 | SMBJ78A-E3/52#C1975230VISHAY · SMB(DO-214AA) | VISHAY | SMB(DO-214AA) | 590 | ₹23.95 · 590 in stock | View |
 | SMBJ78A#C5161394ZHIDE · DO-214AA(SMB) | ZHIDE | DO-214AA(SMB) | 10 | ₹9.16 · 10 in stock | View |
