DIODESDatasheet (PDF)

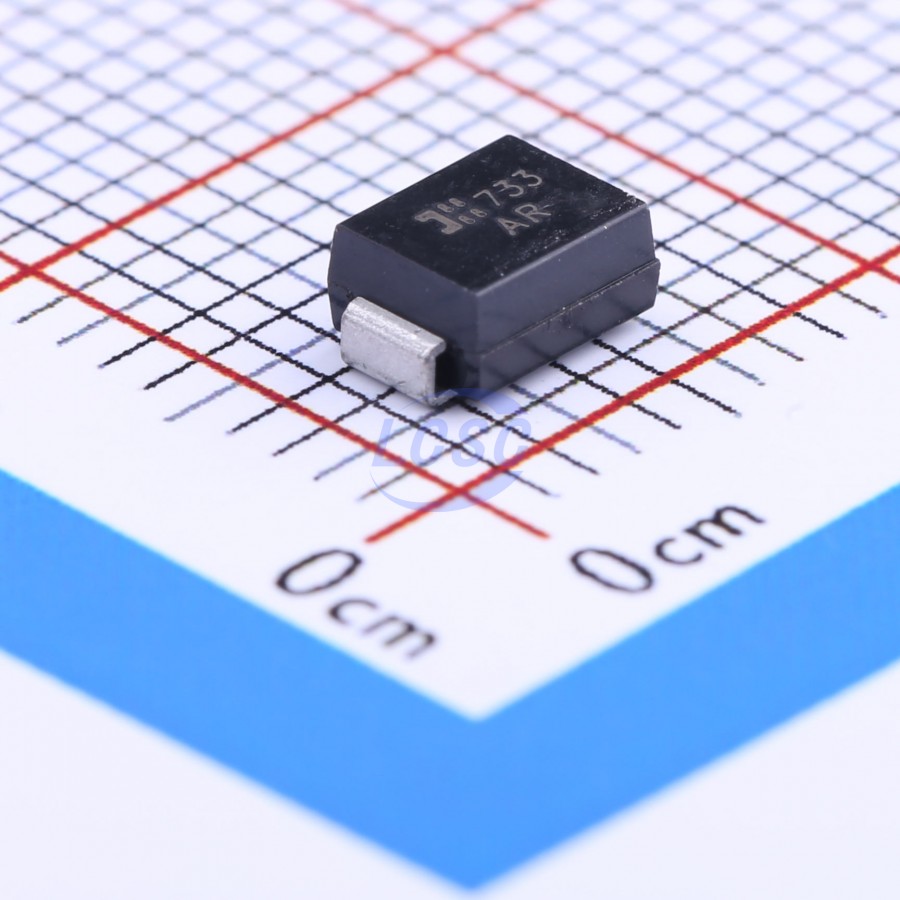

SMBJ8.0CA-13-F
13.6VC Clamp 44.1A Ipp TVS DIODE SMB
SMBROHS3 CompliantActive
TVS DIODE 8VWM 13.6VC SMB
- Manufacturer
- DIODES
- Manufacturer part #
- SMBJ8.0CA-13-F
- Store part #
- C135105
- Package / case
- SMB
- Category
- TVS Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
175 in stock
#C135105
Stock & price checked 9 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹29.57 | ₹147.85 |
| 50+ | ₹24.14 | ₹1,207.00 |
| 150+ | ₹21.83 | ₹3,274.50 |
| 500+ | ₹18.93 | ₹9,465.00 |
| 3,000+ | ₹17.65 | ₹52,950.00 |
| 6,000+ | ₹16.87 | ₹1,01,220.00 |
5 × ₹29.57
₹147.85
excl. GST
₹174.46 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
SMBJ8.0CA-13-F
₹147.85 for 5 + GST
Specifications
- Clamping Voltage
- 13.6V
- Operating Temperature
- -55℃~+150℃
- Peak Pulse Current (Ipp)
- 44.1A
- Peak Pulse Power Dissipation (Ppp)
- 600W
- Number of Channels
- 1
- Voltage - Breakdown
- 10.23V
- type
- TVS
- Reverse Leakage Current (Ir)
- 50uA
- Polarity
- Bidirectional
- Reverse Stand-Off Voltage (Vrwm)
- 8V
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.207 g
Overview
Key features
- 600W Peak Pulse Power Dissipation
- 5.0V to 200V Standoff Voltages
- Glass Passivated Die Construction
- Uni- and Bi- Directional Versions Available
- Excellent Clamping Capability
- Lead-Free Finish; RoHS Compliant
- Halogen and Antimony Free. "Green" Device
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | SMBJ8.0CA-E3/52#C1973916VISHAY · SMB(DO-214AA) | VISHAY | SMB(DO-214AA) | 15 | ₹45.52 · 15 in stock | View |
 | SMBJ8.0CA#C5353202FOSAN · SMB(DO-214AA) | FOSAN | SMB(DO-214AA) | 5,300 | ₹5.17 · 5,300 in stock | View |
 | SMBJ8.0CA#C42368005DIYI Elec Tech · SMB(DO-214AA) | DIYI Elec Tech | SMB(DO-214AA) | 180 | ₹4.30 · 180 in stock | View |
 | SMBJ8.0CA#C41376100R+O · DO-214AA(SMB) | R+O | DO-214AA(SMB) | 29,940 | ₹6.64 · 29,940 in stock | View |
 | SMBJ8.0CA#C20623786Brightking · SMB(DO-214AA) | Brightking | SMB(DO-214AA) | 380 | ₹7.06 · 380 in stock | View |
