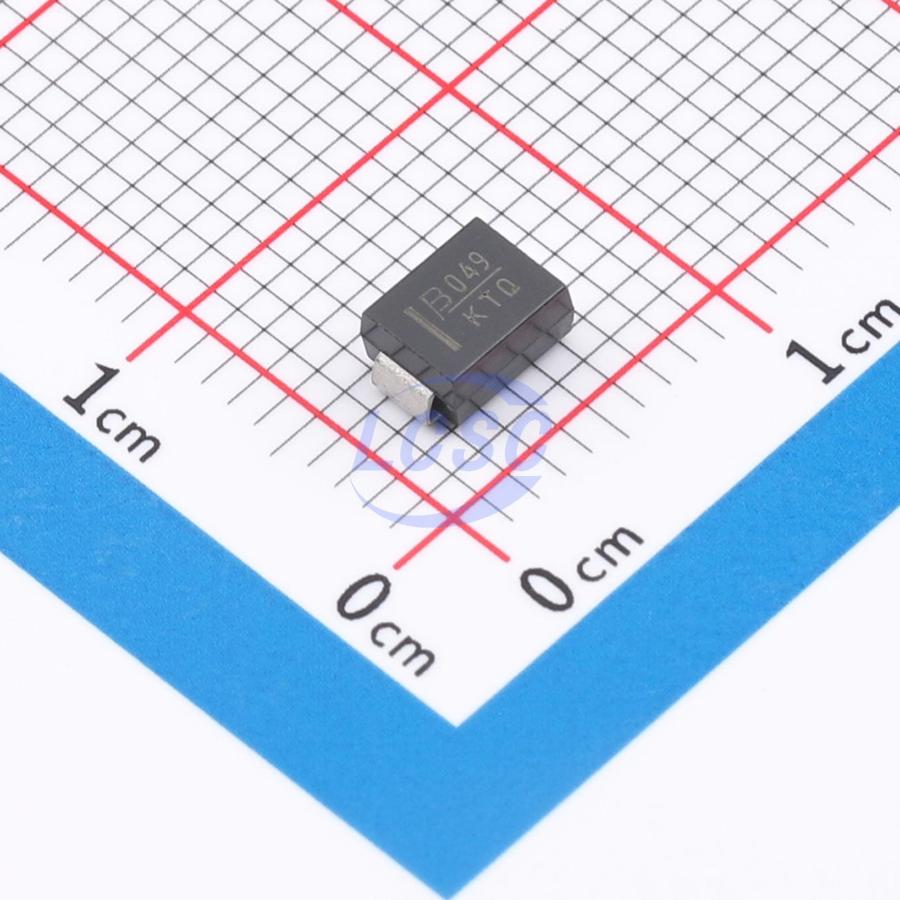

SMBJ8.5A-QH
18.7VC Clamp 208.5A@8/20us Ipp TVS DIODE SMB(DO-214AA)
TVS DIODE 8.5VWM 18.7VC SMB(DO-214AA)
- Manufacturer
- BOURNS
- Manufacturer part #
- SMBJ8.5A-QH
- Store part #
- C1518368
- Package / case
- SMB(DO-214AA)
- Category
- TVS Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
40 in stock
#C1518368
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹71.36 | ₹71.36 |
| 10+ | ₹70.08 | ₹700.80 |
| 30+ | ₹69.22 | ₹2,076.60 |
| 100+ | ₹68.57 | ₹6,857.00 |
1 × ₹71.36
₹71.36
excl. GST
₹84.20 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
SMBJ8.5A-QH
₹71.36 for 1 + GST
Specifications
- Clamping Voltage
- 18.7V
- Operating Temperature
- -55℃~+150℃
- Peak Pulse Current (Ipp)
- 208.5A@8/20us
- Peak Pulse Power Dissipation (Ppp)
- 600W
- Number of Channels
- 1
- Voltage - Breakdown
- 11.1V
- type
- TVS
- Polarity
- Unidirectional
- Reverse Leakage Current (Ir)
- 20uA
- Reverse Stand-Off Voltage (Vrwm)
- 8.5V
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.325 g
Overview
Bourns offers Transient Voltage Suppressor Diodes for surge and ESD protection applications, in compact chip package DO-214AA (SMB) size format. The Transient Voltage Suppressor series offers a choice of Working Peak Reverse Voltage from 5 V up to 220 V. Typical fast response times are less than 1.0 picosecond from 0 to Breakdown Voltage.
Applications
- Protection of power buses
- Protection of I/O interfaces
- Overvoltage transient protection
- Entertainment applications
- Comfort applications
- Telecom, computer, industrial and consumer electronics applications
Key features
- Surface Mount SMB package
- Standoff Voltage: 5 to 220 volts
- Power Dissipation: 600 watts
- RoHS compliant
- AEC-Q101 compliant
