DIODESDatasheet (PDF)

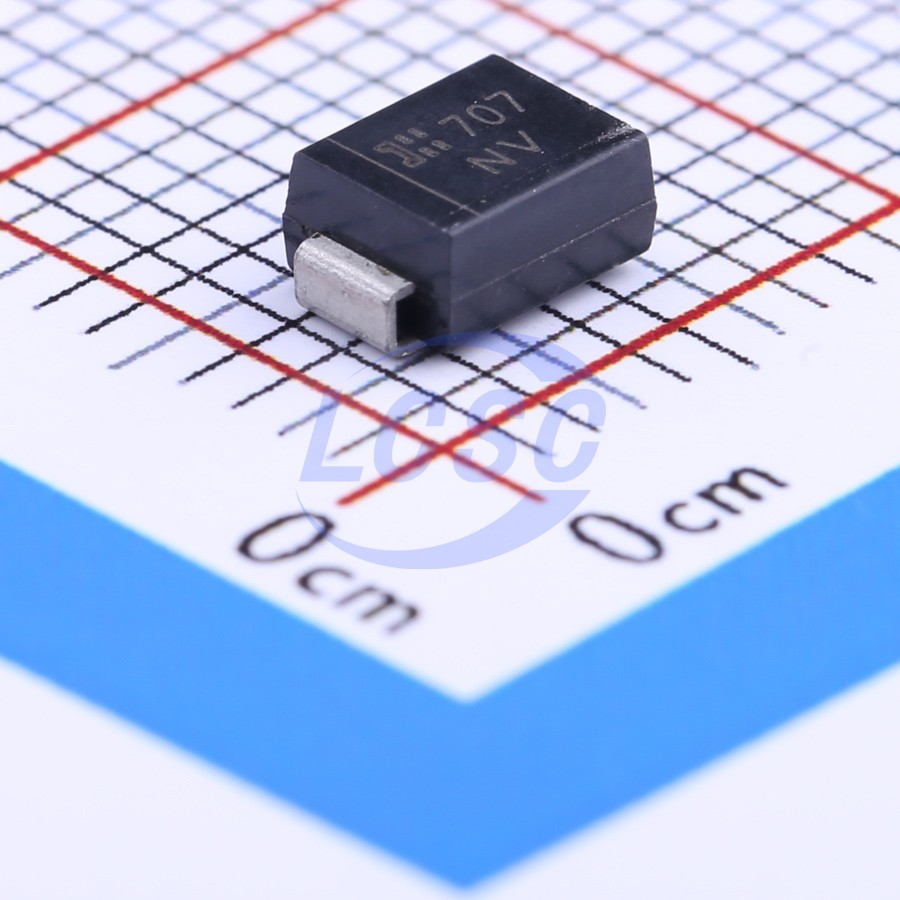

SMBJ85A-13-F
137VC Clamp 4.4A Ipp TVS DIODE SMB
SMBROHS3 CompliantActive
TVS DIODE 85VWM 137VC SMB
- Manufacturer
- DIODES
- Manufacturer part #
- SMBJ85A-13-F
- Store part #
- C135108
- Package / case
- SMB
- Category
- TVS Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
350 in stock
#C135108
Stock & price checked 9 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹24.71 | ₹123.55 |
| 50+ | ₹20.03 | ₹1,001.50 |
| 150+ | ₹18.02 | ₹2,703.00 |
| 500+ | ₹15.52 | ₹7,760.00 |
| 3,000+ | ₹14.41 | ₹43,230.00 |
| 6,000+ | ₹13.73 | ₹82,380.00 |
5 × ₹24.71
₹123.55
excl. GST
₹145.79 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
SMBJ85A-13-F
₹123.55 for 5 + GST
Specifications
- Clamping Voltage
- 137V
- Operating Temperature
- -55℃~+150℃
- Peak Pulse Current (Ipp)
- 4.4A
- Peak Pulse Power Dissipation (Ppp)
- 600W
- Number of Channels
- 1
- Voltage - Breakdown
- 108.2V
- type
- TVS
- Polarity
- Unidirectional
- Reverse Leakage Current (Ir)
- 5uA
- Reverse Stand-Off Voltage (Vrwm)
- 85V
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.207 g
Overview
Key features
- 600W Peak Pulse Power Dissipation
- 5.0V to 200V Standoff Voltages
- Glass Passivated Die Construction
- Uni- and Bi- Directional Versions Available
- Excellent Clamping Capability
- Lead-Free Finish; RoHS Compliant
- Halogen and Antimony Free. "Green" Device
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | SMBJ85A#C5353285FOSAN · SMB(DO-214AA) | FOSAN | SMB(DO-214AA) | 4,120 | ₹5.17 · 4,120 in stock | View |
 | SMBJ85A#C49066958R+O · SMB(DO-214AA) | R+O | SMB(DO-214AA) | 8,510 | ₹4.83 · 8,510 in stock | View |
| SMBJ85A#C20883342OTW · SMB(DO-214AA) | OTW | SMB(DO-214AA) | 20 | ₹5.19 · 20 in stock | View | |
 | SMBJ85A#C49242990PDW · SMB(DO-214AA) | PDW | SMB(DO-214AA) | 980 | ₹4.99 · 980 in stock | View |
 | SMBJ85A#C5162572ZHIDE · DO-214AA(SMB) | ZHIDE | DO-214AA(SMB) | 280 | ₹10.73 · 280 in stock | View |
