DIODESDatasheet (PDF)

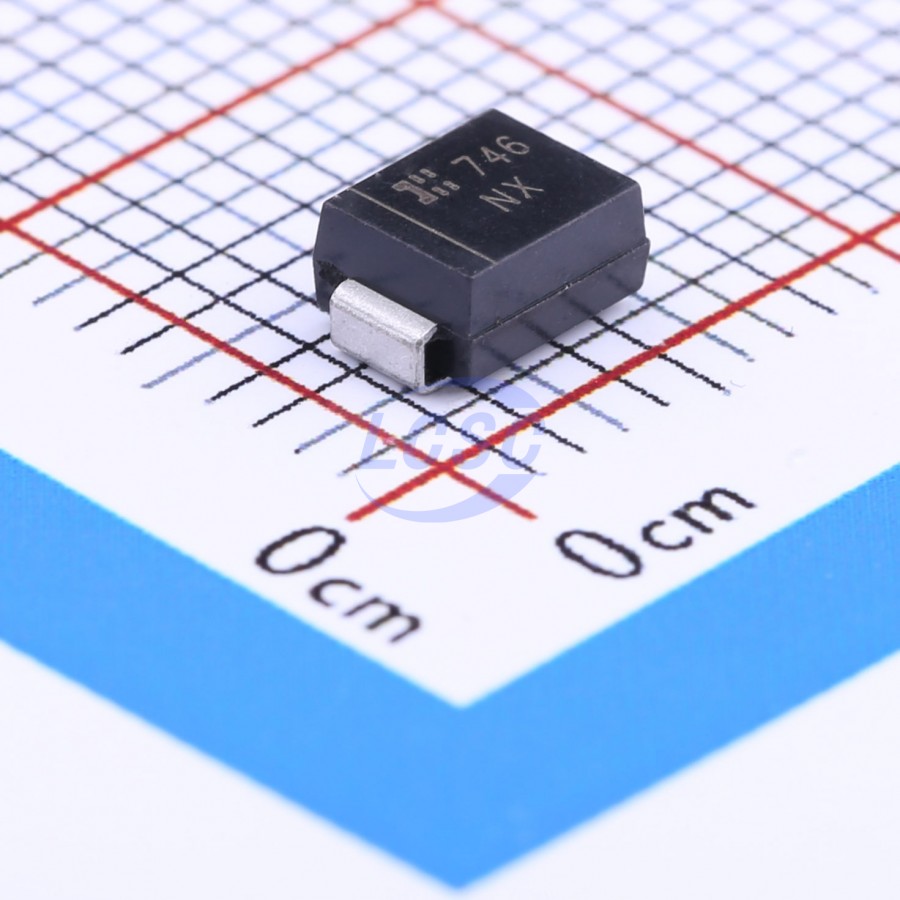

SMBJ90A-13-F
146VC Clamp 4.1A Ipp TVS DIODE SMB
SMBROHS3 CompliantActive
TVS DIODE 90VWM 146VC SMB
- Manufacturer
- DIODES
- Manufacturer part #
- SMBJ90A-13-F
- Store part #
- C135112
- Package / case
- SMB
- Category
- TVS Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,220 in stock
#C135112
Stock & price checked 8 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹40.18 | ₹200.90 |
| 50+ | ₹33.54 | ₹1,677.00 |
| 150+ | ₹30.71 | ₹4,606.50 |
| 500+ | ₹27.16 | ₹13,580.00 |
| 3,000+ | ₹25.57 | ₹76,710.00 |
| 6,000+ | ₹24.63 | ₹1,47,780.00 |
5 × ₹40.18
₹200.90
excl. GST
₹237.06 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
SMBJ90A-13-F
₹200.90 for 5 + GST
Specifications
- Clamping Voltage
- 146V
- Operating Temperature
- -55℃~+150℃
- Peak Pulse Current (Ipp)
- 4.1A
- Peak Pulse Power Dissipation (Ppp)
- 600W
- Number of Channels
- 1
- Voltage - Breakdown
- 115.5V
- type
- TVS
- Reverse Leakage Current (Ir)
- 5uA
- Polarity
- Unidirectional
- Reverse Stand-Off Voltage (Vrwm)
- 90V
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.207 g
Overview
Key features
- 600W Peak Pulse Power Dissipation
- 5.0V to 200V Standoff Voltages
- Glass Passivated Die Construction
- Uni- and Bi- Directional Versions Available
- Excellent Clamping Capability
- Lead-Free Finish; RoHS Compliant
- Halogen and Antimony Free. "Green" Device
