DIODESDatasheet (PDF)

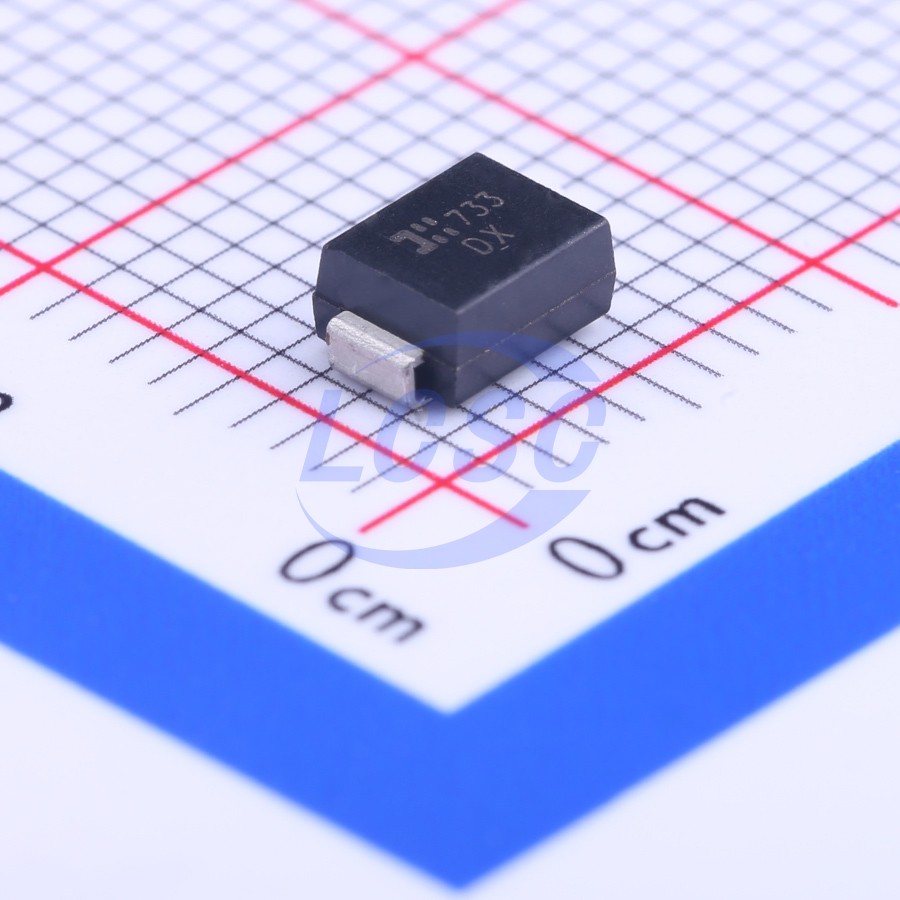

SMBJ90CA-13-F
146VC Clamp 4.1A Ipp TVS DIODE SMB
SMBROHS CompliantActive
TVS DIODE 90VWM 146VC SMB
- Manufacturer
- DIODES
- Manufacturer part #
- SMBJ90CA-13-F
- Store part #
- C135113
- Package / case
- SMB
- Category
- TVS Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
10 in stock
#C135113
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹17.71 | ₹88.55 |
| 50+ | ₹17.38 | ₹869.00 |
| 150+ | ₹17.17 | ₹2,575.50 |
| 500+ | ₹16.95 | ₹8,475.00 |
5 × ₹17.71
₹88.55
excl. GST
₹104.49 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
SMBJ90CA-13-F
₹88.55 for 5 + GST
Specifications
- Clamping Voltage
- 146V
- Operating Temperature
- -55℃~+150℃
- Peak Pulse Current (Ipp)
- 4.1A
- Peak Pulse Power Dissipation (Ppp)
- 600W
- Number of Channels
- 1
- Voltage - Breakdown
- 115.5V
- type
- TVS
- Reverse Leakage Current (Ir)
- 5uA
- Polarity
- Bidirectional
- Reverse Stand-Off Voltage (Vrwm)
- 90V
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.24 g
Overview
Key features
- 600W Peak Pulse Power Dissipation
- 5.0V to 200V Standoff Voltages
- Glass Passivated Die Construction
- Uni- and Bi- Directional Versions Available
- Excellent Clamping Capability
- Lead-Free Finish; RoHS Compliant
- Halogen and Antimony Free. "Green" Device
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | SMBJ90CA#C173544MDD(Microdiode Semiconductor) · DO-214AA(SMB) | MDD(Microdiode Semiconductor) | DO-214AA(SMB) | 10 | ₹8.78 · 10 in stock | View |
 | SMBJ90CA#C3720882BOURNS · SMB(DO-214AA) | BOURNS | SMB(DO-214AA) | 90 | ₹71.80 · 90 in stock | View |
 | SMBJ90CA#C5353235FOSAN · SMB(DO-214AA) | FOSAN | SMB(DO-214AA) | 1,980 | ₹5.00 · 1,980 in stock | View |
 | SMBJ90CA#C41376398R+O · DO-214AA(SMB) | R+O | DO-214AA(SMB) | 27,080 | ₹6.24 · 27,080 in stock | View |
| SMBJ90CA#C20883203OTW · SMB(DO-214AA) | OTW | SMB(DO-214AA) | 20 | ₹5.05 · 20 in stock | View | |
