DIODESDatasheet (PDF)

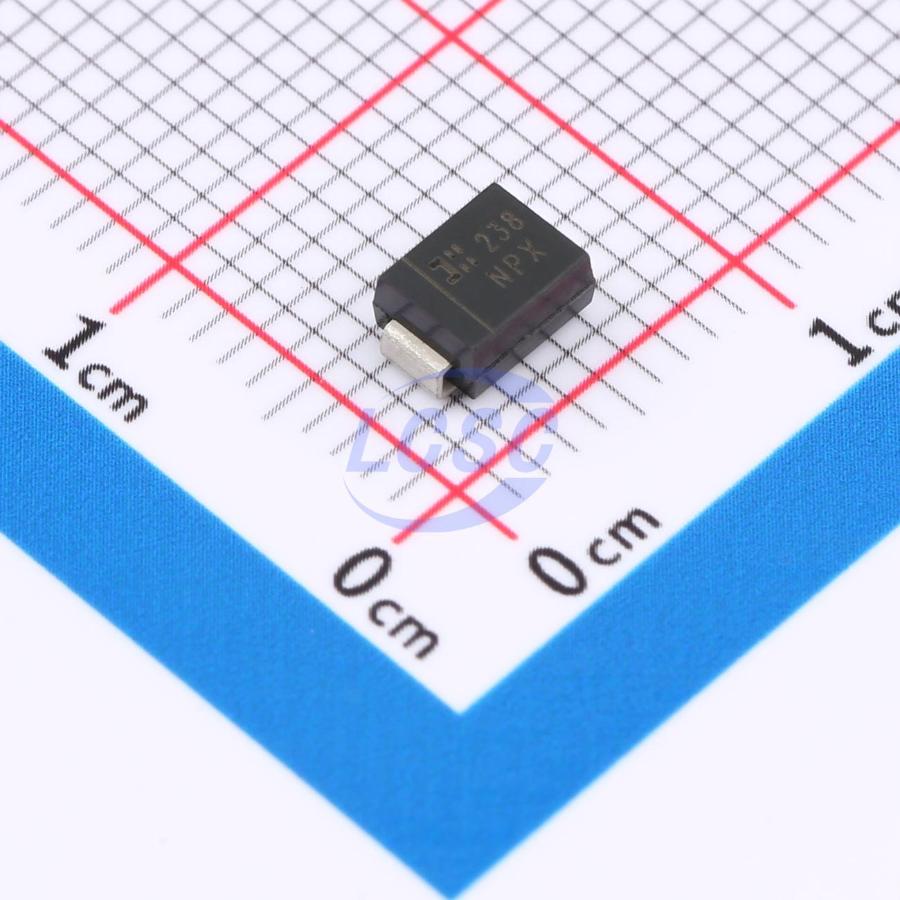

SMBT70A-13-F
100VC Clamp 5.3A Ipp TVS DIODE SMB(DO-214AA)
SMB(DO-214AA)ROHS3 CompliantActive
TVS DIODE 70VWM 100VC SMB(DO-214AA)
- Manufacturer
- DIODES
- Manufacturer part #
- SMBT70A-13-F
- Store part #
- C135114
- Package / case
- SMB(DO-214AA)
- Category
- TVS Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
602 in stock
#C135114
Stock & price checked 9 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹121.97 | ₹121.97 |
| 10+ | ₹99.36 | ₹993.60 |
| 30+ | ₹88.06 | ₹2,641.80 |
| 100+ | ₹76.97 | ₹7,697.00 |
| 500+ | ₹70.22 | ₹35,110.00 |
| 1,000+ | ₹66.75 | ₹66,750.00 |
1 × ₹121.97
₹121.97
excl. GST
₹143.92 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
SMBT70A-13-F
₹121.97 for 1 + GST
Specifications
- Clamping Voltage
- 100V
- Operating Temperature
- -55℃~+150℃
- Peak Pulse Current (Ipp)
- 5.3A
- Peak Pulse Power Dissipation (Ppp)
- 600W
- Number of Channels
- 1
- Voltage - Breakdown
- 89.5V
- type
- TVS
- Polarity
- Unidirectional
- Reverse Leakage Current (Ir)
- 5uA
- Reverse Stand-Off Voltage (Vrwm)
- 70V
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.201 g
Overview
Key features
- 400, 600W Peak Pulse Power Dissipation
- 70V Standoff Voltage
- 100V Maximum Clamping Voltage
- Suitable for 48V Backplane Telecom Applications
- Glass Passivated Die Construction
- Fast Response Time: Typically Less than 1ps
- Lead-Free Finish; RoHS Compliant Halogen and Antimony Free. “Green” Device
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | SMBJ70AQ-13-F#C5249242DIODES · SMB | DIODES | SMB | 5 | ₹36.71 · 5 in stock | View |
 | SMBJ70A#C5353282FOSAN · SMB(DO-214AA) | FOSAN | SMB(DO-214AA) | 9,620 | ₹5.38 · 9,620 in stock | View |
 | SMBJ70A#C698974YANGJIE · DO-214AA(SMB) | YANGJIE | DO-214AA(SMB) | On request | ₹13.14 · 0 in stock | View |
 | SMBJ70A#C49066954R+O · SMB(DO-214AA) | R+O | SMB(DO-214AA) | 7,630 | ₹6.87 · 7,630 in stock | View |
 | SMBJ70A#C152089BORN · DO-214AA(SMB) | BORN | DO-214AA(SMB) | 10,700 | ₹9.37 · 10,700 in stock | View |
