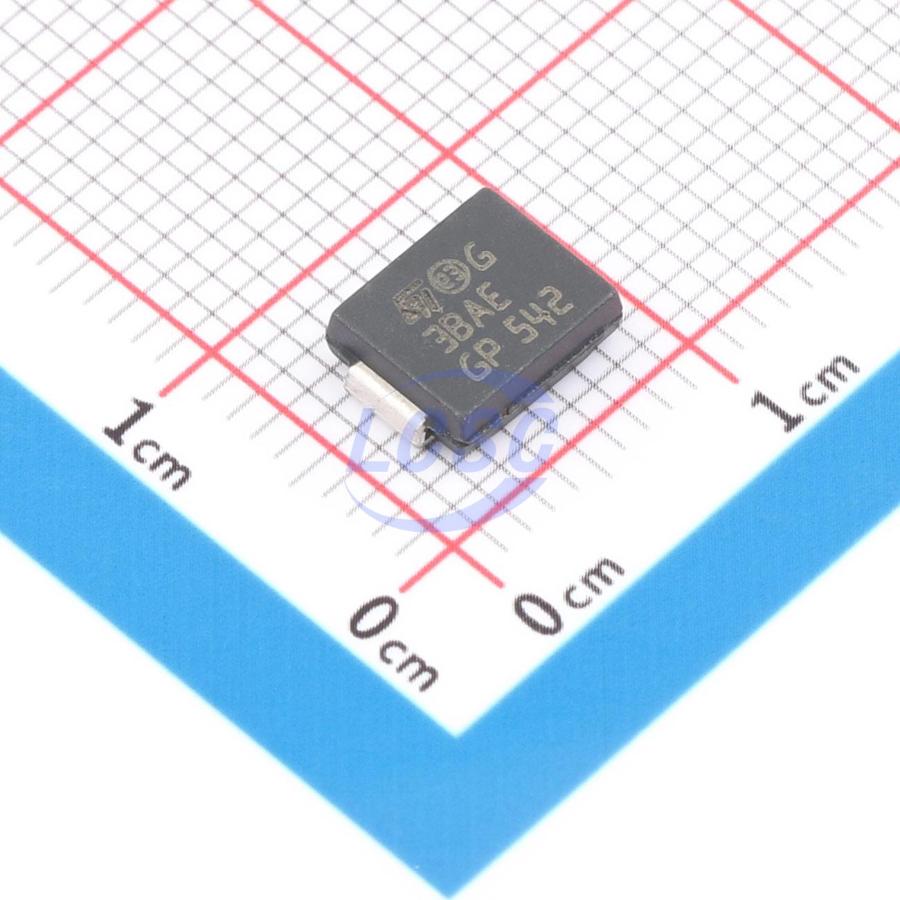

SMC30J24CA
50VC Clamp 660A@8/20us Ipp TVS DIODE SMC
- Manufacturer
- ST
- Manufacturer part #
- SMC30J24CA
- Store part #
- C1976202
- Package / case
- SMC
- Category
- TVS Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
15 in stock
#C1976202
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹415.47 | ₹415.47 |
| 10+ | ₹409.89 | ₹4,098.90 |
| 30+ | ₹406.03 | ₹12,180.90 |
| 100+ | ₹402.36 | ₹40,236.00 |
1 × ₹415.47
₹415.47
excl. GST
₹490.25 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
SMC30J24CA
₹415.47 for 1 + GST
Specifications
- Clamping Voltage
- 50V
- Operating Temperature
- -55℃~+175℃
- Peak Pulse Current (Ipp)
- 660A@8/20us
- Peak Pulse Power Dissipation (Ppp)
- 36kW@8/20us
- Number of Channels
- 1
- Voltage - Breakdown
- 28.1V
- type
- TVS
- Polarity
- Bidirectional
- Reverse Leakage Current (Ir)
- 200nA
- Reverse Stand-Off Voltage (Vrwm)
- 24V
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.001 g
Overview
The SMC30J TVS series are designed to protect sensitive equipment against electrostatic discharges according to IEC 61000-4-2, MIL STD 883 Method 3015, and electrical overstress such as IEC 61000-4-4 and 5. They are used for surges below 3000 W 10/1000 μs. This planar technology makes it compatible with high-end equipment and SMPS where low leakage current and high junction temperature are required to provide reliability and stability over time.
Key features
- Peak pulse power: 3000 W (10/1000 μs) up to 36 kW (8/20 μs)
- Stand-off voltage range from 5 V to 48 V
- Unidirectional and bidirectional types
- Low leakage current: 0.2 μA at 25 ℃
- Operating Tj max: 175 ℃
- JEDEC registered package outline
- Resin meets UL94, V0
- Lead finishing: matte tin plating
- UL94, V0
- J-STD-020 MSL level 1
- J-STD-002, JESD 22-B102 E3
- JESD-201 class 2 whisker test
- IPC7531 footprint and JEDEC registered package outline
- IEC 61000-4-4 level 4: 4 kV
- IEC 61000-4-2, C = 150 pF, R = 330 Ω exceeds level 4: 30 kV (air discharge) 30 kV (contact discharge)
