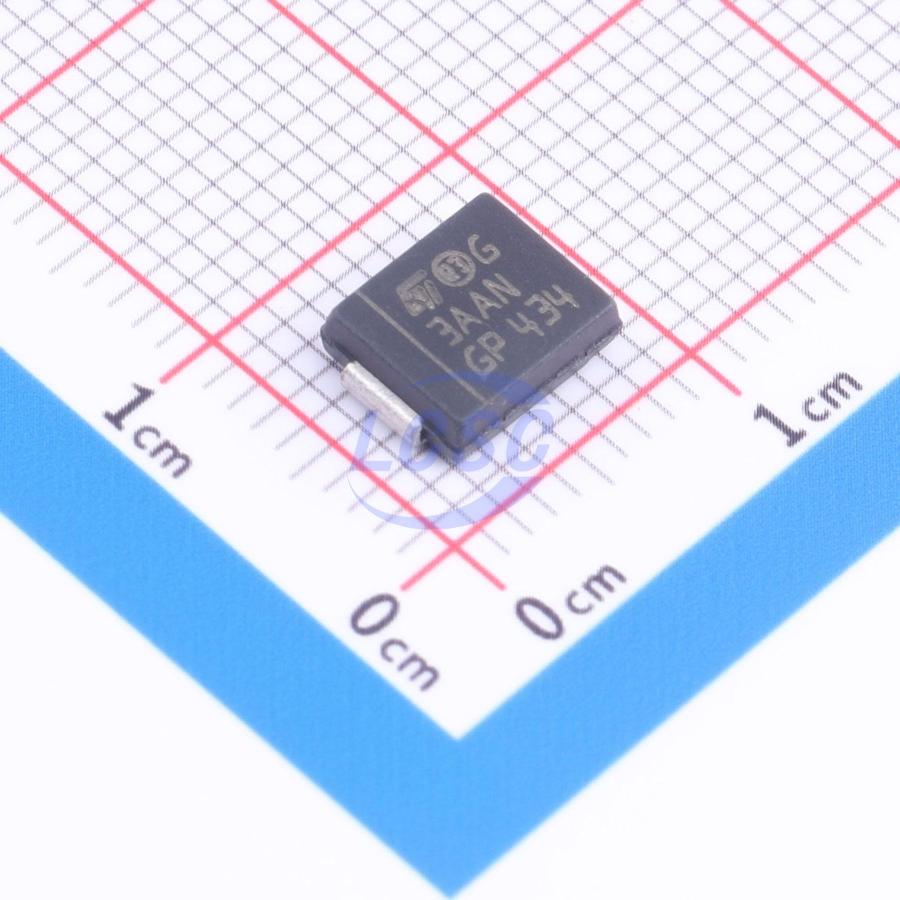

SMC30J28A
45.4VC Clamp 66A Ipp TVS DIODE SMC(DO-214AB)
- Manufacturer
- ST
- Manufacturer part #
- SMC30J28A
- Store part #
- C3710176
- Package / case
- SMC(DO-214AB)
- Category
- TVS Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
164 in stock
#C3710176
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹220.74 | ₹220.74 |
| 10+ | ₹216.88 | ₹2,168.80 |
| 30+ | ₹214.51 | ₹6,435.30 |
| 100+ | ₹211.93 | ₹21,193.00 |
1 × ₹220.74
₹220.74
excl. GST
₹260.47 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
SMC30J28A
₹220.74 for 1 + GST
Specifications
- Clamping Voltage
- 45.4V
- Operating Temperature
- -55℃~+175℃
- Peak Pulse Current (Ipp)
- 66A
- Peak Pulse Power Dissipation (Ppp)
- 3kW
- Number of Channels
- 1
- Voltage - Breakdown
- 31.1V
- type
- TVS
- Reverse Leakage Current (Ir)
- 200nA
- Polarity
- Unidirectional
- Reverse Stand-Off Voltage (Vrwm)
- 28V
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.348 g
Overview
The SMC30J TVS series are designed to protect sensitive equipment against electrostatic discharges according to IEC 61000-4-2, MIL STD 883 Method 3015, and electrical overstress such as IEC 61000-4-4 and 5. They are used for surges below 3000 W 10/1000 μs. This planar technology makes it compatible with high-end equipment and SMPS where low leakage current and high junction temperature are required to provide reliability and stability over time.
Key features
- Peak pulse power: 3000 W (10/1000 μs) up to 40 kW (8/20 μs)
- Stand-off voltage range from 5 V to 188 V
- Unidirectional and bidirectional types
- Low leakage current: 0.2 μA at 25 °C
- Operating Tj max: 175 °C
- JEDEC registered package outline
- Resin meets UL94, V0
- Lead finishing: matte tin plating
- UL94, V0
- J-STD-020 MSL level 1
- J-STD-002, JESD 22-B102 E3 and MIL-STD-750, method 2026
- JESD-201 class 2 whisker test
- IPC7531 footprint and JEDEC registered package outline
- IEC 61000-4-4 level 4: 4 kV
- IEC 61000-4-2, C = 150 pF, R = 330 Ω exceeds level 4: 30 kV (air discharge) 30 kV (contact discharge)
