VISHAYDatasheet (PDF)

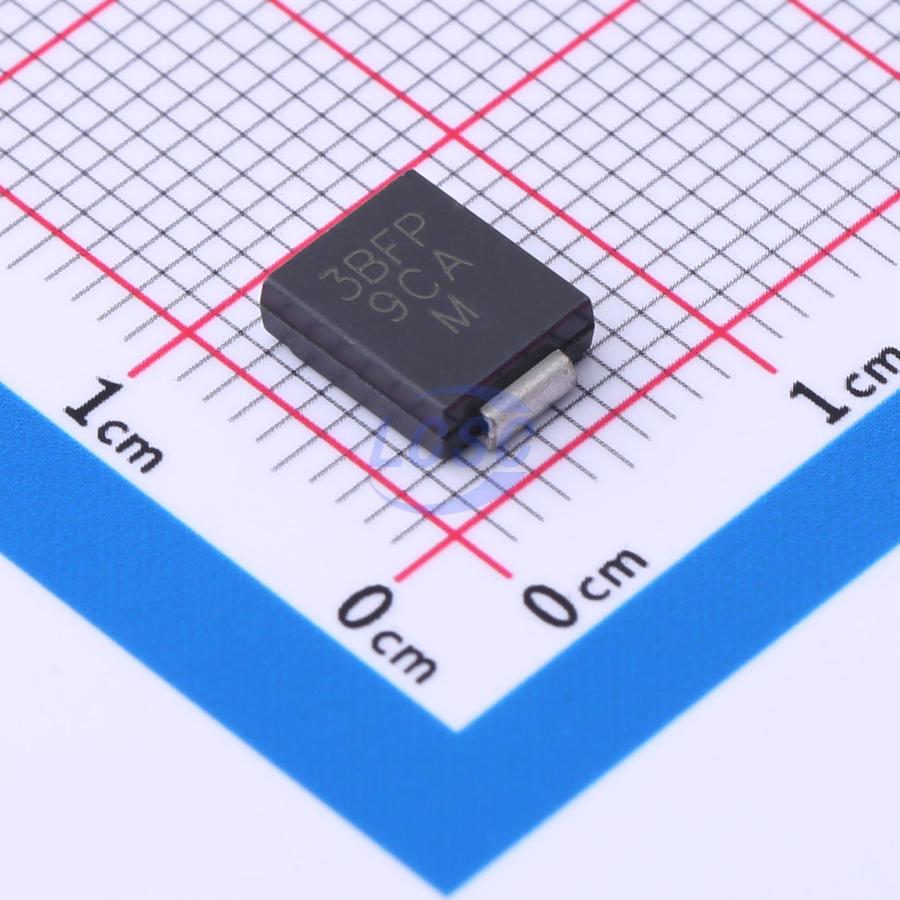

SMC3K36CA-M3/57
58.1VC Clamp 51.6A@10/1000us Ipp TVS DIODE SMC(DO-214AB)
SMC(DO-214AB)ROHS3 CompliantActive
TVS DIODE 36VWM 58.1VC SMC(DO-214AB)
- Manufacturer
- VISHAY
- Manufacturer part #
- SMC3K36CA-M3/57
- Store part #
- C1974435
- Package / case
- SMC(DO-214AB)
- Category
- TVS Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
7 in stock
#C1974435
Stock & price checked 4 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹263.20 | ₹263.20 |
| 10+ | ₹220.82 | ₹2,208.20 |
| 30+ | ₹194.32 | ₹5,829.60 |
| 100+ | ₹166.98 | ₹16,698.00 |
| 500+ | ₹154.66 | ₹77,330.00 |
| 850+ | ₹149.45 | ₹1,27,032.50 |
1 × ₹263.20
₹263.20
excl. GST
₹310.58 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 850 per reel
SMC3K36CA-M3/57
₹263.20 for 1 + GST
Specifications
- Clamping Voltage
- 58.1V
- Peak Pulse Current (Ipp)
- 51.6A@10/1000us
- Peak Pulse Power Dissipation (Ppp)
- 3kW@10/1000us
- Number of Channels
- 1
- Voltage - Breakdown
- 44.2V
- type
- TVS
- Reverse Leakage Current (Ir)
- 2uA
- Polarity
- Bidirectional
- Reverse Stand-Off Voltage (Vrwm)
- 36V
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 850 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.5 g
Overview
Applications
- Use in sensitive electronics protection against voltage transients induced by inductive load switching and lighting on ICs, MOSFET, signal lines of sensor units for consumer, computer, industrial, automotive and telecommunication.
Key features
- Available in bi-directional polarity only
- 3000 W peak pulse power capability with a RoHS (10/1000 μs) waveform COMPLIANT
- Excellent clamping capability HALOEEN
- Very fast response time
- Low incremental surge resistance
- Meets MSL level 1, per J-STD-020, LF maximum peak of 260 °C
- Not recommended for PCB bottom side wave mounting
- AEC-Q101 qualified
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | SMDJ36CA#C17703045MSKSEMI · SMC | MSKSEMI | SMC | 535 | ₹23.43 · 535 in stock | View |
 | SMDJ36CA#C224075Littelfuse · DO-214AB | Littelfuse | DO-214AB | 6,122 | ₹72.20 · 6,122 in stock | View |
 | SMDJ36CA#C2994128MDD(Microdiode Semiconductor) · SMC | MDD(Microdiode Semiconductor) | SMC | 2,850 | ₹32.77 · 2,850 in stock | View |
 | SMC3K36CAHM3/57#C3702917VISHAY · SMC(DO-214AB) | VISHAY | SMC(DO-214AB) | 19 | ₹427.91 · 19 in stock | View |
 | SMDJ36CA#C4154774TWGMC · DO-214AB(SMC) | TWGMC | DO-214AB(SMC) | 445 | ₹26.87 · 445 in stock | View |
