VISHAYDatasheet (PDF)

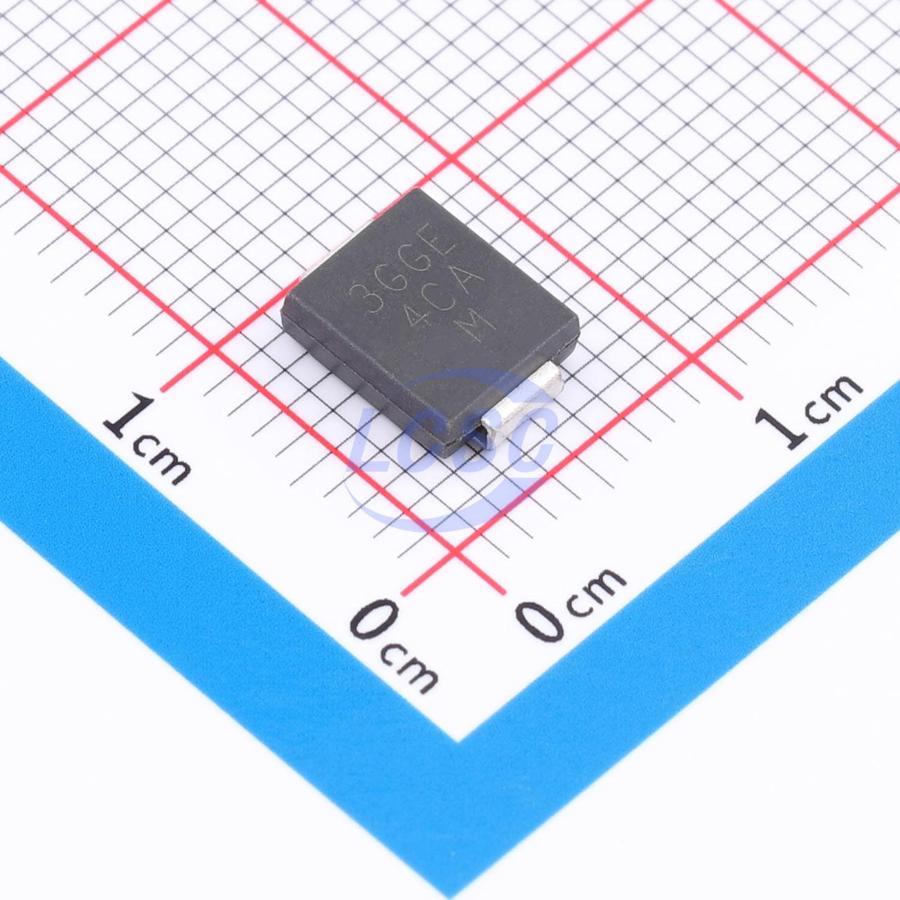

SMC3K54CAHM3_A/H
87.1VC Clamp 34.4A Ipp TVS DIODE SMC(DO-214AB)
SMC(DO-214AB)ROHS3 CompliantActive
TVS DIODE 54VWM 87.1VC SMC(DO-214AB)
- Manufacturer
- VISHAY
- Manufacturer part #
- SMC3K54CAHM3_A/H
- Store part #
- C3699333
- Package / case
- SMC(DO-214AB)
- Category
- TVS Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
7 in stock
#C3699333
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹377.44 | ₹377.44 |
| 10+ | ₹372.07 | ₹3,720.70 |
| 30+ | ₹368.42 | ₹11,052.60 |
| 100+ | ₹364.75 | ₹36,475.00 |
1 × ₹377.44
₹377.44
excl. GST
₹445.38 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 850 per reel
SMC3K54CAHM3_A/H
₹377.44 for 1 + GST
Specifications
- Clamping Voltage
- 87.1V
- Operating Temperature
- -55℃~+175℃
- Peak Pulse Current (Ipp)
- 34.4A
- Peak Pulse Power Dissipation (Ppp)
- 3kW
- Number of Channels
- 1
- Voltage - Breakdown
- 60V
- type
- TVS
- Reverse Leakage Current (Ir)
- 1uA
- Polarity
- Bidirectional
- Reverse Stand-Off Voltage (Vrwm)
- 54V
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 850 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.871 g
Overview
Applications
- Use in sensitive electronics protection against voltage transients induced by inductive load switching and lighting on ICs, MOSFET, signal lines of sensor units for consumer, computer, industrial, automotive and telecommunication.
Key features
- Bidirectional - Peak pulse power
- 3000 W (10/1000 μs)
- 30 kW (8/20 μs)
- Excellent clamping capability
- Very fast response time
- Low incremental surge resistance
- Meets MSL level 1, per J - STD - 020, LF maximum peak of 260℃
- AEC - Q101 qualified
- UL recognition for safety 497B with file number E136766
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | SMDJ54CA#C2990258Liown · SMC(DO-214AB) | Liown | SMC(DO-214AB) | 2,455 | ₹21.01 · 2,455 in stock | View |
 | SMDJ54CA#C2655426Littelfuse · DO-214AB | Littelfuse | DO-214AB | 348 | ₹67.16 · 348 in stock | View |
 | SMDJ54CA#C3007627SUNMATE Elec · SMC(DO-214AB) | SUNMATE Elec | SMC(DO-214AB) | 485 | ₹27.99 · 485 in stock | View |
 | SMDJ54CA#C52204470GOODWORK · SMC | GOODWORK | SMC | 200 | ₹41.49 · 200 in stock | View |
 | SMDJ54CA#C5364364DOWO · SMC(DO-214AB) | DOWO | SMC(DO-214AB) | 1,770 | ₹22.78 · 1,770 in stock | View |
