VISHAYDatasheet (PDF)

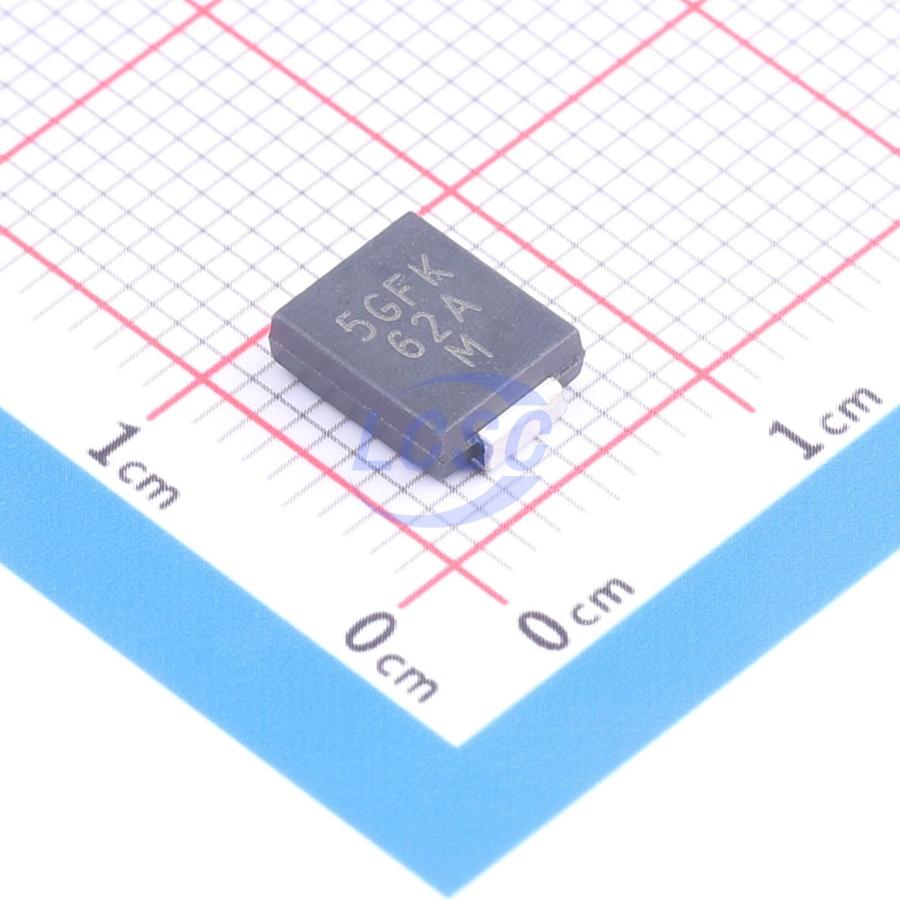

SMC5K30CA-M3/H
48.4VC Clamp 103A Ipp TVS DIODE DO-214AB(SMC)
DO-214AB(SMC)ROHS3 CompliantActive
- Manufacturer
- VISHAY
- Manufacturer part #
- SMC5K30CA-M3/H
- Store part #
- C3709746
- Package / case
- DO-214AB(SMC)
- Category
- TVS Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
28 in stock
#C3709746
Stock & price checked 10 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹444.71 | ₹444.71 |
| 10+ | ₹437.19 | ₹4,371.90 |
| 30+ | ₹432.03 | ₹12,960.90 |
| 100+ | ₹426.88 | ₹42,688.00 |
1 × ₹444.71
₹444.71
excl. GST
₹524.76 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 850 per reel
SMC5K30CA-M3/H
₹444.71 for 1 + GST
Specifications
- Clamping Voltage
- 48.4V
- Operating Temperature
- -55℃~+175℃
- Peak Pulse Current (Ipp)
- 103A
- Peak Pulse Power Dissipation (Ppp)
- 5kW
- Number of Channels
- 1
- Voltage - Breakdown
- 33.3V
- type
- TVS
- Reverse Leakage Current (Ir)
- 1uA
- Polarity
- Bidirectional
- Reverse Stand-Off Voltage (Vrwm)
- 30V
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 850 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.388 g
Overview
Applications
- Use in sensitive electronics protection against voltage transients induced by inductive load switching and lighting on ICs, MOSFET, signal lines of sensor units for consumer, computer, industrial, and telecommunication.
Key features
- Bidirectional
- Peak pulse power: - 5000 W (10/1000 μs) - 40 kW (8/20 μs)
- Excellent clamping capability
- Very fast response time
- Low incremental surge resistance
- Meets MSL level 1, per J-STD-020, LF maximum peak of 260 °C
- UL recognition for safety 497B with file number E136766
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | 5.0SMLJ30CA-TP#C725421MCC · DO-214AB(SMC) | MCC | DO-214AB(SMC) | 3,000 | ₹215.57 · 3,000 in stock | View |
 | 5.0SMDJ30CA#C2990403Liown · SMC(DO-214AB) | Liown | SMC(DO-214AB) | 7,413 | ₹54.60 · 7,413 in stock | View |
 | 5.0SMDJ30CA#C42371730R+O · SMC(DO-214AB) | R+O | SMC(DO-214AB) | 8,059 | ₹64.44 · 8,059 in stock | View |
 | 5.0SMDJ30CA/TR13#C522688Brightking · SMC(DO-214AB) | Brightking | SMC(DO-214AB) | 13,440 | ₹56.72 · 13,440 in stock | View |
 | 5.0SMDJ30CA#C720181Littelfuse · DO-214AB | Littelfuse | DO-214AB | 2,180 | ₹162.90 · 2,180 in stock | View |
