DIODESDatasheet (PDF)

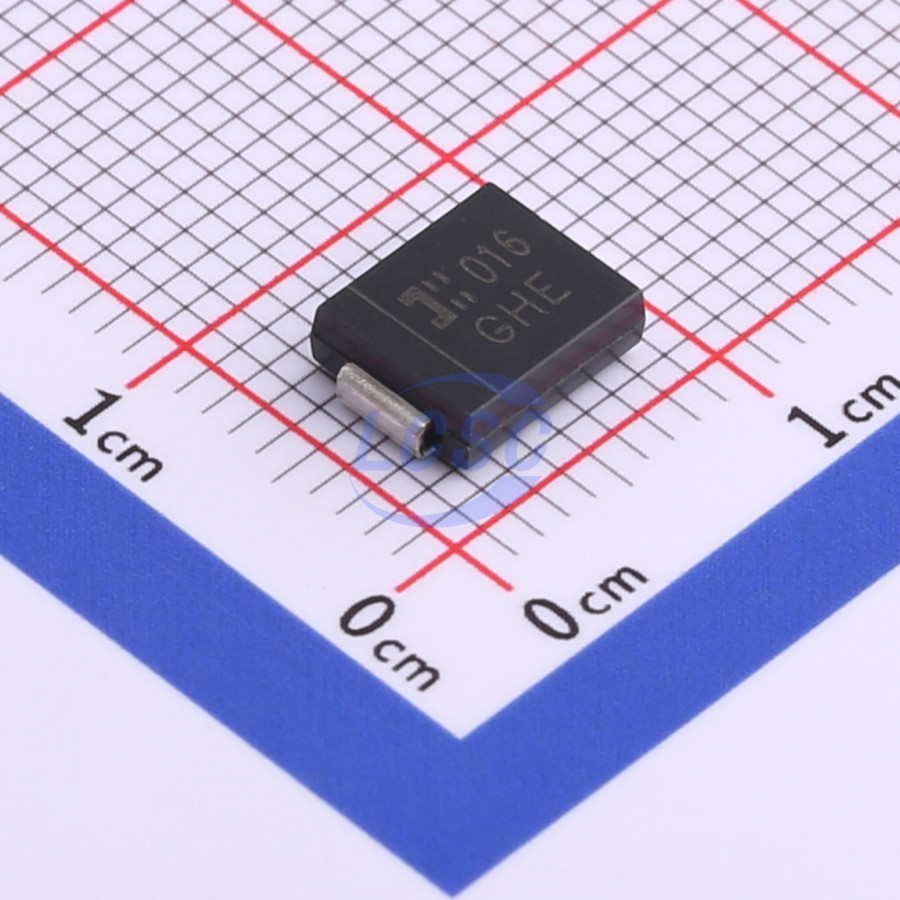

SMCJ110A-13-F
275VC Clamp 5.5A Ipp TVS DIODE SMC
SMCROHS3 CompliantActive
TVS DIODE 110VWM 275VC SMC
- Manufacturer
- DIODES
- Manufacturer part #
- SMCJ110A-13-F
- Store part #
- C135122
- Package / case
- SMC
- Category
- TVS Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
440 in stock
#C135122
Stock & price checked 9 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹15.92 | ₹79.60 |
| 50+ | ₹15.57 | ₹778.50 |
| 150+ | ₹15.33 | ₹2,299.50 |
| 500+ | ₹15.11 | ₹7,555.00 |
5 × ₹15.92
₹79.60
excl. GST
₹93.93 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
SMCJ110A-13-F
₹79.60 for 5 + GST
Specifications
- Clamping Voltage
- 275V
- Operating Temperature
- -55℃~+150℃
- Peak Pulse Current (Ipp)
- 5.5A
- Peak Pulse Power Dissipation (Ppp)
- 1.5kW@8/20us
- Number of Channels
- 1
- Voltage - Breakdown
- 135V
- type
- TVS
- Polarity
- Unidirectional
- Reverse Leakage Current (Ir)
- 5uA
- Reverse Stand-Off Voltage (Vrwm)
- 110V
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.359 g
Overview
Key features
- 1500W peak pulse power dissipation
- 5.0V to 200V breakdown voltage
- Glass passivated die construction
- Unidirectional and bidirectional versions available
- Excellent clamping capability
- Fast response time
- Lead-free finish; RoHS compliant
- Halogen and antimony free. "Green" device
