DIODESDatasheet (PDF)

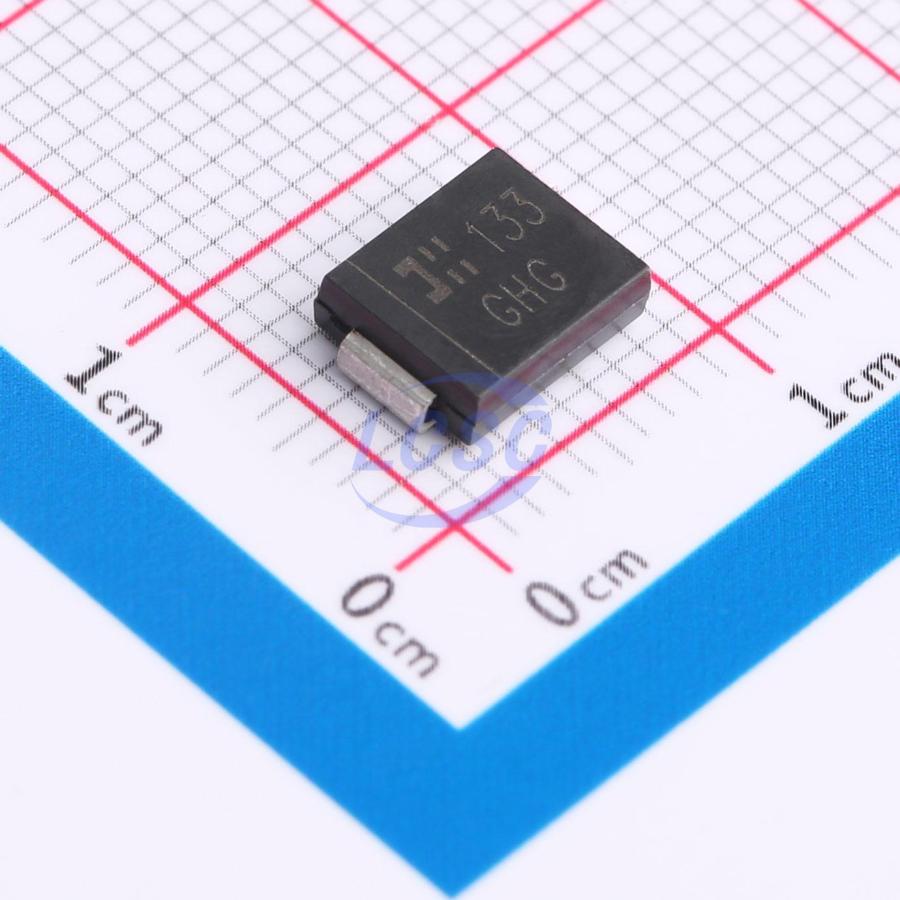

SMCJ120A-13-F
209VC Clamp 7.2A Ipp TVS DIODE SMC
SMCROHS3 CompliantActive
TVS DIODE 120VWM 209VC SMC
- Manufacturer
- DIODES
- Manufacturer part #
- SMCJ120A-13-F
- Store part #
- C135126
- Package / case
- SMC
- Category
- TVS Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
38 in stock
#C135126
Stock & price checked 9 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹177.97 | ₹177.97 |
| 10+ | ₹175.62 | ₹1,756.20 |
| 30+ | ₹174.11 | ₹5,223.30 |
| 100+ | ₹172.60 | ₹17,260.00 |
1 × ₹177.97
₹177.97
excl. GST
₹210.00 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
SMCJ120A-13-F
₹177.97 for 1 + GST
Specifications
- Clamping Voltage
- 209V
- Operating Temperature
- -55℃~+150℃
- Peak Pulse Current (Ipp)
- 7.2A
- Peak Pulse Power Dissipation (Ppp)
- 1.5kW@8/20us
- Number of Channels
- 1
- Voltage - Breakdown
- 147V
- type
- TVS
- Reverse Leakage Current (Ir)
- 5uA
- Polarity
- Unidirectional
- Reverse Stand-Off Voltage (Vrwm)
- 120V
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.358 g
Overview
Key features
- 1500W peak pulse power dissipation
- 5.0V to 200V breakdown voltage
- Glass passivated die construction
- Unidirectional and bidirectional versions available
- Excellent clamping capability
- Fast response time
- Lead-free finish; RoHS compliant
- Halogen and antimony free. "Green" device
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | SMCJ120A#C53260924TECH PUBLIC · SMC | TECH PUBLIC | SMC | 5,895 | ₹13.40 · 5,895 in stock | View |
 | SMCJ120A#C5161489ZHIDE · DO-214AB(SMC) | ZHIDE | DO-214AB(SMC) | 2,935 | ₹21.90 · 2,935 in stock | View |
 | SMCJ120A-E3/57T#C1975269VISHAY · DO-214AB(SMCJ) | VISHAY | DO-214AB(SMCJ) | 102 | ₹129.40 · 102 in stock | View |
 | SMCJ120A#C4154637TWGMC · DO-214AB(SMC) | TWGMC | DO-214AB(SMC) | 1,205 | ₹11.80 · 1,205 in stock | View |
 | SMCJ120A#C52195285R+O · SMC | R+O | SMC | 845 | ₹19.62 · 845 in stock | View |
