RUILONDatasheet (PDF)

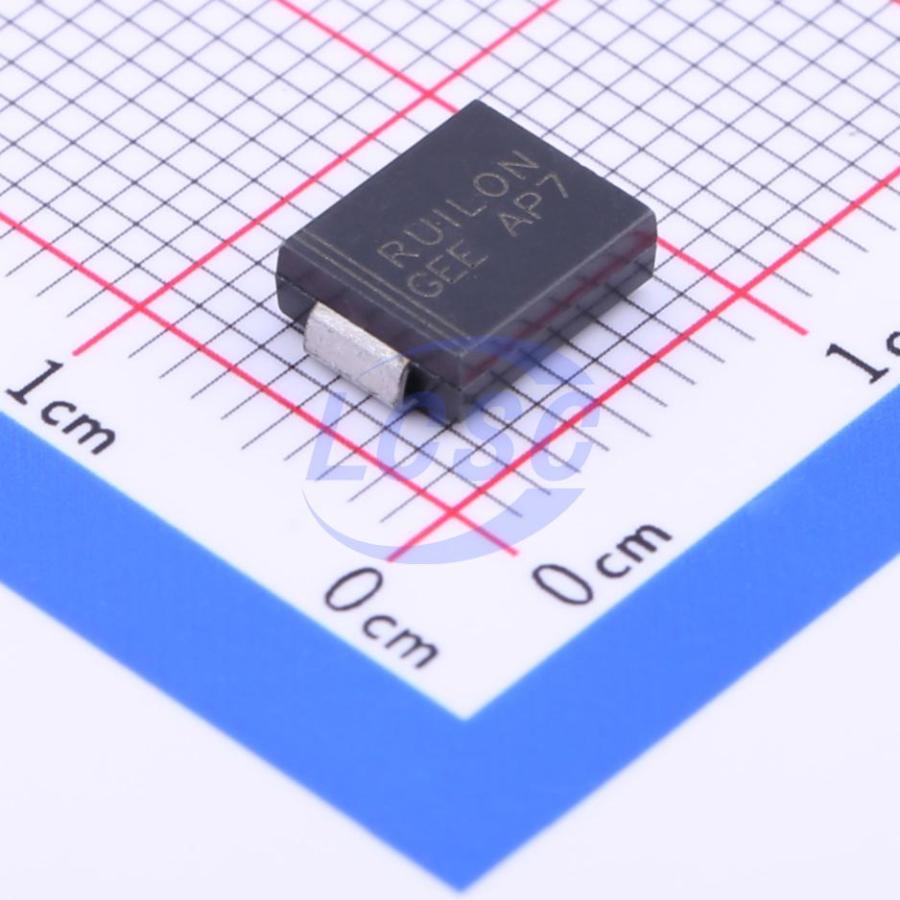

SMCJ12A
19.9VC Clamp 75.4A@10/1000us Ipp TVS DIODE DO-214AB(SMC)
DO-214AB(SMC)ROHS CompliantActive
TVS DIODE 12VWM 19.9VC DO-214AB(SMC)
- Manufacturer
- RUILON
- Manufacturer part #
- SMCJ12A
- Store part #
- C33269
- Package / case
- DO-214AB(SMC)
- Category
- TVS Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,120 in stock
#C33269
Stock & price checked 14 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹31.00 | ₹155.00 |
| 50+ | ₹24.42 | ₹1,221.00 |
| 150+ | ₹21.60 | ₹3,240.00 |
| 500+ | ₹17.12 | ₹8,560.00 |
| 2,500+ | ₹15.55 | ₹38,875.00 |
| 5,000+ | ₹14.61 | ₹73,050.00 |
5 × ₹31.00
₹155.00
excl. GST
₹182.90 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
SMCJ12A
₹155.00 for 5 + GST
Specifications
- Clamping Voltage
- 19.9V
- Operating Temperature
- -55℃~+150℃
- Peak Pulse Current (Ipp)
- 75.4A@10/1000us
- Peak Pulse Power Dissipation (Ppp)
- 1.5kW@10/1000us
- Number of Channels
- 1
- Voltage - Breakdown
- 13.3V
- type
- TVS
- Polarity
- Unidirectional
- Reverse Leakage Current (Ir)
- 5uA
- Reverse Stand-Off Voltage (Vrwm)
- 12V
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.398 g
Overview
Applications
- TVS devices are ideal for the protection of I/O interfaces, VCC bus and other vulnerable circuits used in telecom, computer, industrial and consumer electronic applications.
Key features
- Halogen-free
- Rohs compliant
- Typical maximum temperature coefficient
- Glass passivated Chip junction in DO-214AB package
- 1500W peak pulse capadility at 10x1000 μs waveform, repetition rate (duty cycles): 0.01%
- Fast response time: typically less than 1.0 ps from 0 Volts to BV min
- Excellent clamping capability
- Low incremental surge resistance
- Typical IR less than 5μA above 12V
- High temperature soldering guaranteed: 260°C/40 seconds / 0.375” (9.5mm) lead length, 5lbs. (2.3kg) tension
- Plastic package has underwriters laboratory flammability classification 94v-0
