JSCJDatasheet (PDF)

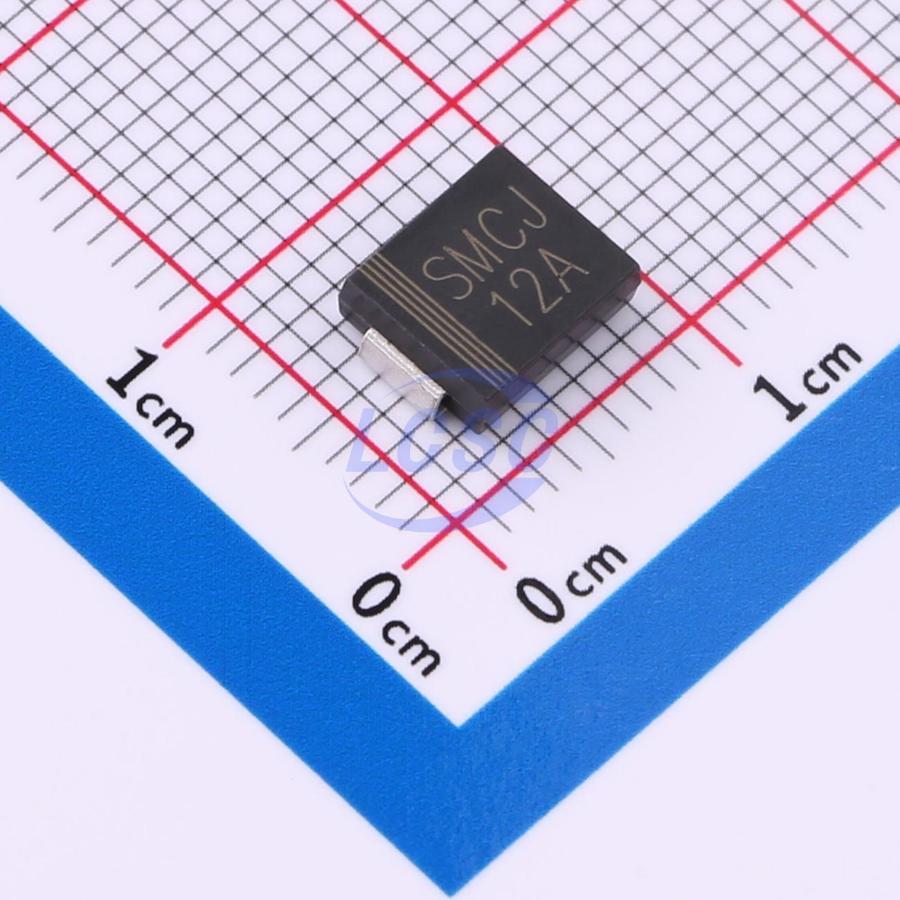

SMCJ12A
19.9VC Clamp 75.4A Ipp TVS DIODE SMCG
SMCGROHS CompliantActive
TVS DIODE 12VWM 19.9VC SMCG
- Manufacturer
- JSCJ
- Manufacturer part #
- SMCJ12A
- Store part #
- C5294193
- Package / case
- SMCG
- Category
- TVS Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
635 in stock
#C5294193
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹20.26 | ₹101.30 |
| 50+ | ₹15.72 | ₹786.00 |
| 150+ | ₹13.77 | ₹2,065.50 |
| 500+ | ₹11.34 | ₹5,670.00 |
| 3,000+ | ₹10.27 | ₹30,810.00 |
| 6,000+ | ₹9.62 | ₹57,720.00 |
5 × ₹20.26
₹101.30
excl. GST
₹119.53 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
SMCJ12A
₹101.30 for 5 + GST
Specifications
- Clamping Voltage
- 19.9V
- Operating Temperature
- -55℃~+150℃
- Peak Pulse Current (Ipp)
- 75.4A
- Peak Pulse Power Dissipation (Ppp)
- 1.5kW@10/1000us
- Number of Channels
- 1
- Voltage - Breakdown
- 13.3V
- type
- TVS
- Polarity
- Unidirectional
- Reverse Leakage Current (Ir)
- 5uA
- Reverse Stand-Off Voltage (Vrwm)
- 12V
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.44 g
Overview
Applications
- Clamping Voltage
Key features
- 1500W VRWM 5.0V - 440V
- Glass passivated chip
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | CJSMCJ12A#C7499190JSCJ · SMCG | JSCJ | SMCG | 2,125 | ₹22.60 · 2,125 in stock | View |
 | CJSMCJ11A#C7499189JSCJ · SMCG | JSCJ | SMCG | 3,000 | ₹16.18 · 3,000 in stock | View |
 | CJSMCJ13A#C7499191JSCJ · SMCG | JSCJ | SMCG | 1,415 | ₹22.61 · 1,415 in stock | View |
 | SMCJ13A#C3036219JSCJ · SMCG | JSCJ | SMCG | 840 | ₹21.84 · 840 in stock | View |
