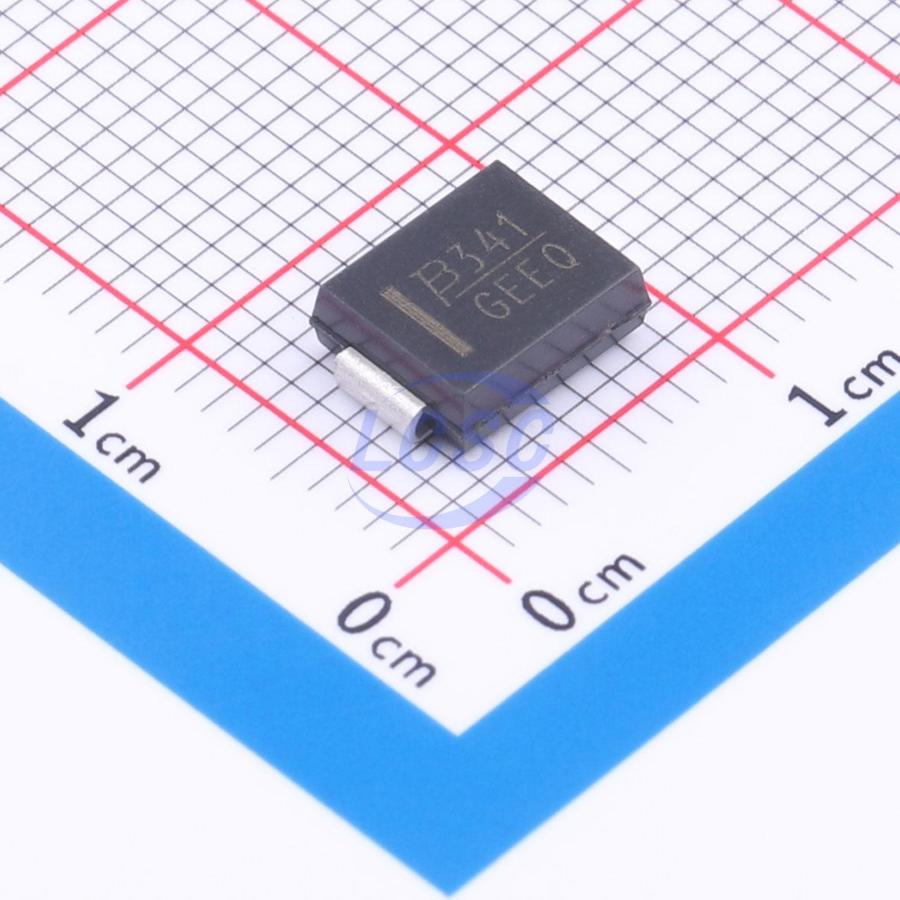

SMCJ12A-Q
25.9VC Clamp 412.5A@8/20us Ipp TVS DIODE SMC(DO-214AB)
- Manufacturer
- BOURNS
- Manufacturer part #
- SMCJ12A-Q
- Store part #
- C1974292
- Package / case
- SMC(DO-214AB)
- Category
- TVS Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
100 in stock
#C1974292
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹192.22 | ₹192.22 |
| 10+ | ₹159.86 | ₹1,598.60 |
| 30+ | ₹142.05 | ₹4,261.50 |
| 100+ | ₹121.85 | ₹12,185.00 |
1 × ₹192.22
₹192.22
excl. GST
₹226.82 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
SMCJ12A-Q
₹192.22 for 1 + GST
Specifications
- Clamping Voltage
- 25.9V
- Operating Temperature
- -55℃~+150℃
- Peak Pulse Current (Ipp)
- 412.5A@8/20us
- Peak Pulse Power Dissipation (Ppp)
- 1.5kW
- Number of Channels
- 1
- Voltage - Breakdown
- 14.7V
- type
- TVS
- Polarity
- Unidirectional
- Reverse Leakage Current (Ir)
- 1uA
- Reverse Stand-Off Voltage (Vrwm)
- 12V
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.333 g
Overview
Bourns offers Transient Voltage Suppressor Diodes for surge and ESD protection applications, in compact chip package DO-214AB (SMC) size format. The Transient Voltage Suppressor series offers a choice of Working Peak Reverse Voltage from 5 V up to 120 V. Typical fast response times are less than 1.0 picosecond from 0 V to Breakdown Voltage. Chip Diodes conform to JEDEC standards, are easy to handle with standard pick and place equipment and their flat configuration minimizes roll away.
Applications
- Protection of power buses
- Protection of I/O interfaces
- Overvoltage transient protection
- Entertainment applications
- Comfort applications
- Telecom, computer, industrial and consumer electronics applications
Key features
- Surface Mount SMC package
- Standoff Voltage: 5 to 120 volts
- Power Dissipation: 1500 watts
- RoHS compliant
- AEC-Q101 compliant
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | SMCJ12A-TR#C1981751ST · SMC | ST | SMC | 3 | ₹321.77 · 3 in stock | View |
 | SM15T15A-E3/57T#C1976346VISHAY · SMC(DO-214AB) | VISHAY | SMC(DO-214AB) | 33 | ₹89.26 · 33 in stock | View |
 | SMCJ13A#C43060567RUILON · DO-214AB(SMC) | RUILON | DO-214AB(SMC) | 5,100 | ₹23.18 · 5,100 in stock | View |
 | 1.5SMC15A/TR7#C522065Brightking · SMC(DO-214AB) | Brightking | SMC(DO-214AB) | 570 | ₹25.07 · 570 in stock | View |
 | SMCJ13A-E3/57T#C1976747VISHAY · SMC(DO-214AB) | VISHAY | SMC(DO-214AB) | 410 | ₹49.40 · 410 in stock | View |
