DIODESDatasheet (PDF)

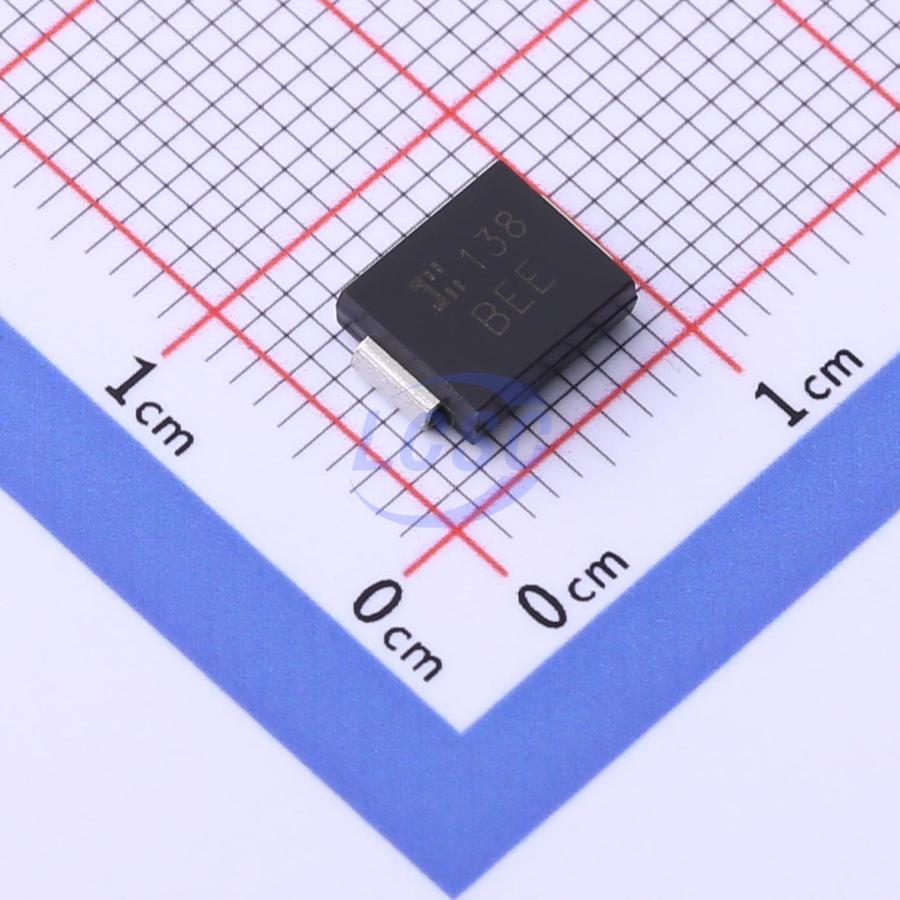

SMCJ12CA-13-F
19.9VC Clamp 75.3A Ipp TVS DIODE SMC
SMCROHS CompliantActive
TVS DIODE 12VWM 19.9VC SMC
- Manufacturer
- DIODES
- Manufacturer part #
- SMCJ12CA-13-F
- Store part #
- C135129
- Package / case
- SMC
- Category
- TVS Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
12 in stock
#C135129
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹53.95 | ₹53.95 |
| 10+ | ₹53.32 | ₹533.20 |
| 30+ | ₹52.88 | ₹1,586.40 |
| 100+ | ₹52.23 | ₹5,223.00 |
1 × ₹53.95
₹53.95
excl. GST
₹63.66 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
SMCJ12CA-13-F
₹53.95 for 1 + GST
Specifications
- Clamping Voltage
- 19.9V
- Operating Temperature
- -55℃~+150℃
- Peak Pulse Current (Ipp)
- 75.3A
- Peak Pulse Power Dissipation (Ppp)
- 1.5kW
- Number of Channels
- 1
- Voltage - Breakdown
- 14.7V
- type
- TVS
- Polarity
- Bidirectional
- Reverse Leakage Current (Ir)
- 5uA
- Reverse Stand-Off Voltage (Vrwm)
- 12V
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.292 g
Overview
Key features
- 1500W peak pulse power dissipation
- 5.0V to 200V breakdown voltage
- Glass passivated die construction
- Unidirectional and bidirectional versions available
- Excellent clamping capability
- Fast response time
- Lead-free finish; RoHS compliant
- Halogen and antimony free. "Green" device
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | SMCJ12CA#C2943874GOODWORK · DO-214AB(SMC) | GOODWORK | DO-214AB(SMC) | 4,373 | ₹13.75 · 4,373 in stock | View |
 | SMCJ12CA#C492908SMC · DO-214AB(SMC) | SMC | DO-214AB(SMC) | 1,400 | ₹43.01 · 1,400 in stock | View |
 | SMCJ12CA#C3720600BOURNS · DO-214AB(SMC) | BOURNS | DO-214AB(SMC) | 8 | ₹56.39 · 8 in stock | View |
 | SMCJ12CA#C39831915RUILON · DO-214AB(SMC) | RUILON | DO-214AB(SMC) | 2,055 | ₹42.48 · 2,055 in stock | View |
 | SMCJ12CA#C78808Littelfuse · DO-214AB | Littelfuse | DO-214AB | 4,485 | ₹48.96 · 4,485 in stock | View |
