DIODESDatasheet (PDF)

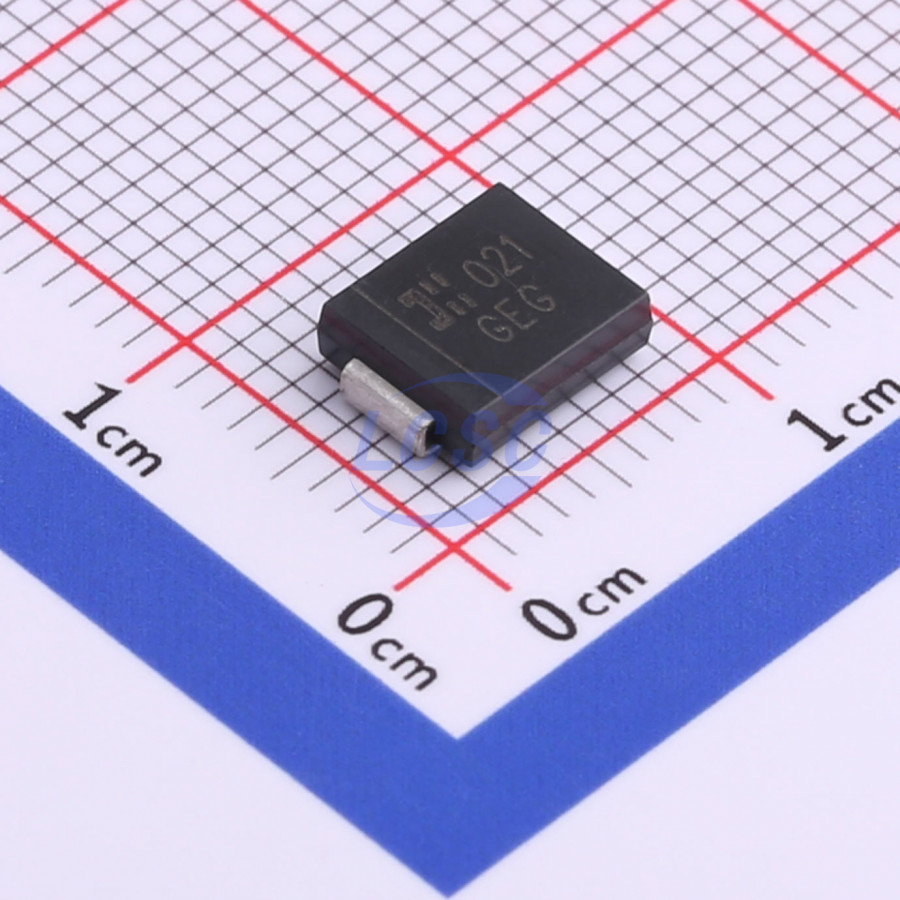

SMCJ13A-13-F
21.5VC Clamp 69.7A Ipp TVS DIODE SMC
SMCROHS3 CompliantActive
TVS DIODE 13VWM 21.5VC SMC
- Manufacturer
- DIODES
- Manufacturer part #
- SMCJ13A-13-F
- Store part #
- C135132
- Package / case
- SMC
- Category
- TVS Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
156 in stock
#C135132
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹65.83 | ₹65.83 |
| 10+ | ₹53.24 | ₹532.40 |
| 30+ | ₹47.59 | ₹1,427.70 |
| 100+ | ₹40.85 | ₹4,085.00 |
| 500+ | ₹37.81 | ₹18,905.00 |
| 1,000+ | ₹35.85 | ₹35,850.00 |
1 × ₹65.83
₹65.83
excl. GST
₹77.68 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
SMCJ13A-13-F
₹65.83 for 1 + GST
Specifications
- Clamping Voltage
- 21.5V
- Operating Temperature
- -55℃~+150℃
- Peak Pulse Current (Ipp)
- 69.7A
- Peak Pulse Power Dissipation (Ppp)
- 1.5kW
- Number of Channels
- 1
- Voltage - Breakdown
- 15.9V
- type
- TVS
- Polarity
- Unidirectional
- Reverse Leakage Current (Ir)
- 5uA
- Reverse Stand-Off Voltage (Vrwm)
- 13V
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.357 g
Overview
Key features
- 1500W peak pulse power dissipation
- 5.0V to 200V breakdown voltage
- Glass passivated die construction
- Unidirectional and bidirectional versions available
- Excellent clamping capability
- Fast response time
- Lead-free finish; RoHS compliant
- Halogen and antimony free. "Green" device
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
| SMCJ13A#C53260902TECH PUBLIC · SMC | TECH PUBLIC | SMC | 5,925 | ₹13.27 · 5,925 in stock | View | |
 | SMCJ13A#C5155882Shikues · SMC | Shikues | SMC | 3,525 | ₹14.08 · 3,525 in stock | View |
 | SZ1SMC13AT3G#C1847843Littelfuse · SMC | Littelfuse | SMC | 100 | ₹115.60 · 100 in stock | View |
 | SMCJ13A#C4154607TWGMC · DO-214AB(SMC) | TWGMC | DO-214AB(SMC) | 2,100 | ₹13.40 · 2,100 in stock | View |
 | SMCJ13A#C42394421R+O · SMC(DO-214AB) | R+O | SMC(DO-214AB) | 6,530 | ₹18.16 · 6,530 in stock | View |
